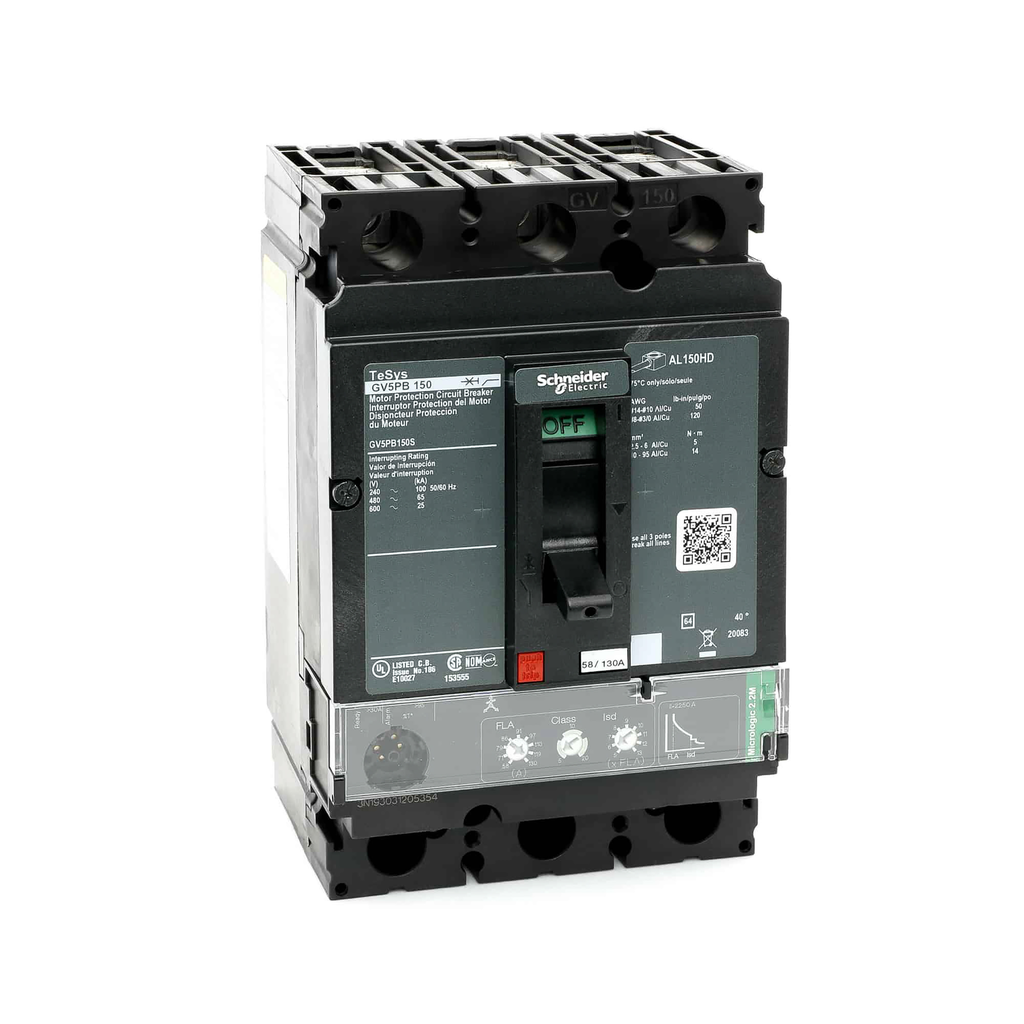

GV5PB150S – Motor circuit protector, TeSys GV5, 3 pole, 600VAC, max 150A rated, 25kA, unit mount
GV5PB150S
Motor circuit protector, TeSys GV5, 3 pole, 600VAC, max 150A rated, 25kA, unit mount
Specifications
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP2206028EN
Pvc Free Yes
California Proposition 65 WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile ENVEOLI2206028EN
Eu Rohs Directive Compliant with Exemptions
Country of Origin United States
Width 4.12 in
Height 6.4 in
Trip Unit Technology electronicMicroLogic 2.2 M,
Line Rated Current 150 A
[Ue] Rated Operational Voltage 600 V AC
Phase Failure Sensitivity yes
Product Or Component Type motor protection circuit breaker
Product Name TeSys GV5
Breaking Capacity
  • 100 kA 240 V AC
  • 65 kA 480 V AC
  • 25 kA 600 V AC
Thermal Protection Adjustment Range 58-130 A
Poles Description 3P
Breaking Capacity Code S
Height 6.4 in
Tightening Torque 5-5 N.m 2.5-95 mm² (AWG 14...AWG 3/0)
Product Certifications
  • UL Listed
  • CSA
Electrical Connection
  • lugs, load
  • lugs, line
Mounting Mode unit mount
Awg Gauge AWG 14...AWG 3/0 aluminium/copper
Width 4.12 in
Depth 4.36 in
Ambient Air Temperature For Operation 40-40 °C
