GV5PB150N

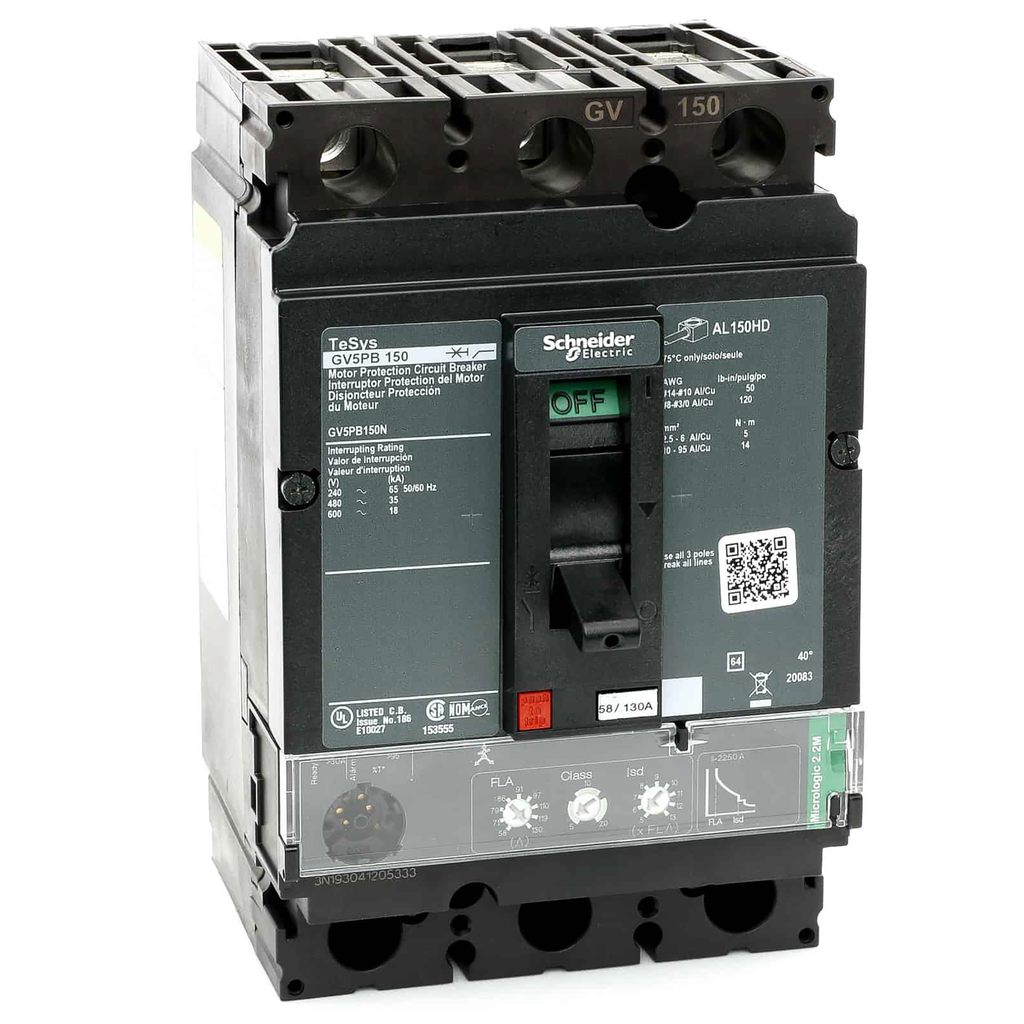

Motor circuit breaker, TeSys GV5, 3P, 150A, 18kA SCCR, thermal magnetic
TeSys GV5 motor protective circuit breakers provide an efficient motor control and protection solution up to 520 amps. This 3 pole motor protective circuit breaker is rated at 150A. The thermal protection adjustable dials have settings of 58A to 130A, a selectable tripping class of 5, 10 or 20, and magnetic protection at 15 In. It has SCCR breaking capacity 18kA at 600Y/347V. This motor protective circuit breaker is 6.40 inches tall, 4.12 inches wide and 4.36 inches deep. This UL489 motor protective circuit breaker is has UL Listed, CSA, IEC, CCC, EAC, and Marine certifications.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Height | 6.4 in |
|---|---|
| Tightening Torque | 5-5 N.m 2.5-95 mm² (AWG 14...AWG 3/0) |
| Product Certifications |
|
| Electrical Connection |
|
| Mounting Mode | unit mount |
| Awg Gauge | AWG 14...AWG 3/0 aluminium/copper |
| Width | 4.12 in |
| Depth | 4.36 in |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2206027EN |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI2206027EN |
| Eu Rohs Directive | Compliant with Exemptions |
| Country of Origin | United States |
| Width | 4.12 in |
| Height | 6.4 in |
| Trip Unit Technology | electronicMicroLogic 2.2 M, |
| Line Rated Current | 150 A |
| [Ue] Rated Operational Voltage | 600 V AC |
| Phase Failure Sensitivity | yes |
| Product Or Component Type | motor protection circuit breaker |
| Product Name | TeSys GV5 |
| Breaking Capacity |
|
| Thermal Protection Adjustment Range | 58-130 A |
| Poles Description | 3P |
| Breaking Capacity Code | N |
| Ambient Air Temperature For Operation | 40-40 °C |
