GV5AP03

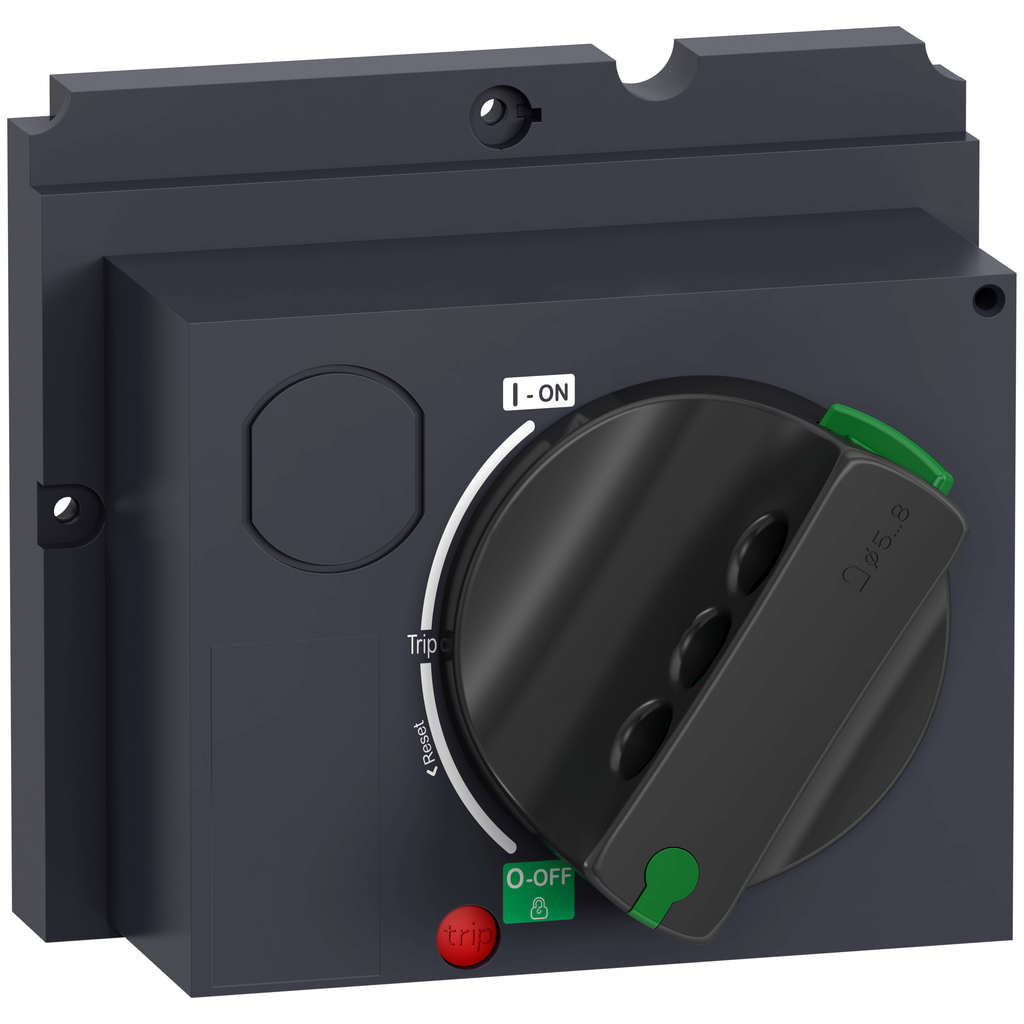

Direct rotary handle, TeSys GV5, black, IP40
TeSys GV direct rotary handle, replacement part for motor circuit breakers GV5P. For main switch usage, it provides a black handle on a black bezel with indication of 3 positions OFF, ON, TRIP. Equipped with a "push to trip" button. Padlockable in OFF position with up to 3 padlocks (to be ordered separately). Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ik Degree Of Protection | IK07 |
|---|---|
| Ip Degree Of Protection | IP40 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2204005EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI2204005EN |
| Eu Rohs Directive | Compliant with Exemptions |
| Rotary Handle Padlocking |
|
| Net Weight | 0.22 kg |
| Country of Origin | India |
| Weight | 0.22 kg |
| Rotary Handle Mounting Style | direct |
| Range Compatibility | TeSys TeSys GV5 motor circuit breaker |
| Handle Front Plate Colour | black |
| Accessory / Separate Part Category | control accessory |
| Handle Colour | black |
| Product Or Component Type | rotary handle |
| Range | TeSys |
| Rotary Handle Mounting Location | front |
| Device Short Name | GV5AP |
