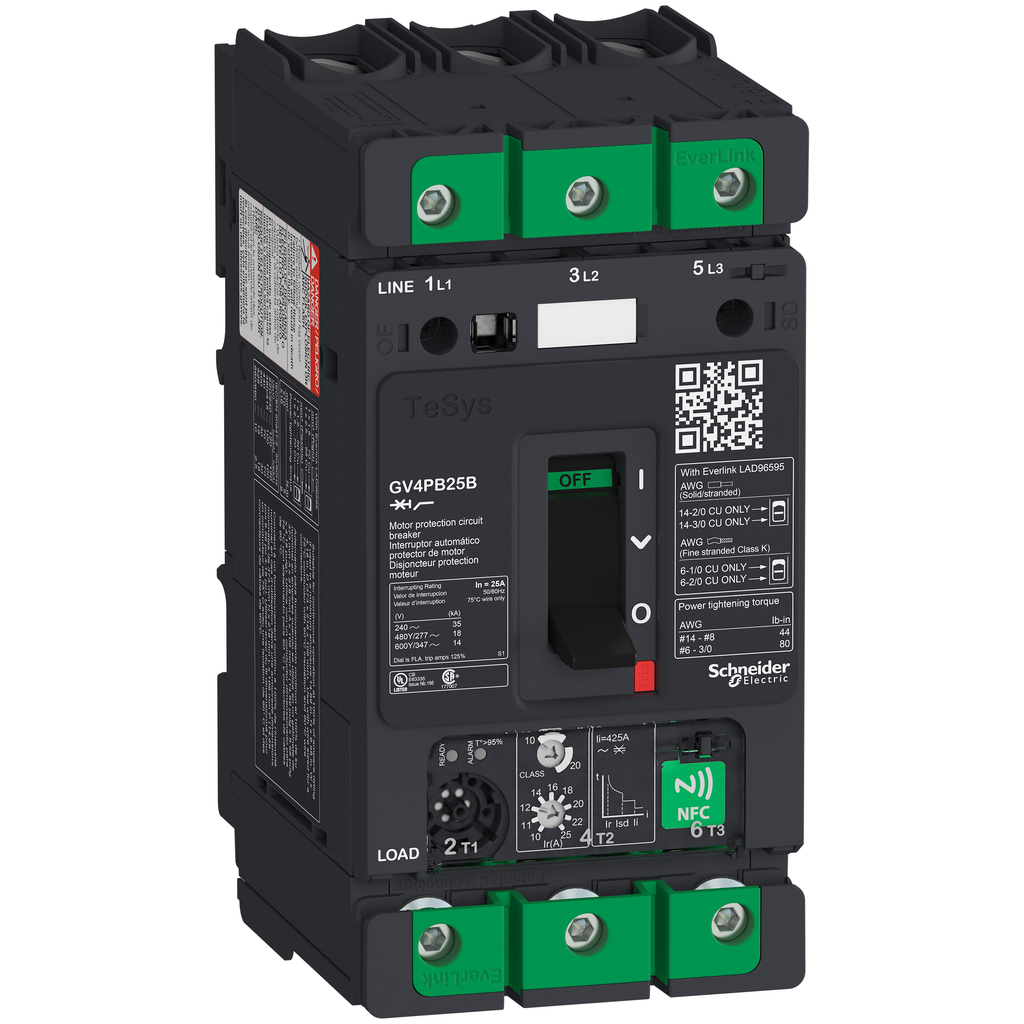

TeSys GV motor circuit breaker, 3 poles (3P), 25A/690V, for protection of 3-phase motors 5.5-11kW@400V. Multifunction circuit breaker UL489 compliant, it provides thermal magnetic protection and advanced motor protection, breaking capacity Icu 25kA@400V, start-stop control by toggle, connection by Everlink BTR screw terminals. Thermal protection adjustable by dials with a setting current Ir in range 10-25A, a selectable tripping class 10 or 20, rated tripping current 125%, magnetic protection at 17 In. Advanced protections are adjustable with a smartphone using wireless NFC and include short time delay protection Isd with a setting range 5-13 Ir, phase unbalance and loss protection, ground fault protection, locked rotor (jam), long start. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). It can be equiped externally with 1 or 2 auxiliary SDx modules in order to have alarming and fault differentiation. Multi standards certified (IEC, UL 489, CSA C22.2 N°5), Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | TeSys GV4 |
---|---|
Product Or Component Type | motor circuit breaker |
Product Name |
|
Range | TeSys Deca |
Device Application | motor protection |
Device Short Name | GV4PB |
Trip Unit Technology |
|
Warranty | 18 months |
Mechanical Robustness |
|
Line Rated Current | 25 A |
[Ue] Rated Operational Voltage |
|
Height | 171 mm |
Phase Failure Sensitivity | yes IEC 60947-4-1 |
Rated Duty | continuous IEC 60947-4-1 |
Magnetic Tripping Current | 425-425 A |
[Ith] Conventional Free Air Thermal Current | 115 A IEC 60947-4-1 |
Maximum Operating Rate | 25 cyc/h |
Operating Position | any position |
Connections - Terminals |
|
Utilisation Category |
|
Net Weight | 1.45 kg |
[Uimp] Rated Impulse Withstand Voltage | 8 kV IEC 60947-2 |
[Ics] Rated Service Short-Circuit Breaking Capacity |
|
Control Type | toggle |
Power Dissipation Per Pole | 4.6 W |
Electrical Durability |
|
Breaking Capacity |
|
Suitability For Isolation | yes IEC 60947-1 |
[Ui] Rated Insulation Voltage | 800 V AC 50/60 Hz IEC 60947-2 |
Tightening Torque |
|
Mechanical Durability | 40000 cycles |
Poles Description | 3P |
Color | Gray RAL 7016) |
Width | 81 mm |
Depth | 116 mm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1704004EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Circularity Profile | ENVEOLI1704004EN |
Eu Rohs Directive | Compliant |
Halogen Content Performance | Halogen free plastic parts product |
Product Certifications |
|
Ik Degree Of Protection | IK07 IEC 62262 |
Ambient Air Temperature For Operation | -25-70 °C |
Standards |
|
Climatic Withstand | IACS E10 |
Pollution Degree | 3 |
Ambient Air Temperature For Storage | -50-85 °C |
Ip Degree Of Protection | IP40 IEC 60529 |
Operating Altitude | 5000 m |
Fire Resistance | 960 °C IEC 60695-2-11 |
