GV4AE11 – Auxiliary contact, TeSys GV4, 690VAC, 1 NO/NC
GV4AE11

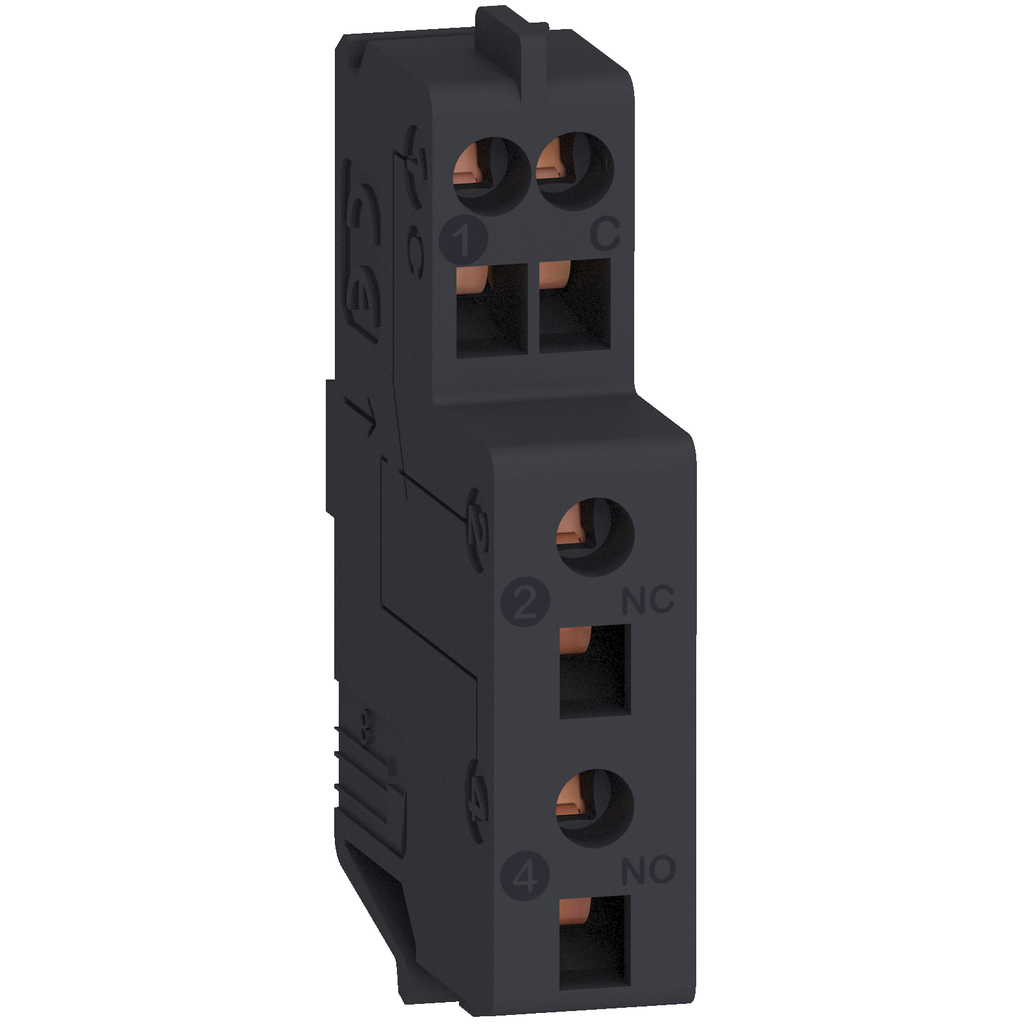

Auxiliary contact, TeSys GV4, 690VAC, 1 NO/NC

TeSys GV4 auxiliary contact block, for motor circuit breakers GV4. 1C/O contact, it performs Open/Close OF function or Trip alarm SD function, depending of its location in the circuit breaker. Rated for operation up to 5A/690V AC and 5A/250V DC. To be plugged inside the circuit breaker, in the right-hand cavity for OF function, in the left-hand cavity for SD function, connection by spring terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Rated Power In W
  • DC-12 120 W 24 V IEC 60947-5-1
  • DC-12 120 W 48 V IEC 60947-5-1
  • DC-12 66 W 110 V IEC 60947-5-1
  • DC-12 75 W 250 V IEC 60947-5-1
Minimum Switching Current 2 mA
Rated Power In Va
  • 120 VA AC-12 24 V IEC 60947-5-1
  • 240 VA AC-12 48 V IEC 60947-5-1
  • 635 VA AC-12 110/127 V IEC 60947-5-1
  • 1200 VA AC-12 230/240 V IEC 60947-5-1
  • 2200 VA AC-12 380/440 V IEC 60947-5-1
  • 3450 VA AC-12 660/690 V IEC 60947-5-1
Associated Fuse Rating 5 A gG at 690 V conforming to IEC 60947-5-1
Connections - Terminals spring terminals 1 0.5-1.5 mm² - cable stiffness: flexible without cable end
Wire Stripping Length 8 mm
[Ui] Rated Insulation Voltage 690 V IEC 60947-1
[Ie] Rated Operational Current
  • 5 A <= 690 V AC-12 IEC 60947-5-1
  • 0.3 A 250 V DC-12 IEC 60947-5-1
  • 2.5 A <= 24 V DC-12 IEC 60947-5-1
  • 1.2 A 48 V DC-12 IEC 60947-5-1
  • 0.35 A 110/127 V DC-12 IEC 60947-5-1
  • 0.05 A 250 V DC-12 IEC 60947-5-1
  • 1 A <= 24 V DC-12 IEC 60947-5-1
  • 0.2 A 48 V DC-12 IEC 60947-5-1
  • 0.05 A 110/127 V DC-12 IEC 60947-5-1
  • 0.03 A 250 V DC-12 IEC 60947-5-1
  • 5 A <= 48 V AC-15 IEC 60947-5-1
  • 4 A 110/127 V AC-15 IEC 60947-5-1
  • 3 A 220/240 V AC-15 IEC 60947-5-1
  • 2.5 A 380...440 V AC-15 IEC 60947-5-1
  • 0.11 A 660/690 V AC-15 IEC 60947-5-1
  • 5 A <= 24 V DC-12 IEC 60947-5-1
  • 2.5 A 48 V DC-12 IEC 60947-5-1
  • 0.6 A 110/127 V DC-12 IEC 60947-5-1
Minimum Switching Voltage 17 V
Mechanical Durability 40000 cycles
Quantity Per Set set of 1
Country of Origin China
Length 8 mm
Auxiliary Contact Composition 1 NO/NC
[Ue] Rated Operational Voltage <= 690 V
Range Compatibility
  • TeSys TeSys GV4
  • TeSys TeSys BV4
[Ith] Conventional Free Air Thermal Current
  • 5 A IEC 60947-5-1
  • 5 A CSA C22.2 No 14
  • 5 A UL 508
Product Or Component Type auxiliary contact
Range TeSys
Mounting Mode internal mounting
Device Application signalling
Device Short Name GV4AE
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1704004EN
Sustainable Offer Status Green Premium product
Toxic Heavy Metal Free Yes
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation Pro-active China RoHS declaration (out of China RoHS legal scope)
Circularity Profile ENVEOLI1704004EN
Eu Rohs Directive Compliant
