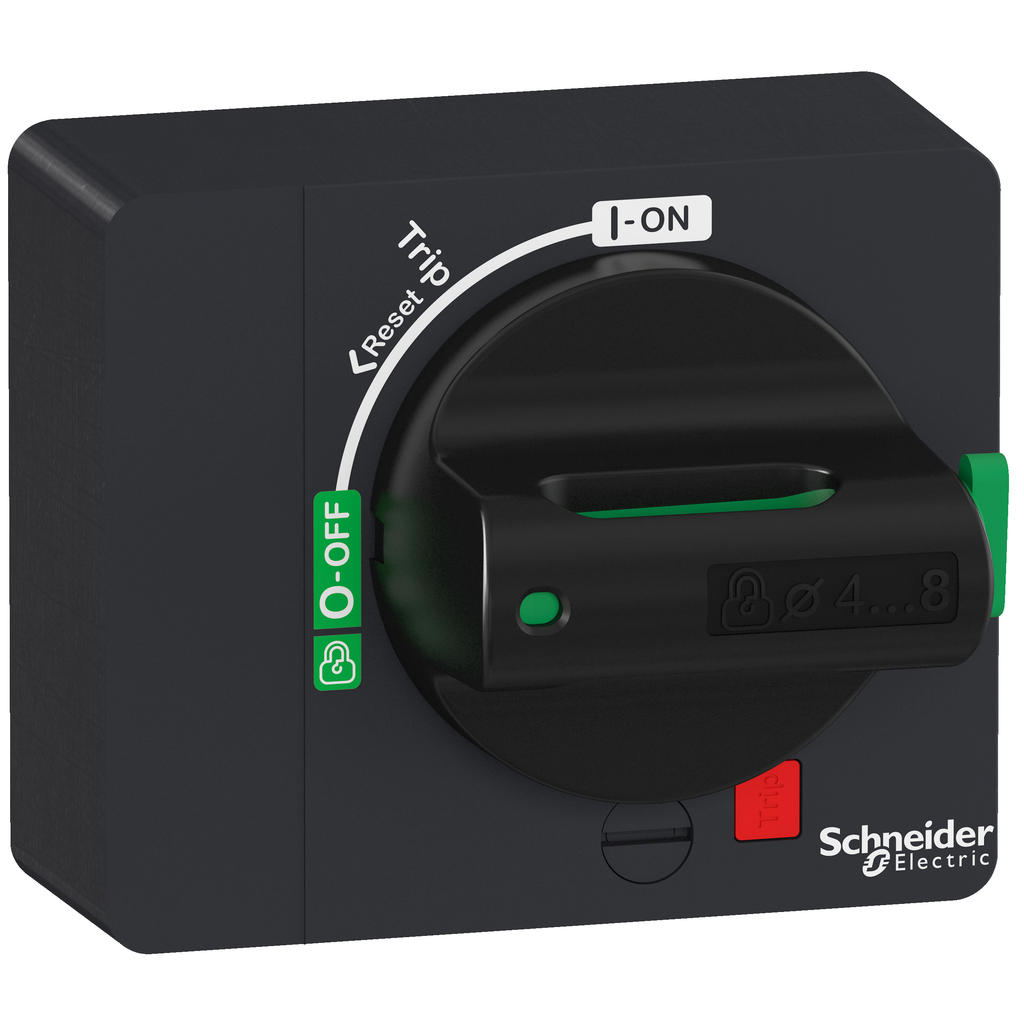

GV4ADN01 - Rotary handle, TeSys GV4, direct, fixed, black, IP54

GV4ADN01

Rotary handle, TeSys GV4, direct, fixed, black, IP54

TeSys GV direct rotary handle, for motor circuit breakers GV4PE, LE, PEM, PB or replacement part for GV4P, GV4L handle. For main switch usage, it provides a black handle on a black bezel with indication of 3 positions OFF, ON, TRIP. Equipped with a "push to trip" button. Padlockable in OFF or ON position with up to 3 padlocks (to be ordered separately). Locking in ON position does not prevent the circuit breaker from tripping (unlocking is required for fault reset). Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1704004EN
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI1704004EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Locking Options Description	1 to 3 padlocks Ø 4 to Ø 8
Range Compatibility	TeSys TeSys GV4 TeSys TeSys BV4
Mounting Location	front side
Mounting Mode	fixed
Country of Origin	Hungary
Rotary Handle Mounting Style	direct
Handle Front Plate Colour	black
Accessory / Separate Part Category	control accessory
Handle Colour	black
Product Or Component Type	rotary handle
Marking	OFF - Trip - ON
Range	TeSys
Rotary Handle Padlocking	1 to 3 padlocks padlock in ON position padlock in OFF position
Ip Degree Of Protection	IP40
