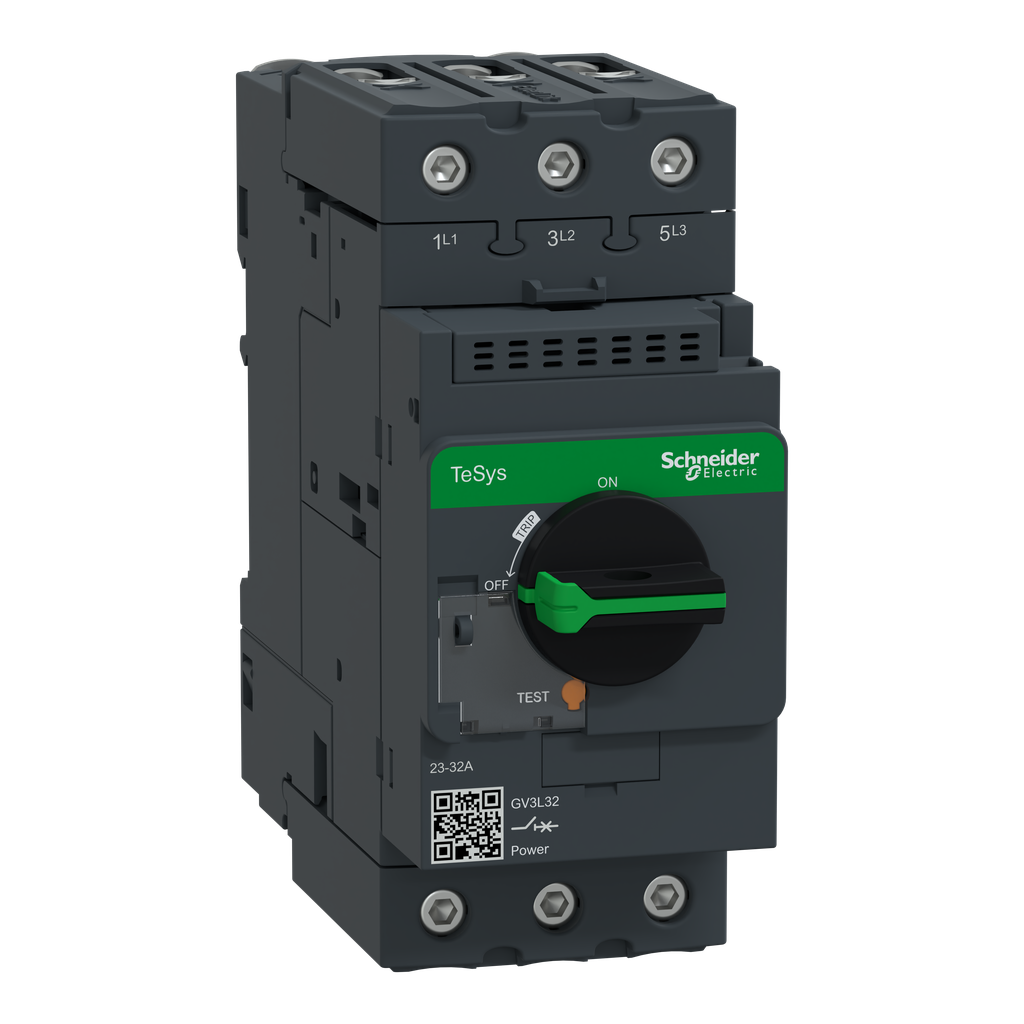

GV3L32 - TeSys Deca Manual Starter and Protector, magnetic circuit protector, rotary handle, 32 A, EverLink BTR connectors

GV3L32

TeSys Deca Manual Starter and Protector, magnetic circuit protector, rotary handle, 32 A, EverLink BTR connectors

TeSys GV motor circuit breaker, 3 poles (3P), 32A/690V, for 3-phase motor applications 15kW@400V. It provides a magnetic protection with a tripping level at 14xIn, high breaking capacity Icu 100kA@400V. Connection by Everlink BTR screw terminals. Start-stop control by rotary handle guaranteed for 50 000 cycles AC-3. To complete motor protection, use it in association with a thermal overload relay LRD332 (to be ordered separately). Multi standards certified (IEC, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	CCC UL CSA EAC LROS (Lloyds register of shipping) BV ABS DNV-GL UKCA
Mechanical Robustness	shocks 15 Gn for 11 ms contactor open shocks 30 Gn for 11 ms contactor closed vibrations 4 Gn, 5...300 Hz
Ambient Air Temperature For Operation	-20-60 °C
Climatic Withstand	IACS E10
Ambient Air Temperature For Storage	-40-80 °C
Ip Degree Of Protection	IP20 IEC 60529
Operating Altitude	9842.52 ft (3000 m)
Fire Resistance	960 °C IEC 60695-2-11
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP060901
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI060901
Eu Rohs Directive	Compliant with Exemptions
Line Rated Current	32 A
[Ue] Rated Operational Voltage	690 V AC 50/60 Hz IEC 60947-2
Height	132 mm
Network Type	AC
Magnetic Tripping Current	448-448 A
Motor Power Kw	15-15 kW 400/415 V AC 50/60 Hz 18.5-18.5 kW 500 V AC 50/60 Hz 22-22 kW 690 V AC 50/60 Hz
Utilisation Category	category A IEC 60947-2
Net Weight	0.96 kg
Fixing Mode	35 mm symmetrical DIN rail clipped panel screwed with 3 x M4 screws)
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947-2
[Ics] Rated Service Short-Circuit Breaking Capacity	100 % 230/240 V AC 50/60 Hz 100 % 400/415 V AC 50/60 Hz 100 % 440 V AC 50/60 Hz 50 % 500 V AC 50/60 Hz 50 % 690 V AC 50/60 Hz
Control Type	rotary handle
Power Dissipation Per Pole	8 W
Electrical Durability	50000 cycles AC-3 415 V In
[Ui] Rated Insulation Voltage	690 V AC 50/60 Hz IEC 60947-2
Breaking Capacity	100 kA Icu 230/240 V AC 50/60 Hz 100 kA Icu 400/415 V AC 50/60 Hz 50 kA Icu 440 V AC 50/60 Hz 12 kA Icu 500 V AC 50/60 Hz 6 kA Icu 690 V AC 50/60 Hz
Suitability For Isolation	yes IEC 60947-1
Tightening Torque	5 N.m screw clamp terminal
Mechanical Durability	50000 cycles
Poles Description	3P
Color	dark grey
Width	55 mm
Depth	136 mm
Network Frequency	50/60 Hz
Country of Origin	France
Width	55 mm
Height	132 mm
Weight	0.96 kg
Product Or Component Type	motor circuit breaker
Product Name	TeSys GV3 TeSys Deca
Range	TeSys Deca
Device Application	motor protection
Device Short Name	GV3L
Trip Unit Technology	magnetic

TeSys Deca Manual Starter and Protector, magnetic circuit protector, rotary handle, 32 A, EverLink BTR connectors

Specifications
