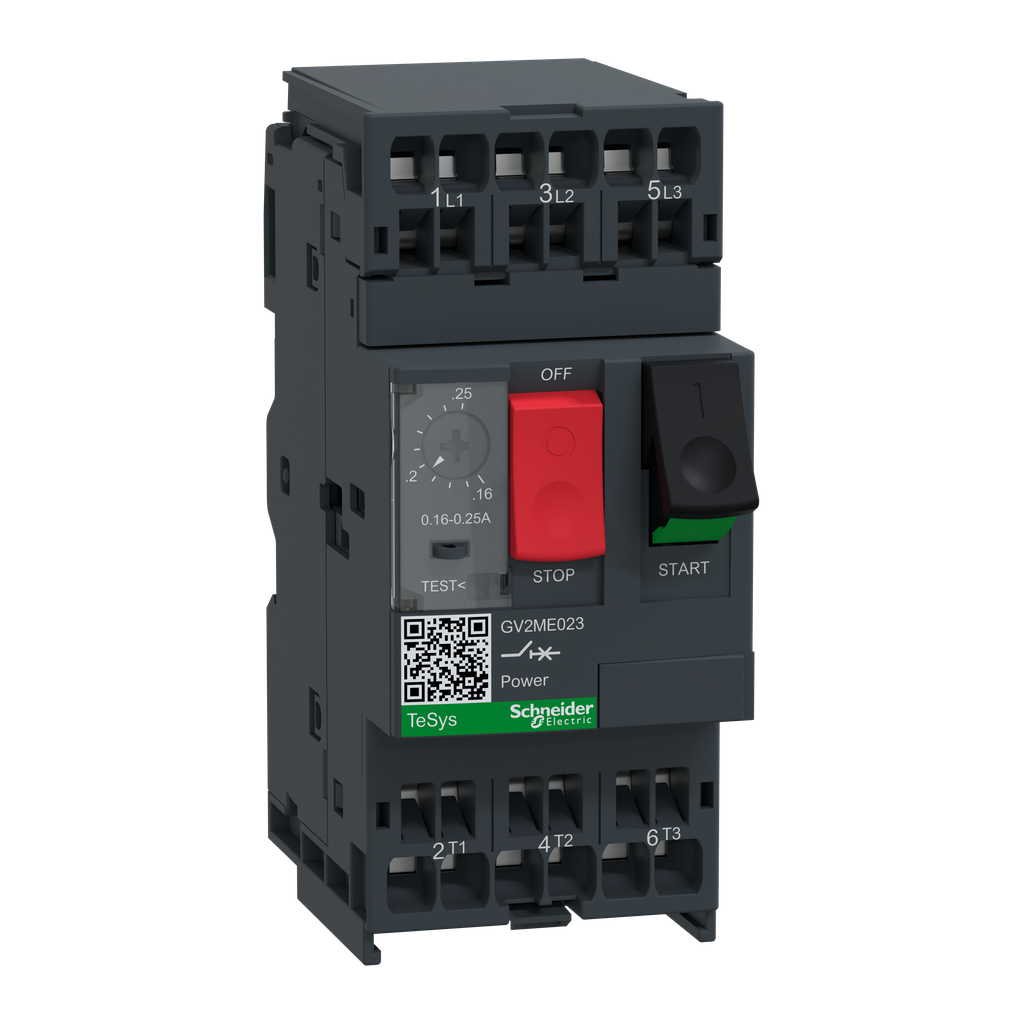

GV2ME023
TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 0.16...0.25 A, spring terminals
TeSys GV motor circuit breaker, 3 poles (3P), 0.25A/690V, for 3-phase motor applications 0.06kW@400V. It provides a thermal-magnetic protection with a thermal setting range 0.16-0.25A, magnetic tripping at 9xIn, high breaking capacity Icu 100kA@400V. Connection by spring terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Or Component Type | motor circuit breaker |
|---|---|
| Product Name |
|
| Range | TeSys Deca |
| Device Application | motor protection |
| Device Short Name | GV2ME |
| Trip Unit Technology | thermal-magnetic |
| Warranty | 18 months |
| Line Rated Current | 0.25 A |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| Height | 101 mm |
| Phase Failure Sensitivity | yes IEC 60947-4-1 |
| Rated Duty | continuous IEC 60947-4-1 |
| Network Type | AC |
| Magnetic Tripping Current | 2.4-2.4 A |
| [Ith] Conventional Free Air Thermal Current | 0.25 A IEC 60947-4-1 |
| Motor Power Kw | 0.06-0.06 kW 400/415 V AC 50/60 Hz |
| Utilisation Category |
|
| Net Weight | 0.28 kg |
| Fixing Mode |
|
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-2 |
| [Ics] Rated Service Short-Circuit Breaking Capacity |
|
| Control Type | push-button |
| Power Dissipation Per Pole | 2.5 W |
| Electrical Durability | 100000 cycles AC-3 415 V In |
| [Ui] Rated Insulation Voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| Breaking Capacity |
|
| Suitability For Isolation | yes IEC 60947-1 § 7-1-6 |
| Thermal Protection Adjustment Range | 0.16-0.25 A IEC 60947-4-1 |
| Mechanical Durability | 100000 cycles |
| Poles Description | 3P |
| Color | dark grey |
| Width | 45 mm |
| Depth | 78.5 mm |
| Network Frequency | 50/60 Hz IEC 60947-4-1 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP121004 |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI121004 |
| Eu Rohs Directive | Compliant |
| Product Certifications |
|
| Ik Degree Of Protection | IK04 |
| Mechanical Robustness |
|
| Ambient Air Temperature For Operation | -20-60 °C |
| Standards |
|
| Climatic Withstand | IACS E10 |
| Ambient Air Temperature For Storage | -40-80 °C |
| Ip Degree Of Protection | IP20 IEC 60529 |
| Operating Altitude | 6561.68 ft (2000 m) |
| Fire Resistance | 960 °C IEC 60695-2-11 |
