GV2MC02

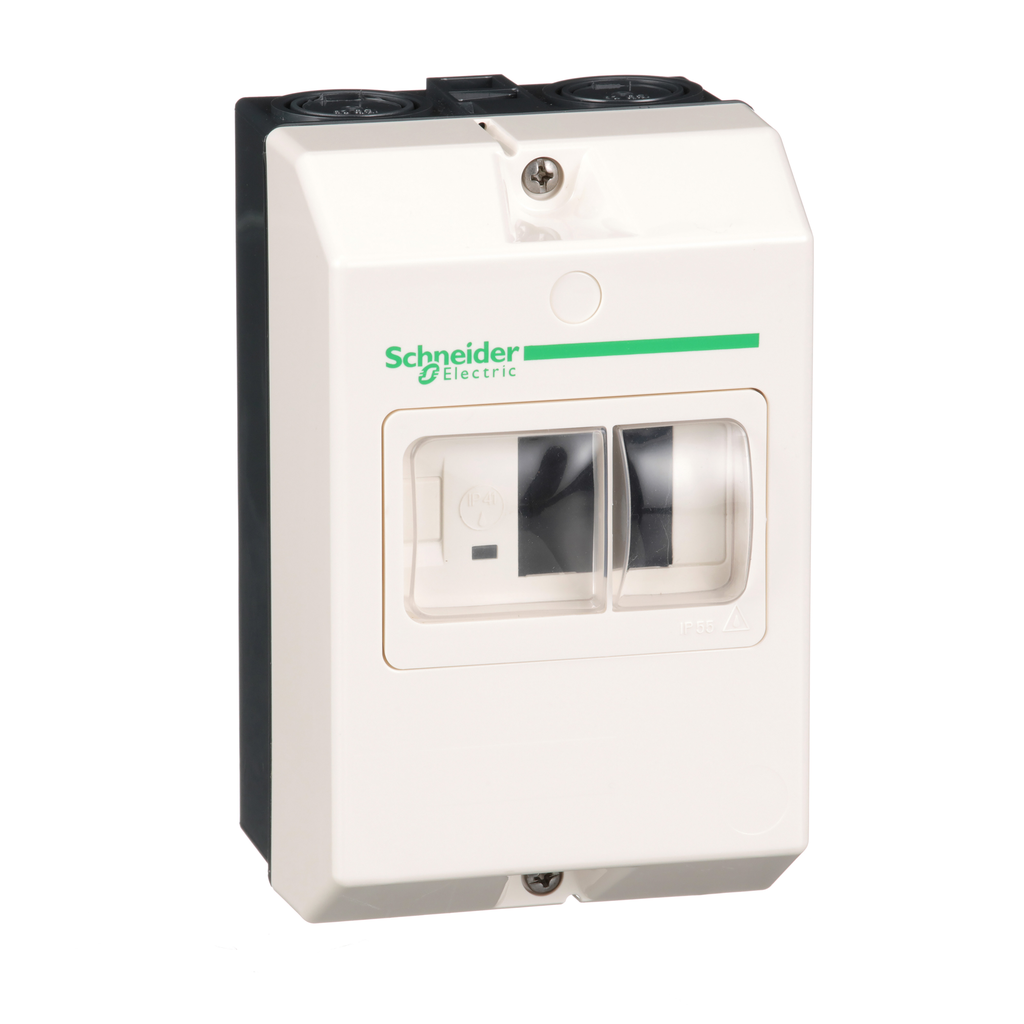

TeSys GV2, surface mount enclosure, for TeSys GV2ME, IP55 rated
TeSys enclosed starters, empty enclosure, for thermal magnetic circuit breakers GV2ME. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. Polycarbonate enclosure, double insulated with protective conductor, IP55 protection. To be equipped with a motor circuit breaker GV2ME, and start-emergency stop buttons GV2K (to be ordered separately). Possible mounting of 1 side auxiliary contact blocks GVAD, GVAM, GVAD on both sides of GV2ME (to be ordered separately). It conforms to IEC 60947-2 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Accessory / Separate Part Category | mounting accessory |
|---|---|
| Product Or Component Type | enclosure |
| Enclosure/Cubicle Description | surface mounting |
| Range | TeSys |
| Product Compatibility | GV2ME |
| Device Short Name | GV2MC |
| Warranty | 18 months |
| Height | 147 mm |
| Net Weight | 0.3 kg |
| Width | 93 mm |
| Depth | 84 mm |
| Auxiliary Mounting Location |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111273EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant |
| Product Certifications | UKCA |
| Ip Degree Of Protection | IP55 |
| Environmental Characteristic | standard environment |
