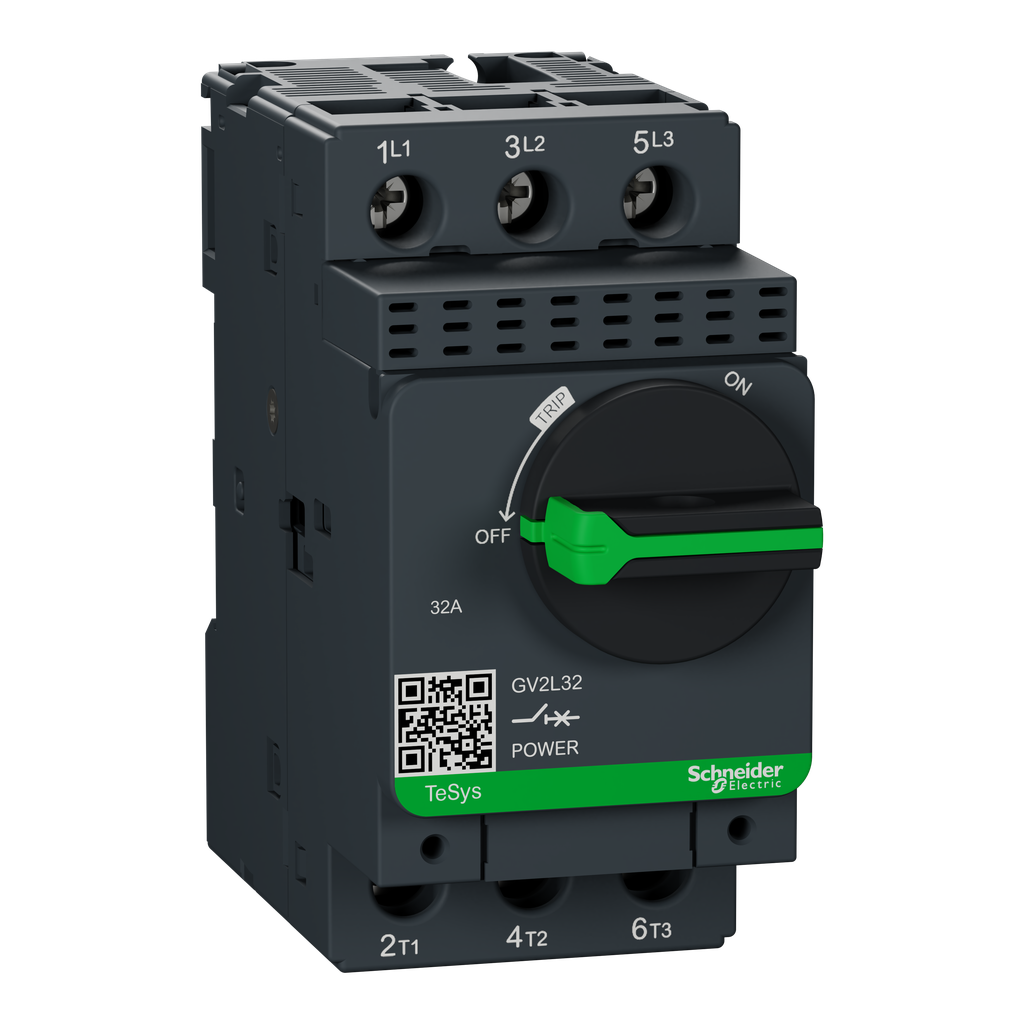

TeSys GV motor circuit breaker, 3 poles (3P), 32A/690V, for 3-phase motor applications 15kW@400V. It provides a magnetic protection with a tripping level at 13xIn, high breaking capacity Icu 50kA@400V. Connection by screw clamp terminals. Start-stop control by rotary handle guaranteed for 100 000 cycles AC-3. To complete motor protection, use in association with a thermal overload relay LRD32 (to be ordered separately). Multi standards certified (IEC, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueProduct Or Component Type | motor circuit breaker |
---|---|
Product Name |
|
Range | TeSys Deca |
Device Application | motor protection |
Device Short Name | GV2L |
Trip Unit Technology | magnetic |
Warranty | 18 months |
Line Rated Current | 32 A |
[Ue] Rated Operational Voltage | 690 V AC 50/60 Hz IEC 60947-2 |
Height | 89 mm |
Rated Duty | continuous IEC 60947-4-1 |
Network Type | AC |
Magnetic Tripping Current | 416-416 A |
[Ith] Conventional Free Air Thermal Current | 32 A IEC 60947-4-1 |
Motor Power Kw |
|
Utilisation Category |
|
Net Weight | 0.33 kg |
Fixing Mode |
|
[Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-2 |
[Ics] Rated Service Short-Circuit Breaking Capacity |
|
Control Type | rotary handle |
Power Dissipation Per Pole | 1.8 W |
Electrical Durability | 100000 cycles AC-3 415 V In |
[Ui] Rated Insulation Voltage | 690 V AC 50/60 Hz IEC 60947-2 |
Breaking Capacity |
|
Suitability For Isolation | yes IEC 60947-1 § 7-1-6 |
Tightening Torque | 1.7 N.m screw clamp terminal |
Mechanical Durability | 100000 cycles |
Poles Description | 3P |
Color | dark grey |
Width | 45 mm |
Depth | 97 mm |
Network Frequency | 50/60 Hz IEC 60947-2 |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP2211002 |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Circularity Profile | ENVEOLI2211002 |
Eu Rohs Directive | Compliant |
Product Certifications |
|
Ik Degree Of Protection | IK04 |
Mechanical Robustness |
|
Ambient Air Temperature For Operation | -20-60 °C |
Standards |
|
Climatic Withstand | IACS E10 |
Ambient Air Temperature For Storage | -40-80 °C |
Ip Degree Of Protection | IP20 IEC 60529 |
Operating Altitude | 6561.68 ft (2000 m) |
Fire Resistance | 960 °C IEC 60695-2-11 |
