GV2G272

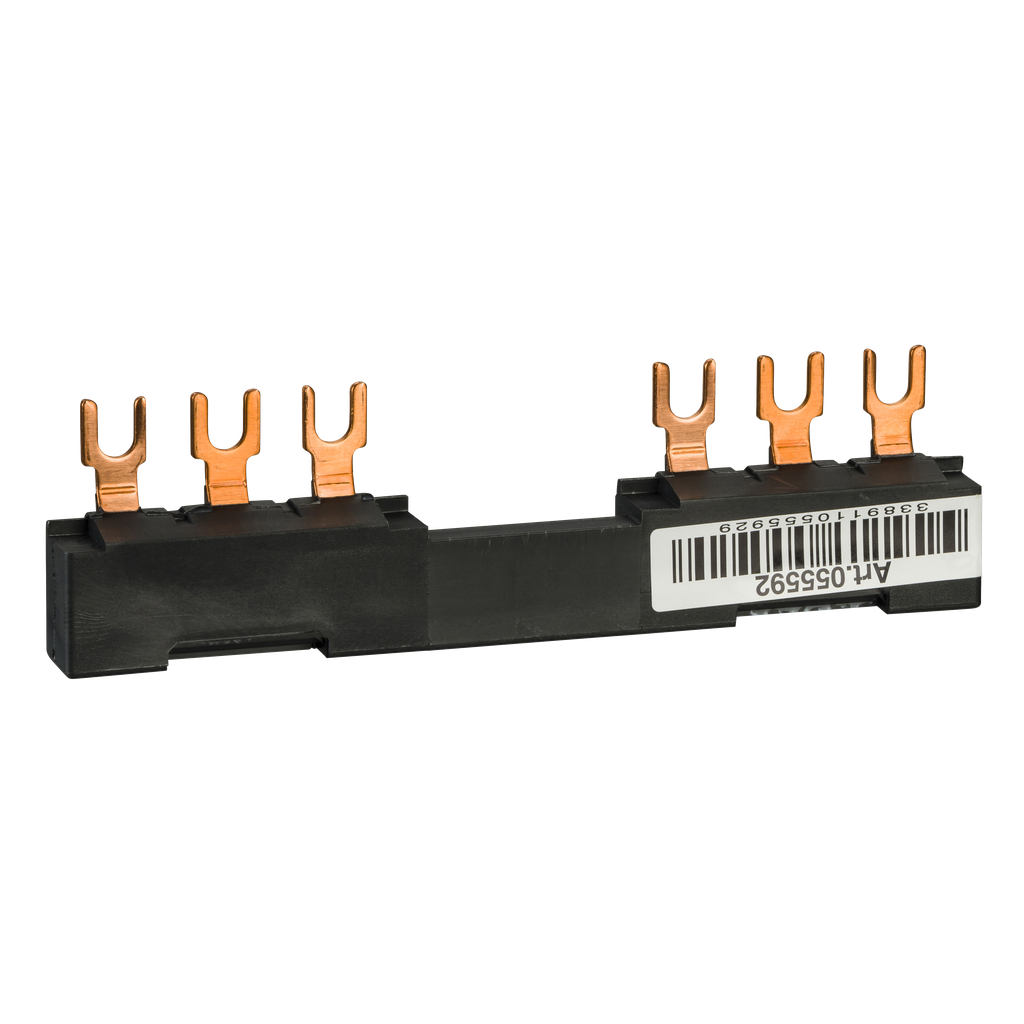

Linergy FT - Comb busbar - 63 A - 2 tap-offs - 72 mm pitch
TeSys GV busbar set, 3 phases, 63A/690V, for the upstream parallel wiring of groups of motor starters composed of GV2 motor circuit breakers or LS1D32 fuse carriers. For use with screw clamp terminal devices, it is composed of 2 tap-off outlets for the paralleling of 2 devices with a pitch of 72mm. The use of a terminal block GV1G09 or GV2G05 is recommended to supply the busbar sets (to be ordered separately). Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| [Ui] Rated Insulation Voltage | 690 V |
|---|---|
| Length | 116 mm |
| Net Weight | 0.05 kg |
| Mounting Location | on terminal |
| Country of Origin | Romania |
| Length | 116 mm |
| Weight | 0.05 kg |
| Connection Pitch | 72 mm |
| Accessory / Separate Part Category | connection accessory |
| Product Or Component Type | comb busbar |
| [Ith] Conventional Free Air Thermal Current | 63 A |
| Product Name | FT |
| Range | Linergy |
| Poles Description | 3P |
| Number Of Tap-Offs | 2 |
| Range Compatibility |
|
| Device Short Name | GV2G |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2207006 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2207006 |
| Eu Rohs Directive | Compliant |
| Warranty | 18 months |
