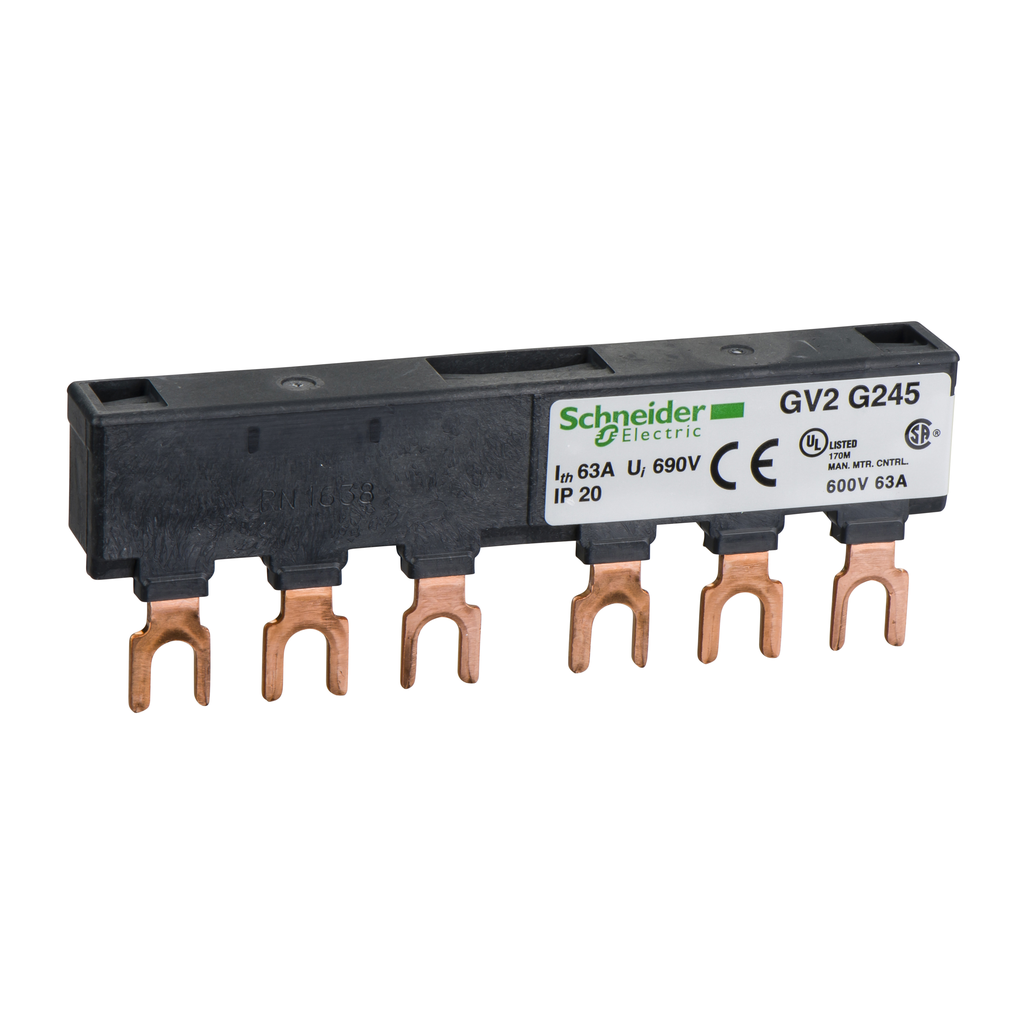

GV2G245
Linergy FT, Comb busbar, 63A, 2 tap-offs, 45mm pitch
TeSys GV busbar set, 3 phases, 63A/690V, for the upstream parallel wiring of groups of motor starters composed of GV2 motor circuit breakers or LS1D32 fuse carriers. For use with screw clamp terminal devices, it is composed of 2 tap-off outlets for the paralleling of 2 devices with a pitch of 45mm. The use of a terminal block GV1G09 or GV2G05 is recommended to supply the busbar sets (to be ordered separately). Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Connection Pitch | 45 mm |
|---|---|
| Accessory / Separate Part Category | connection accessory |
| Product Or Component Type | comb busbar |
| [Ith] Conventional Free Air Thermal Current | 63 A |
| Product Name | FT |
| Range | Linergy |
| Poles Description | 3P |
| Number Of Tap-Offs | 2 |
| Range Compatibility |
|
| Device Short Name | GV2G |
| Warranty | 18 months |
| [Ui] Rated Insulation Voltage | 690 V |
| Length | 89 mm |
| Net Weight | 0.036 kg |
| Mounting Location | on terminal |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2207006 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2207006 |
| Eu Rohs Directive | Compliant |
