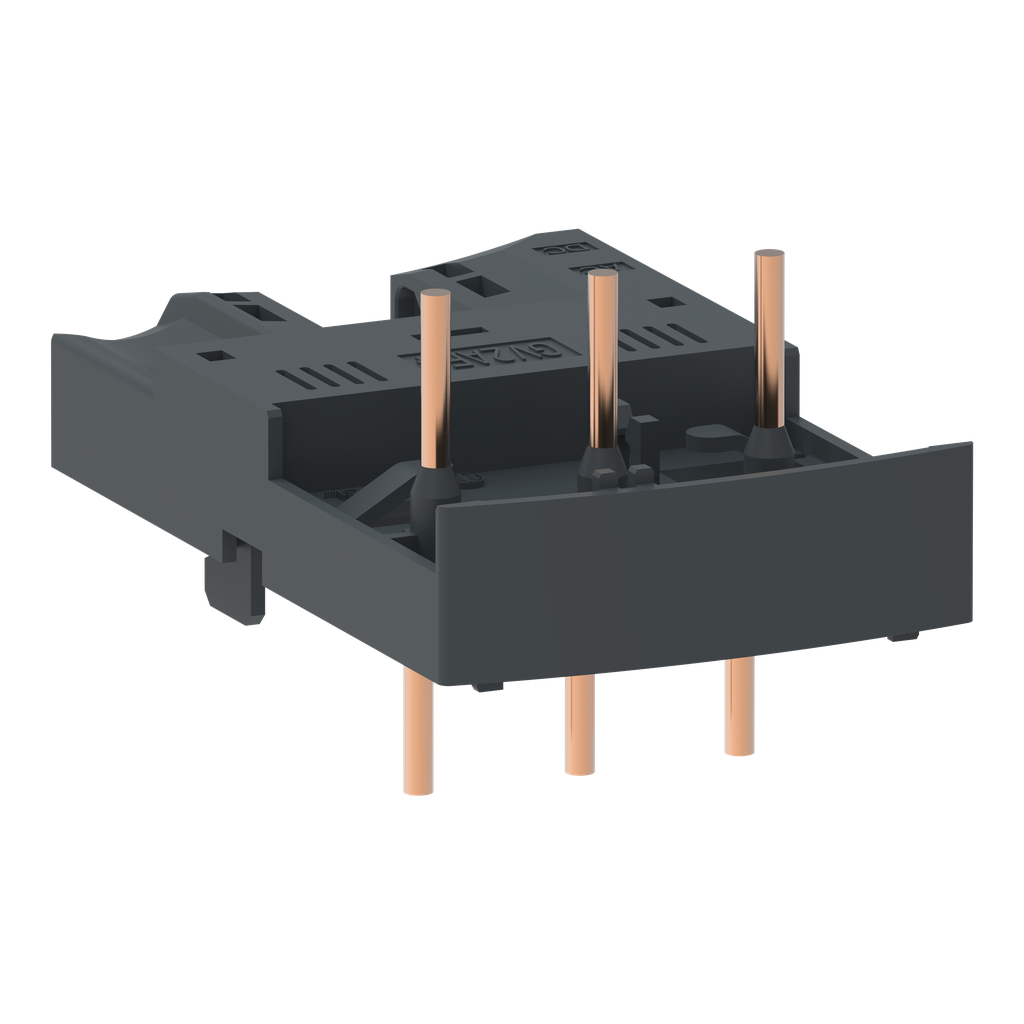

GV2AF4
Combination block,TeSys Deca,between GV2(Screw connection) mounted on LAD311 and LC1D09-D38
TeSys GV accessory, combination block for motor starter assembly. For the connection between a motor circuit breaker GV2 or a fuse carrier LS1D32 and a contactor LC1D09-D38. To be used when the assembly uses a mounting bracket LAD311. Sold in lots of 10 units. Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | United States |
|---|---|
| Weight | 0.016 kg |
| Accessory / Separate Part Category | connection accessory |
| Product Or Component Type | combination block |
| Product Name | FT |
| Range | Linergy |
| Range Compatibility |
|
| Device Short Name | GV2AF |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2207006 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2207006 |
| Eu Rohs Directive | Compliant |
| Net Weight | 0.016 kg |
| Poles Description | 3P |
| Quantity Per Set | set of 10 |
| Product Compatibility |
|
| Warranty | 18 months |
