GS2EU3N

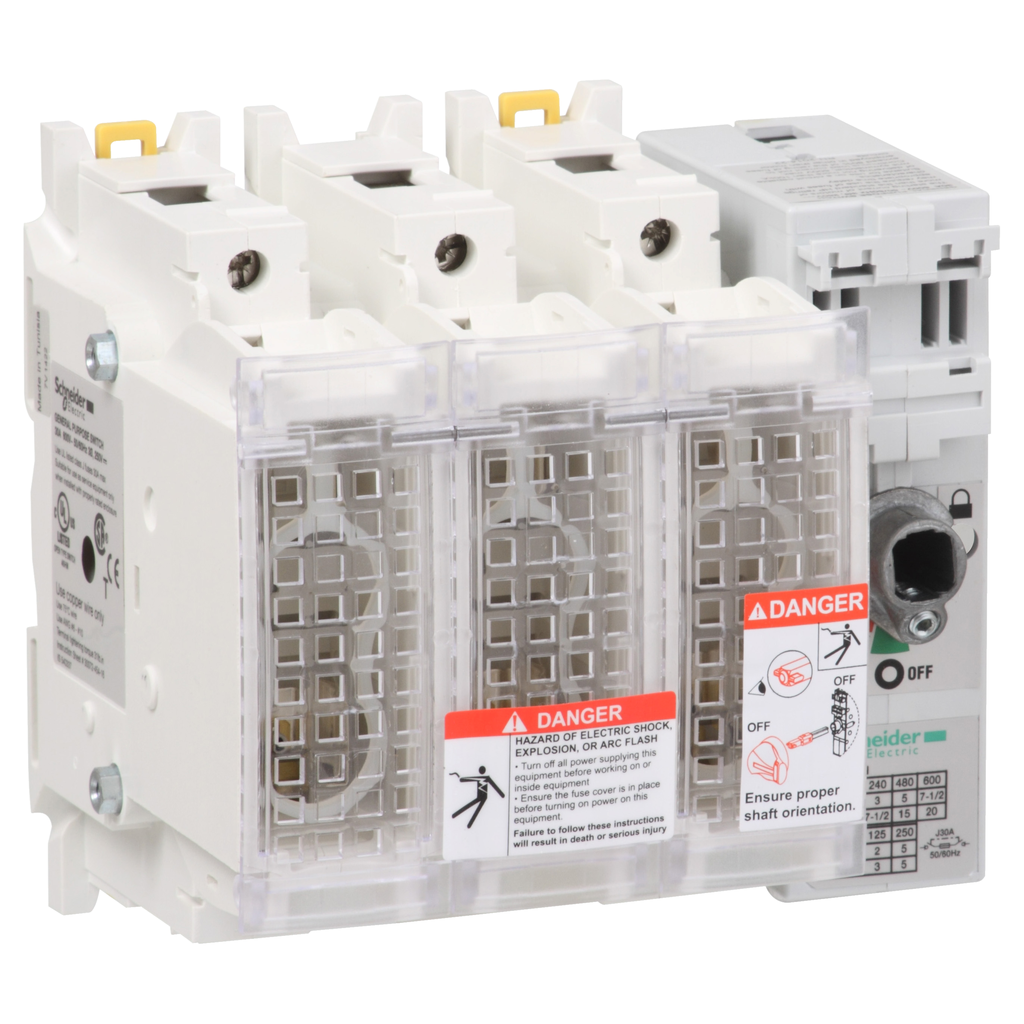

Switch disconnector fuse, TeSys GS, 3P, 30A, fuse type UL, size J
TeSys GS fuse switch-disconnector, 3 poles (3P), 30A/750V, to be used with class J fuse links up to 30A, for motor applications up to 15kW@400V AC-23. To be equipped with an external front side mounting operating handle GS2AH (several models available). It provides screw terminals with 3P terminal shrouds, high short circuit current rating 200kA@600V. Add-on auxiliary contact modules, front mounting GS1AM (early-break and position signaling), side mounting GS1AN (position signaling) can complete the assembly (to be ordered separately). UL/CSA certified, Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Tunisia |
|---|---|
| Width | 149.3 mm |
| Height | 136 mm |
| Network Frequency | 50/60 Hz |
| Fuse Size | J |
| [Ith] Conventional Free Air Thermal Current | 30 A (at 40 °C) |
| Network Type |
|
| Protected Poles Description | 3t |
| Product Or Component Type | switch-disconnector-fuse |
| Product Name | TeSys GS |
| Range | TeSys |
| Contacts Type And Composition | 3 NO |
| [Ie] Rated Operational Current | 30 A |
| Fuse Type | UL |
| Poles Description | 3P |
| Device Short Name | GS2EU |
| Ambient Air Temperature For Operation | -20-70 °C |
| Height | 136 mm |
| Standards |
|
| Ambient Air Temperature For Storage | -40-80 °C |
| Ip Degree Of Protection | IP20 IEC 60529 with terminal cover) |
| Fire Resistance | 960 °C body |
| Width | 149.3 mm |
| Depth | 123 mm |
| Type Of Operating Handle | external frontal |
| Mounting Support |
|
| Connections - Terminals | power circuit lugs-ring terminals 2-13 mm² |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| Short-Circuit Withstand | 17.6 kA |
| [Ui] Rated Insulation Voltage | 750 V |
| Electrical Durability | 6000 cycles |
| Mechanical Durability | 10000 cycles |
| Tightening Torque | power circuit 6.6-6.6 N.m |
| Rated Operational Power In W |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2003007EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2003007EN |
| Eu Rohs Directive | Compliant |
