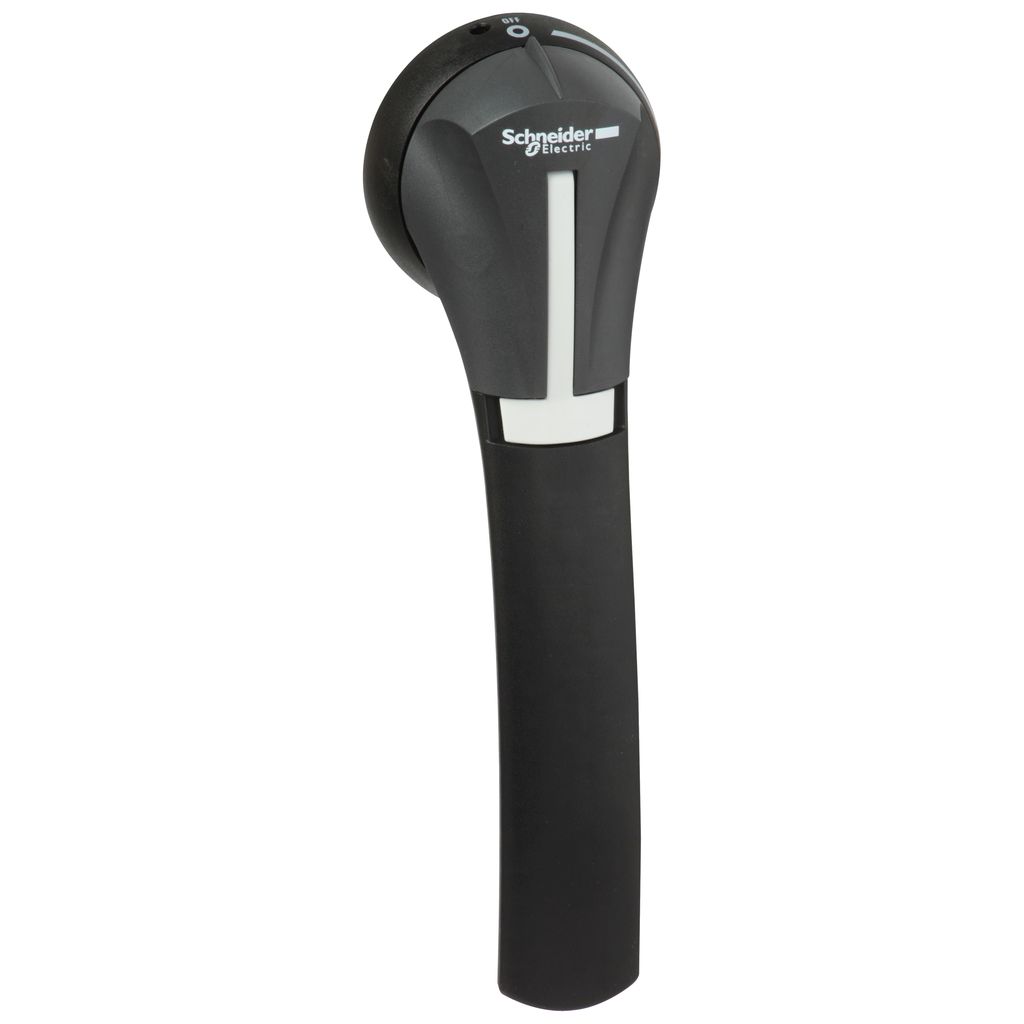

GS2AH150 - External rotary handle, TeSys GS, black handle, front mounting, 2 positions I-O, NEMA 3R, for GS 600 to 800A UL

GS2AH150

External rotary handle, TeSys GS, black handle, front mounting, 2 positions I-O, NEMA 3R, for GS 600 to 800A UL

TeSys GS external operating handle for 3-pole 600-800A UL fuse switch-disconnectors GS2SU, GS2TU. Black handle with grey front plate, padlockable, to be mounted on door of an enclosure with NEMA protection 1, 3R, 12, for front side operation. To be completed with a shaft for external operator GS2AE, several lengths available (to be ordered separately). Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Nema Degree Of Protection	NEMA 4/4X
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2003007EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
China Rohs Regulation	X
Circularity Profile	ENVEOLI2003007EN
Eu Rohs Directive	Compliant
Standards	UL CSA
Marking	O-I
Net Weight	0.28 kg
Rotary Handle Padlocking	with
Line Rated Current	600 A 800 A
Country of Origin	France
Weight	0.28 kg
Range Of Product	TeSys
Type Of Operating Handle	external frontal
Range Compatibility	TeSys TeSys GS GS2S TeSys TeSys GS GS2T
Handle Front Plate Colour	grey
Handle Colour	black
Product Or Component Type	rotary handle
Range	TeSys
Device Short Name	GS2AH

External rotary handle, TeSys GS, black handle, front mounting, 2 positions I-O, NEMA 3R, for GS 600 to 800A UL
