GS2AE81

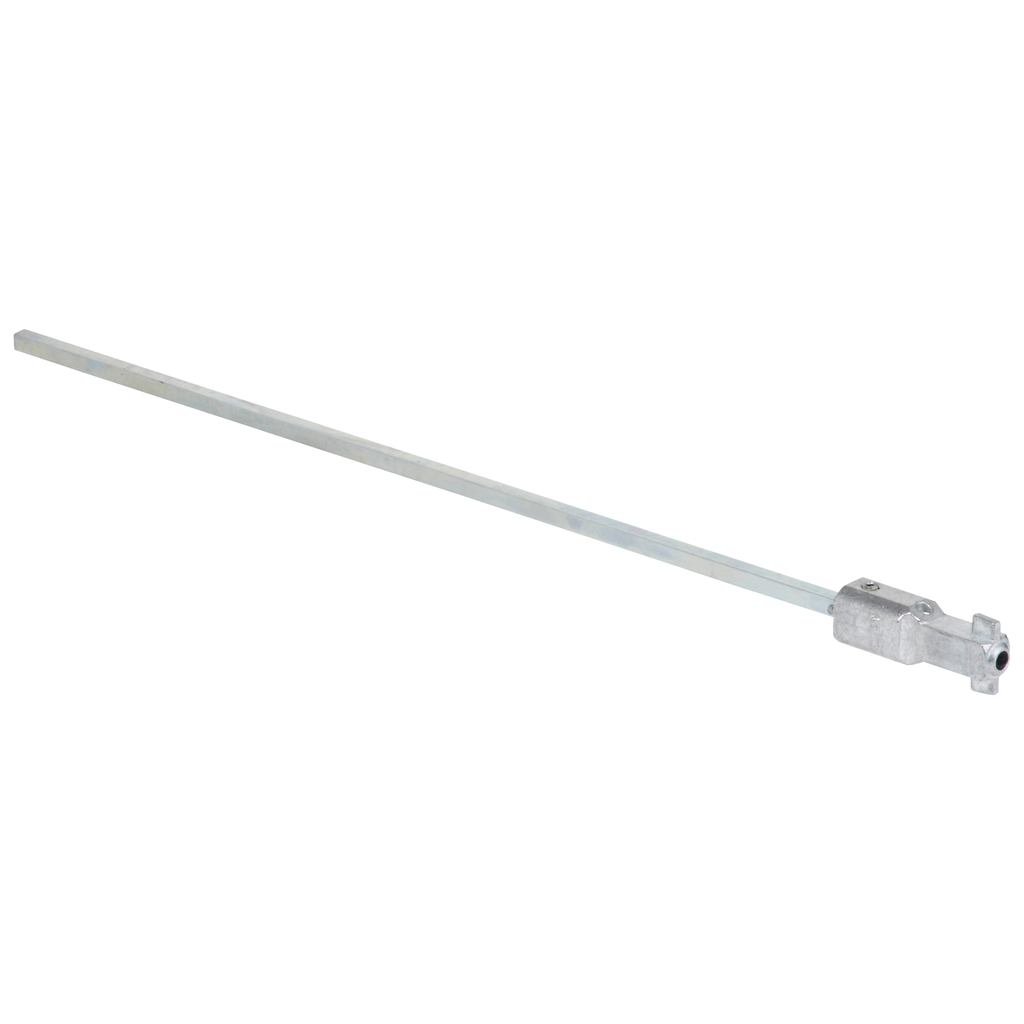

Shaft extension, TeSys GS, cross section 5x5mm, L400mm, for switches 30 to 32A
TeSys GS accessory, shaft extension for external operating handle, to be used with 3-pole and 4-pole 30A/32A IEC/UL fuse switch-disconnectors GS1D. Shaft length 400mm, cross section 5x5mm. Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2003007EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2003007EN |
| Eu Rohs Directive | Compliant |
| Country of Origin | United States |
| Length | 400 mm |
| Weight | 0.15 kg |
| Range Compatibility |
|
| Accessory / Separate Part Category | control accessory |
| Product Or Component Type | shaft extension |
| Range | TeSys |
| Line Rated Current |
|
| Device Short Name | GS2AE |
| Warranty | 18 months |
| Length | 400 mm |
| Net Weight | 0.15 kg |
| Shaft Cross Section | 5 x 5 mm |
Documents
- 30 A GS1DDU3, GS1DU3 Instruction Bulletin - 30072-454-15_01 (pdf)
- FuPacT GS - Switch-Disconnector Fuses 32 A - Instruction Sheet - GDE55791-01 (pdf)
- 30–60 A GS2AH110, GS2AH120, GS2AH410, GS2AH420, GS2AE8, GS2AE81 , GS2AE2, GS2AE21, GS2AE23 Disconnect Switch Component Instruction Bulletin - 30072-454-21_02 (pdf)
- TeSys GS - GS1DD3 / GS1DD4 / GS1DDB3 / GS1DDB4 - Instruction sheet - 534057G (pdf)
- Spec Sheet
- Manual Motor Control Switches and Disconnects Catalog - 9421CT0301 (pdf)
- Digest Catalog 08: Operating Mechanisms and Disconnect Switches - 0100CT1901_SEC-08 (pdf)
- Operating Mechanisms & Disconnect Switches: Section 8 - Digest 179 (2024) - Operator-Disconnects-Digest-Catalog-0100CT2401-SEC-08 (pdf)
- FuPacT Fusegear range from 32 to 1250A Catalog - LVPED216031EN (pdf)
- TeSys - Catalog 2024 - Innovative and connected solutions for motor starters - MKTED210011EN (pdf)
