GS2AE51

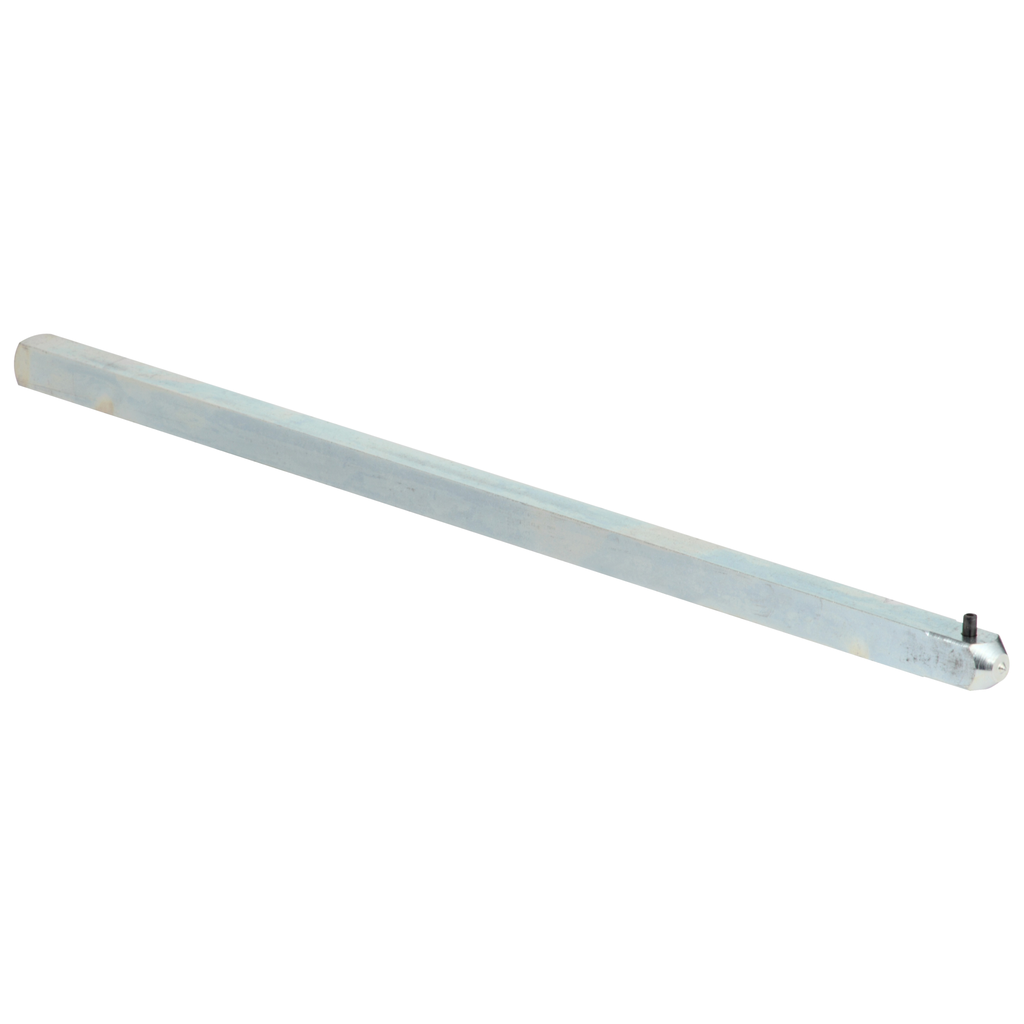

Shaft extension, TeSys GS, cross section 12x12mm, L400mm, for switches 600 to 1250A
TeSys GS accessory, shaft extension for external operating handle, to be used with 3-pole and 4-pole 600A-1250A IEC/UL fuse switch-disconnectors GS2S, GS2T, GS2V. Shaft length 400mm, cross section 12x12mm. Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Length | 400 mm |
|---|---|
| Net Weight | 0.42 kg |
| Shaft Cross Section | 12 x 12 mm |
| Country of Origin | France |
| Length | 400 mm |
| Weight | 0.42 kg |
| Range Compatibility |
|
| Accessory / Separate Part Category | control accessory |
| Product Or Component Type | shaft extension |
| Range | TeSys |
| Line Rated Current |
|
| Device Short Name | GS2AE |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2003007EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2003007EN |
| Eu Rohs Directive | Compliant |
| Warranty | 18 months |
Documents
- TeSys GS - GS2AEoo / GS2AHoo - Instruction sheet - 535248F (pdf)
- FuPacT GS - Switch-Disconnector Fuses 630/800 A - Instruction Sheet - GDE55801-01 (pdf)
- TeSys GS - 600–800 A GS2AH150, GS2AH160, GS2AE5, GS2AE51, GS2AE53, GS2AE6, GS2AE61 Disconnect Switch Component Instruction Bulletin - 30072-454-22_04 (pdf)
- FuPacT GS - Switch-Disconnector Fuses 1250 A - Instruction Sheet - GDE55802-01 (pdf)
- TeSys GS - GS2Voo - Instruction sheet - 534010G (pdf)
- TeSys GS - GS2AEoo / GS2AHoo - Instruction sheet - 535250G (pdf)
- 600-800 A GS2AH150, GS2AH160, GS2AE5, GS2AE51, GS2AE6, GS2AE61 - 30072-454-22 (pdf)
- TeSys GS - GS2AEoo / GS2AHoo - Shafts and handles for external front operator for GS2 1250 A - Instruction Sheet - 535249G (pdf)
- TeSys GS - GS2Soo / GS2Too - Instruction sheet - 534009G (pdf)
- Spec Sheet
- Manual Motor Control Switches and Disconnects Catalog - 9421CT0301 (pdf)
- Digest Catalog 08: Operating Mechanisms and Disconnect Switches - 0100CT1901_SEC-08 (pdf)
- Operating Mechanisms & Disconnect Switches: Section 8 - Digest 179 (2024) - Operator-Disconnects-Digest-Catalog-0100CT2401-SEC-08 (pdf)
- FuPacT Fusegear range from 32 to 1250A Catalog - LVPED216031EN (pdf)
- TeSys - Catalog 2024 - Innovative and connected solutions for motor starters - MKTED210011EN (pdf)
