GS2AE2

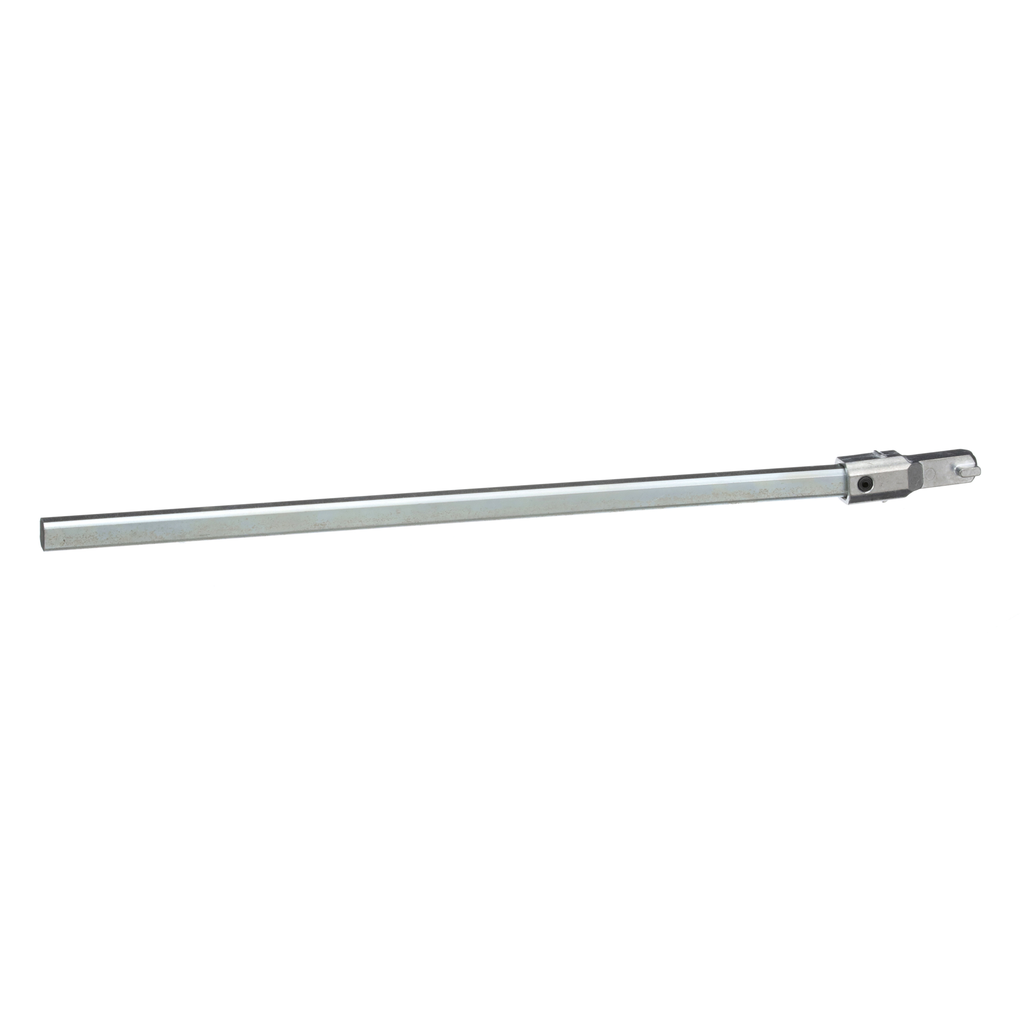

TeSys GS, shaft extension, 10 x 10 x 320 mm, for 100 to 400 A GS2 switches
TeSys GS accessory, shaft extension for external operating handle, to be used with 3-pole and 4-pole 30A-400A IEC/UL fuse switch-disconnectors GS2E, GS2F, GS2G, GS2J, GS2K, GS2L, GS2M, GS2N, GS2Q. Shaft length 320mm, cross section 10x10mm. Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2003007EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2003007EN |
| Eu Rohs Directive | Compliant |
| Country of Origin | France |
| Length | 320 mm |
| Weight | 0.28 kg |
| Range Compatibility |
|
| Accessory / Separate Part Category | control accessory |
| Product Or Component Type | shaft extension |
| Range | TeSys |
| Line Rated Current |
|
| Device Short Name | GS2AE |
| Warranty | 18 months |
| Length | 320 mm |
| Net Weight | 0.28 kg |
| Shaft Cross Section | 10 x 10 mm |
Documents
- TeSys GS - GS2AEoo / GS2AHoo - Shafts and handles for external front operator for GS2 UL 30 CC/J … 100 J - Instruction Sheet - 534361E (pdf)
- FuPacT GS - Switch-Disconnector Fuses 50/63 A - Instruction Sheet - GDE55797-01 (pdf)
- TeSys GS - GS2Doo / - / GS2Qoo - Instruction sheet - 534011G (pdf)
- 400 A LK4QU3N Disconnect Switch Instruction Bulletin - 30072-454-13_04 (pdf)
- FuPacT GS - Switch-Disconnector Fuses 100/125/160 A - Instruction Sheet - GDE55799-01 (pdf)
- 30 A GS2EEU3 Installation Instructions - 30072-454-34 (pdf)
- TeSys GS - GS2AEoo / GS2AHoo - Instruction sheet - 535250G (pdf)
- 100–400 A GS2AH130, GS2AH140, GS2AH430, GS2AH440, GS2AE2, GS2AE21, GS2AE23 Disconnect Switch Component Instruction Bulletin - 30072-454-24_03 (pdf)
- TeSys GS - GS2AEoo / GS2AHoo - Shafts and handles with or without test position for external front operator for GS2 32…400 A - Instruction Sheet - 535247D (pdf)
- 100-200 A, LK4JU3N, LK4MU3N Disconnect Switch Instruction Bulletin - 30072-454-12_04 (pdf)
- 30–60 A GS2AH110, GS2AH120, GS2AH410, GS2AH420, GS2AE8, GS2AE81 , GS2AE2, GS2AE21, GS2AE23 Disconnect Switch Component Instruction Bulletin - 30072-454-21_02 (pdf)
- FuPacT GS - Switch-Disconnector Fuses 200/250/400 A - Instruction Sheet - GDE55800-01 (pdf)
- GS2QU3N 400 A Disconnect Switch Instruction Bulletin - 30072-454-18 (pdf)
- Spec Sheet
- Manual Motor Control Switches and Disconnects Catalog - 9421CT0301 (pdf)
- Digest Catalog 08: Operating Mechanisms and Disconnect Switches - 0100CT1901_SEC-08 (pdf)
- Operating Mechanisms & Disconnect Switches: Section 8 - Digest 179 (2024) - Operator-Disconnects-Digest-Catalog-0100CT2401-SEC-08 (pdf)
- FuPacT Fusegear range from 32 to 1250A Catalog - LVPED216031EN (pdf)
- Industrial Control Panel Solutions Catalog - 8800CT1801 (pdf)
- TeSys - Catalog 2024 - Innovative and connected solutions for motor starters - MKTED210011EN (pdf)
