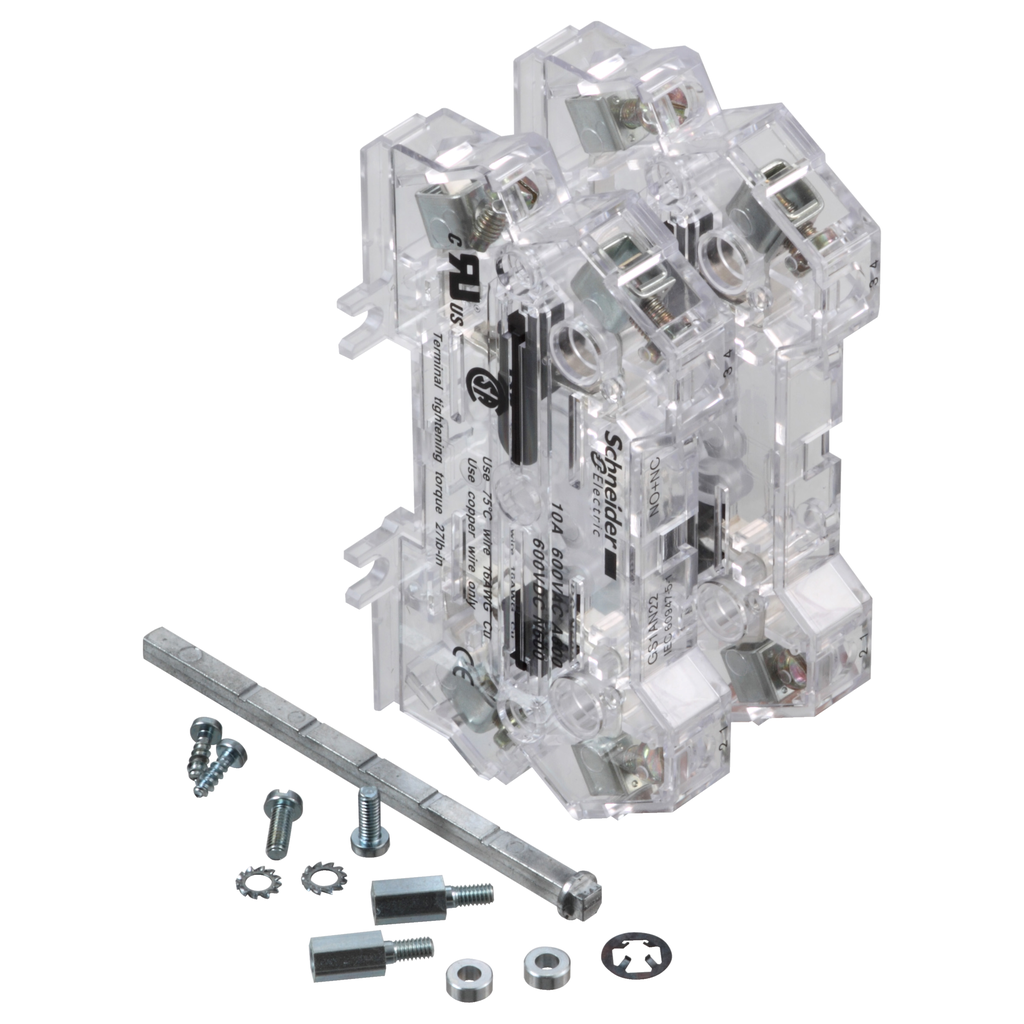

GS1AN22 – Auxiliary contacts, TeSys GS, 2NC 2NO, instantaneous, left side mounting, for GS1 and GS2 with front/right handle
GS1AN22
Auxiliary contacts, TeSys GS, 2NC+2NO, instantaneous, left side mounting, for GS1 and GS2 with front/right handle

TeSys GS instantaneous auxiliary contact block for all 3-pole and 4-pole 50-1250A IEC and 30-800A UL fuse switch-disconnectors GS2D, GS2E, GS2F, GS2G, GS2J, GS2K, GS2L, GS2M, GS2N, GS2P, GS2Q, GS2S, GS2T, GS2V. It provides 2NC+2NO contacts rated up to 4A/48V DC-13 and 10A/230V AC-15, for I/O position signaling. Right-hand side mounting and connection by screw terminals. Multi standards certified (IEC, UL), it conforms to RoHS/REACh regulation.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Country of Origin France
Weight 0.238 kg
Range Of Product TeSys
[Ith] Conventional Free Air Thermal Current 20 A (at 40 °C)
Product Or Component Type auxiliary contact
Contact Application O and I position signalling
Contacts Type And Composition 2 NO + 2 NC
[Ie] Rated Operational Current
  • 1 A 220 V DC-13
  • 10 A 230 V AC-15
  • 12 A 127 V AC-15
  • 4 A 48 V DC-13
  • 6 A 440 V AC-15
  • 8 A 400/415 V AC-15
  • 1.2 A 110 V DC-13
Contact Operation instantaneous
Device Short Name GS1AN
Type Of Operating Handle
  • direct frontal
  • external frontal
  • direct right side
  • external right side
Range Compatibility TeSys TeSys GS fuse-switch disconnector
Net Weight 0.238 kg
Electrical Durability 30000 cycles AC-15
Fuse Type
  • DIN
  • NFC
  • BS
Mechanical Durability 30000 cycles
Line Rated Current
  • 200 A
  • 60 A
  • 600 A
  • 630 A
  • 315 A
  • 400 A
  • 800 A
  • 250 A
  • 125 A
  • 1250 A
  • 160 A
  • 50 A
  • 63 A
  • 100 A
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP2003007EN
Sustainable Offer Status Green Premium product
Toxic Heavy Metal Free Yes
California Proposition 65 WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
China Rohs Regulation X
Circularity Profile ENVEOLI2003007EN
Eu Rohs Directive Compliant
Warranty 18 months
