GS1AM110 – Auxiliary contacts, TeSys GS, 1 NO, early break, front mounting, for GS2 with front/side handle
GS1AM110

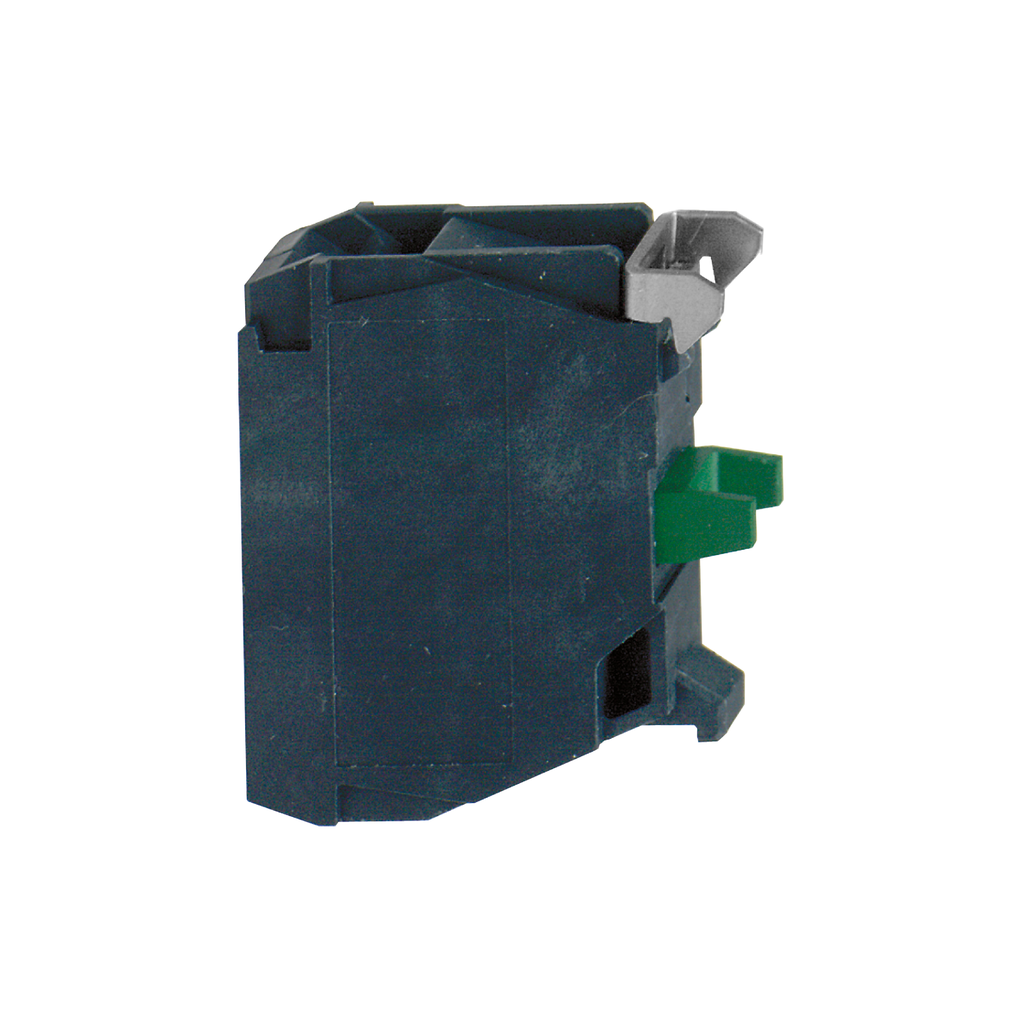

Auxiliary contacts, TeSys GS, 1 NO, early break, front mounting, for GS2 with front/side handle

TeSys GS instantaneous auxiliary contact block for all 3-pole and 4-pole 50-1250A IEC and 30-800A UL fuse switch-disconnectors GS2D, GS2E, GS2F, GS2G, GS2J, GS2K, GS2L, GS2M, GS2N, GS2P, GS2Q, GS2S, GS2T, GS2V. It provides 1NO early break contact rated up to 3A/24V DC-13 and 3A/230V AC-15, for I/O and Test position signaling. Front mounting and connection by screw terminals. Multi standards certified (IEC, UL), it conforms to RoHS/REACh regulation.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP2003007EN
Sustainable Offer Status Green Premium product
Toxic Heavy Metal Free Yes
California Proposition 65 WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
China Rohs Regulation X
Circularity Profile ENVEOLI2003007EN
Eu Rohs Directive Compliant
Country of Origin United States
Weight 0.015 kg
Range Of Product TeSys
[Ith] Conventional Free Air Thermal Current 10 A (at 40 °C)
Range Compatibility
  • TeSys TeSys GS fuse-switch disconnector
  • FuPact FuPacT GS fuse-switch disconnector
Product Or Component Type auxiliary contact
Contact Application O, I and test position signalling
Contacts Type And Composition 1 NO
[Ie] Rated Operational Current
  • 6 A 120 V AC-15
  • 3 A 240 V AC-15
  • 1.8 A 400 V AC-15
  • 1.5 A 480 V AC-15
  • 2.8 A 24 V DC-13
  • 1.4 A 48 V DC-13
  • 0.55 A 125 V DC-13
  • 0.27 A 250 V DC-13
  • 0.15 A 400 V DC-13
Contact Operation early-break
Device Short Name GS1AM
Warranty 18 months
Type Of Operating Handle
  • external frontal
  • external right side
  • external left side
Net Weight 0.015 kg
Mounting Location front face
Electrical Durability 1 Mcycles AC-15
Fuse Type
  • NFC
  • DIN
  • BS
  • CC
  • J
Mechanical Durability 5 Mcycles
Line Rated Current
  • 30 A
  • 32 A
  • 50 A
  • 60 A
  • 63 A
  • 100 A
  • 125 A
  • 160 A
  • 200 A
  • 250 A
  • 315 A
  • 400 A
  • 600 A
  • 630 A
  • 800 A
  • 1250 A
