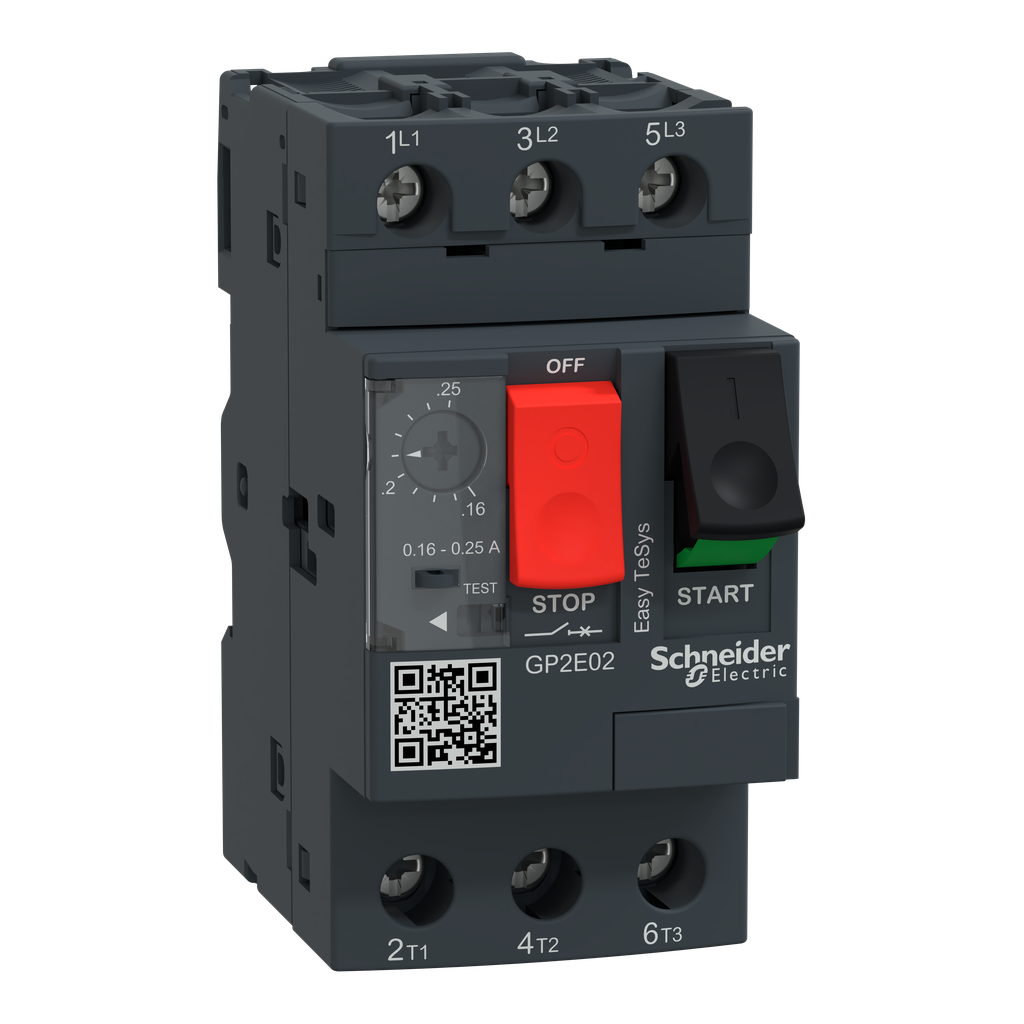

GP2E02
Manual motor controller,Easy TeSys GP2E,3P,0.16-0.25A,thermal magnetic trip,screw clamp terminals
Easy TeSys manual motor controller, 3 poles (3P), 0.25A/690V, for 3-phase motor applications 0.06kW@400V. It provides a thermal-magnetic protection with a thermal setting range 0.16-0.25A, magnetic tripping at 9xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, cUL), Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Line Rated Current | 0.25 A |
|---|---|
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| Height | 89 mm |
| Phase Failure Sensitivity | yes IEC 60947-4-1 |
| Rated Duty | continuous IEC 60947-4-1 |
| Network Type | AC |
| Magnetic Tripping Current | 2.4-2.4 A |
| [Ith] Conventional Free Air Thermal Current | 0.25 A IEC 60947-4-1 |
| Maximum Operating Rate | 25 cyc/h |
| Operating Position | any position |
| Connections - Terminals |
|
| Utilisation Category |
|
| Net Weight | 0.26 kg |
| Fixing Mode |
|
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-2 |
| [Ics] Rated Service Short-Circuit Breaking Capacity |
|
| Control Type | push-button |
| Power Dissipation Per Pole | 2.5 W |
| Electrical Durability | 100000 cycles AC-3 440 V |
| Breaking Capacity |
|
| Suitability For Isolation | yes IEC 60947-1 |
| [Ui] Rated Insulation Voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| Trip Unit Rating | 0.16-0.25 A |
| Tightening Torque | 1.7 N.m screw clamp terminals |
| Mechanical Durability | 100000 cycles |
| Poles Description | 3P |
| Width | 45 mm |
| Depth | 78.5 mm |
| Network Frequency | 50/60 Hz IEC 60947-4-1 |
| Product Certifications | cUL |
| Ik Degree Of Protection | IK04 |
| Ambient Air Temperature For Operation | -20-60 °C |
| Standards |
|
| Ambient Air Temperature For Storage | -40-80 °C |
| Protective Treatment | TH |
| Ip Degree Of Protection | IP20 IEC 60529 |
| Operating Altitude | 6561.68 ft (2000 m) |
| Fire Resistance | 960 °C IEC 60695-2-1 |
| Country of Origin | Thailand |
| Width | 45 mm |
| Height | 89 mm |
| Weight | 0.26 kg |
| Product Or Component Type | motor controller |
| Product Name | Easy TeSys GP2E |
| Range | Easy TeSys |
| Device Application | motor |
| Device Short Name | GP2E |
| Trip Unit Technology | thermal-magnetic |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP121004 |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI121004 |
| Eu Rohs Directive | Compliant with Exemptions |
