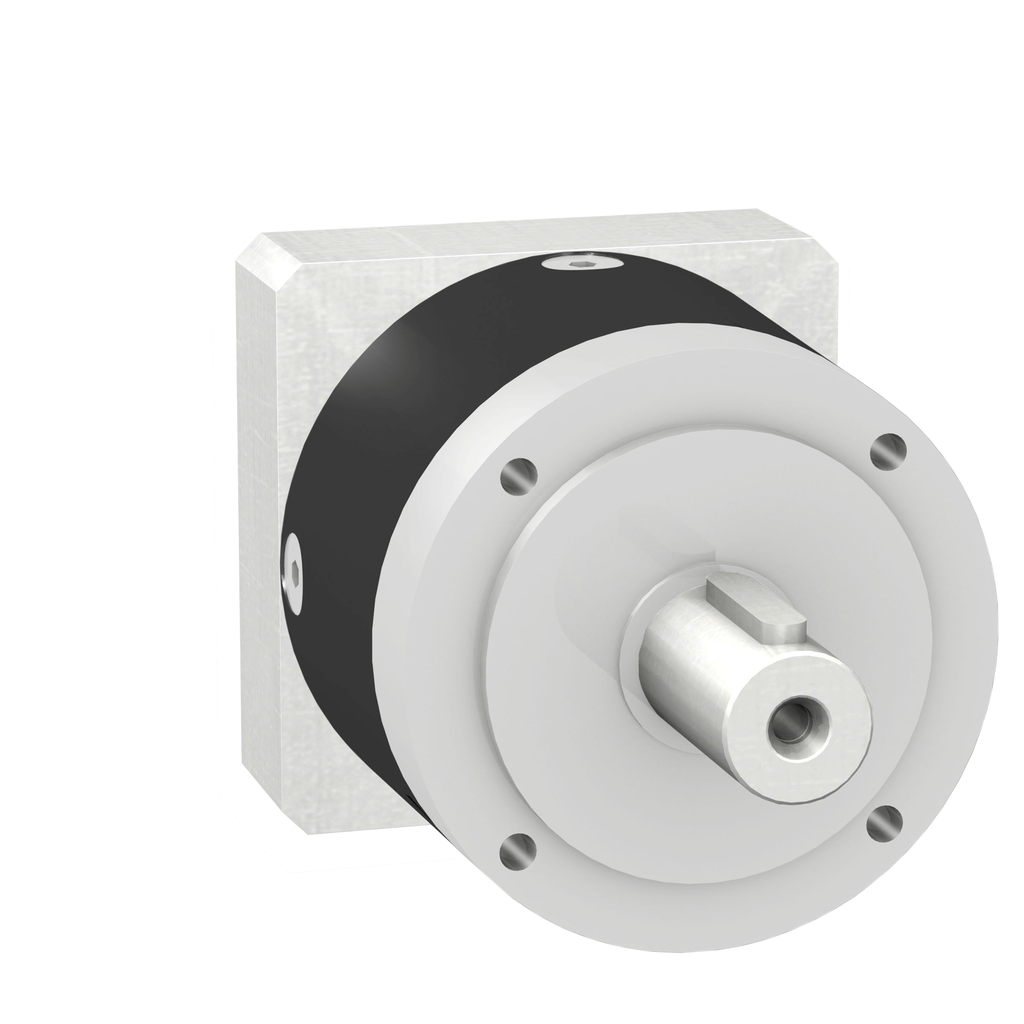

GBX1600251002F - gearbox with straight teeth GBX- Ø 160 mm- reduction 25:1- < 10arcmin- 700 N.m

GBX1600251002F

Add to Quote Catalogue

Housing Colour	black
Maximum Torsional Backlash	10 arc.min
Torsional Rigidity	41 N.m/arcmin
Maximum Radial Force Fr	4200 N 100 rpm, force applied at mid-distance from output shaft during 30000 hour at 30 °C 6000 N 100 rpm, force applied at mid-distance from output shaft during 10000 hour at 30 °C
Service Life In Hours	30000 h 100 rpm 30 °C
Additional Information	lubricated for life
Housing Material	black anodized aluminium
Efficiency	94 %
Continuous Output Torque	700 N.m 100 rpm 30 °C
Mounting Position	any position
Shaft Moment Of Inertia	5.81 g.cm²
Net Weight	22 kg
Shaft Material	C 45
Maximum Axial Force Fa	6000 N 100 rpm, during 30000 hour at 30°C 8000 N 100 rpm, during 10000 hour at 30°C
Maximum Output Torque	1120 N.m 100 rpm 30 °C
Noise Level	70 dB 1 m, no-load
Ambient Air Temperature For Operation	-25-90 °C
Ip Degree Of Protection	shaft output IP54
Country of Origin	Germany
Weight	22 kg
Gear Box Type	straight teeth
Reduction Ratio	25:1
Gearbox External Diameter	160 mm
Range Compatibility	Lexium 15 Lexium 52 Lexium 62 ILM Lexium 62 Lexium 32 Lexium 32i
Product Or Component Type	planetary gearbox
Device Short Name	GBX
Product Compatibility	BSH 100 mm, 2 BMH 100 mm, 2 BMI 100 mm, 2 SH3 MH3 ILM
Warranty	18 months
