GB2CB14

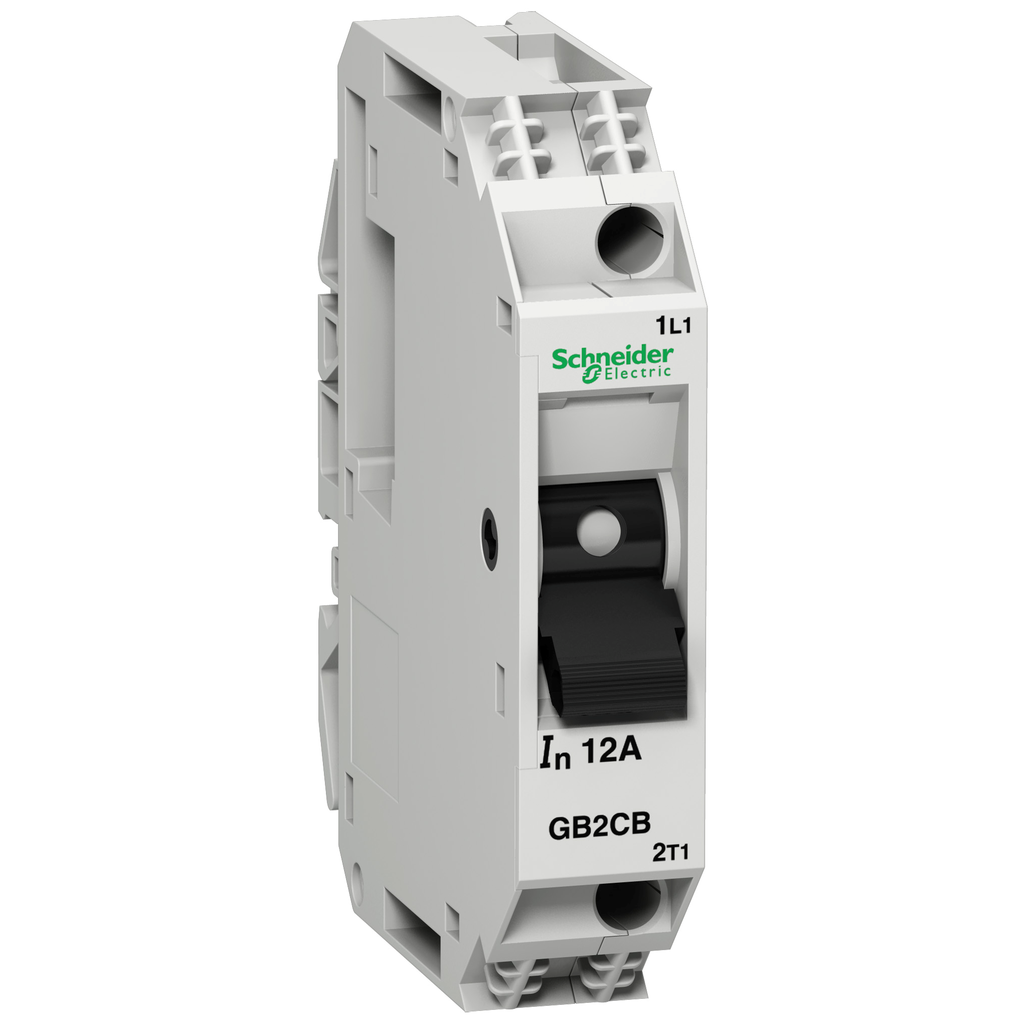

TeSys GB2 thermal magnetic circuit protector, 1 P, 8 A, Id = 108 A
TeSys GB circuit breaker, 1 pole (1P), 8A/250V IEC/277V UL, for the protection of industrial equipment control circuits. It provides thermal-magnetic protection with a magnetic tripping level at 108A (13 In) and breaking capacity Icu 1.5kA@240V. It can also be used for protection of DC loads up to 8A/48V DC-13 with a breaking capacity Icu 1.5kA@24V. Compact device (15mm wide), mounting on 35mm DIN-rail, control by toggle lever (start-stop guaranteed for 8000 cycles). Sold in lots of 6 units. Multi standards certified (IEC, UL, CSA), Green Premium product (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ambient Air Temperature For Operation | -20-60 °C |
| Standards |
|
| Ambient Air Temperature For Storage | -40-80 °C |
| Protective Treatment | TC |
| Ip Degree Of Protection | IP20 IEC 60529 |
| Operating Altitude | 9842.52 ft (3000 m) |
| Fire Resistance | 960 °C IEC 60695-2-1 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2306023 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: Cancer - www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Mechanical Robustness |
|
| Line Rated Current | 8 A |
| [Ue] Rated Operational Voltage |
|
| Height | 74 mm |
| Mounting Support |
|
| 9 Mm Pitches | 2 |
| Connections - Terminals |
|
| [Uimp] Rated Impulse Withstand Voltage | 4 kV IEC 60947-2 |
| Control Type | toggle |
| Power Dissipation Per Pole | 2 W |
| Electrical Durability | 8000 cycles |
| Mounting Mode | by clips |
| Tightening Torque | 1.2 N.m connector |
| Mechanical Durability | 8000 cycles |
| Quantity Per Set | set of 6 |
| Mounting Position |
|
| Width | 15 mm |
| Depth | 67 mm |
| Country of Origin | France |
| Width | 15 mm |
| Height | 74 mm |
| Network Type | AC/DC |
| Magnetic Tripping Current | 108-108 A |
| Product Or Component Type | circuit breaker |
| Product Name | TeSys GB2 |
| Utilisation Category |
|
| Range | TeSys |
| [Ics] Rated Service Short-Circuit Breaking Capacity |
|
| Breaking Capacity |
|
| Poles Description | 1P |
| Network Frequency | 50/60 Hz IEC 60947-2 |
| Device Application | control |
| Device Short Name | GB2 |
| Trip Unit Technology | thermal-magnetic |
