FCE200523B200

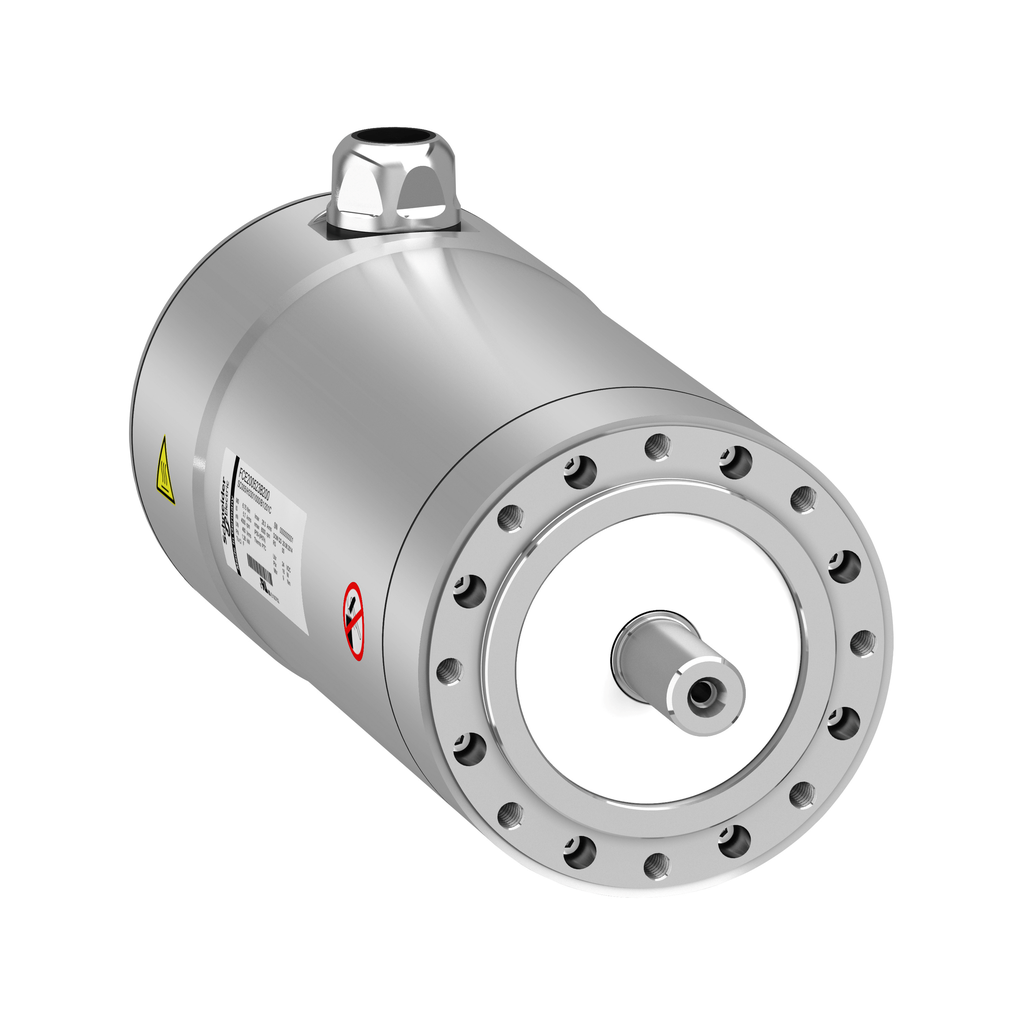

servo motor SHS 100 3,0Nm,brake,4k RPM
Specifications
| Maximum Permanent Current | 3.1 A |
|---|---|
| Circle Diameter Of The Mounting Holes | 100 mm |
| Continuous Power | 1260 W |
| Maximum Mechanical Speed | 6000 rpm |
| Switching Frequency | 8 kHz |
| Holding Torque | 4.65 N.m |
| Maximum Radial Force Fr | 660 N 4000 rpm |
| Mounting Support | flange |
| Number Of Motor Stacks | 3 |
| Rotor Inertia | 3.22 kg.cm² |
| Number Of Motor Poles | 146 |
| Back Emf Constant | 2.1 V/krpm 20 °C |
| Maximum Axial Force Fa | 160 N |
| Centring Collar Depth | 3.5 mm |
| Holding Brake | without |
| Speed Feedback Resolution | 128 periods |
| Product Compatibility |
|
| Shaft Length | 40 mm |
| Phase | three phase |
| Length | 270.7 mm |
| Net Weight | 10 kg |
| Maximum Current Irms |
|
| Centring Collar Diameter | 85 mm |
| Stator Inductance | 8.8 mH |
| Motor Flange Size | 100 mm |
| [Us] Rated Supply Voltage | 400 V |
| Peak Stall Torque |
|
| Number Of Mounting Holes | 4 |
| Shaft Diameter | 19 mm |
| Key Width | 6 mm |
| Nominal Output Power |
|
| Mounting Holes Diameter | 8 mm |
| Type Of Cooling | natural convection |
| Shaft End | smooth shaft |
| Nominal Speed |
|
| Electrical Connection | cable with stripped end |
| Stator Resistance | 1.4 Ohm |
| Continuous Stall Current | 5.7 A |
| Nominal Torque |
|
| Continuous Stall Torque |
|
| Ip Degree Of Protection |
|
| Country of Origin | United States |
| Length | 270.7 mm |
| Width | 6 mm |
| Weight | 10 kg |
| Encoder Type | absolute multiturn SinCos Hiperface |
| Product Or Component Type | servo motor |
| Range Compatibility | PacDrive 3 |
| Device Short Name | SHS |
