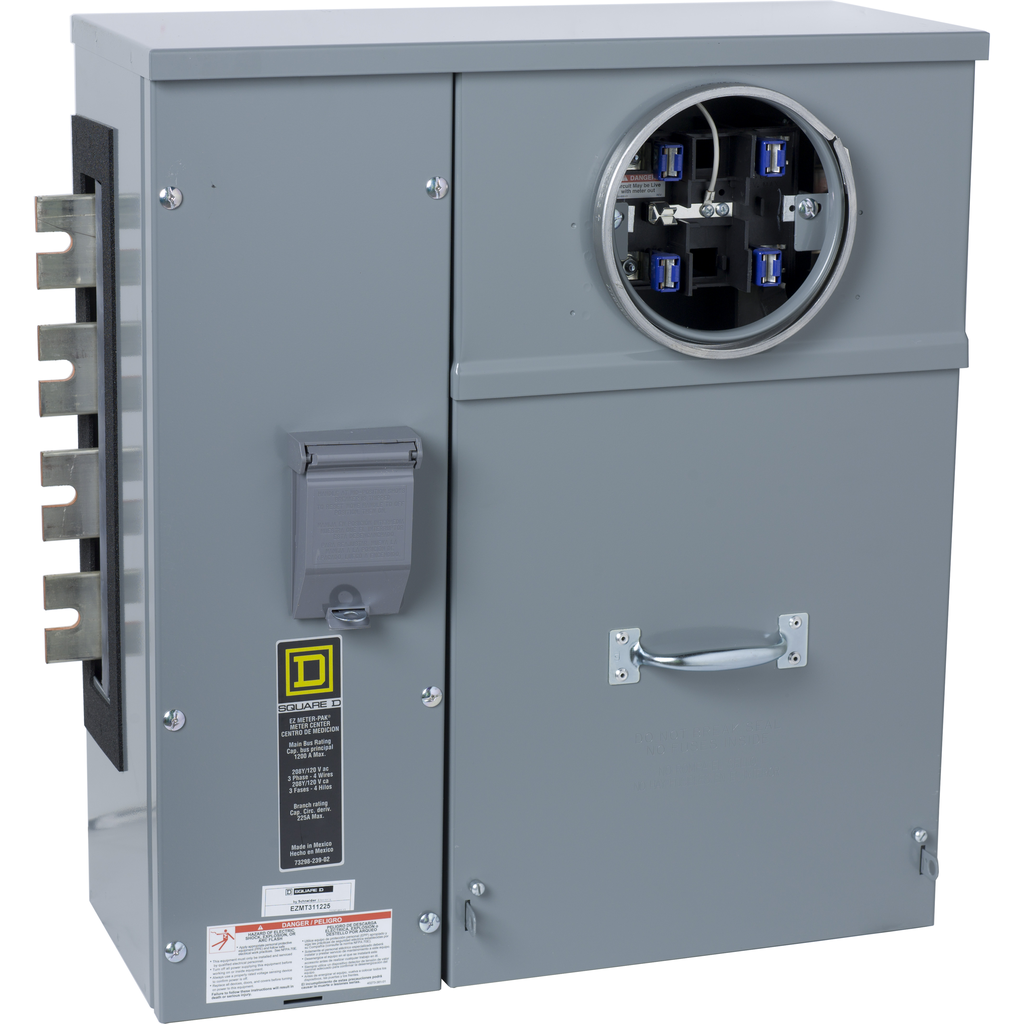

Branch unit, EZ Meter-Pak, 225A, 1 x 5 jaw socket, 208Y/120VAC, test block bypass, ringed, 1200A Al/Cu busbar
Square D™ EZ Meter-Pak™ devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM branch units are supplied with meter sockets and provisions for mounting tenant circuit breakers. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. Residential and commercial branches are available in ring or ringless type. This branch unit is ringed and rated 225A. It has 1 five jaw socket for use. The system voltage is 208Y/120 VAC and a test block bypass. It includes a 1200 A aluminium/copper busbar. It is compliant with UL standards and the steel enclosure has a rating of NEMA 3R.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2005009 |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Country of Origin | Mexico |
| Width | 569 mm |
| Height | 646 mm |
| Weight | 31.800 kg |
| Range Of Product | Meter-Pak |
| Bypass Type | test block bypass |
| Number Of Meter Sockets | 1 |
| Bus Rated Current | 1200 A |
| Product Or Component Type | Meter Center Branch Unit |
| Meter Socket Type | ringed |
| Line Rated Current | 225 A |
| Number Of Jaws | 5 without jaw release |
| Warranty | 18 months |
| Product Certifications | UL Listed |
| Height | 646 mm |
| Phase |
|
| Device Mounting | surface |
| [Ue] Rated Operational Voltage | 208Y/120 V AC |
| Net Weight | 31.800 kg |
| Nema Degree Of Protection | NEMA 3R |
| Material | aluminium/copper: busbar |
| Enclosure Material | steel |
| Width | 569 mm |
| Wiring Configuration | 4-wire |
| Depth | 238 mm |
