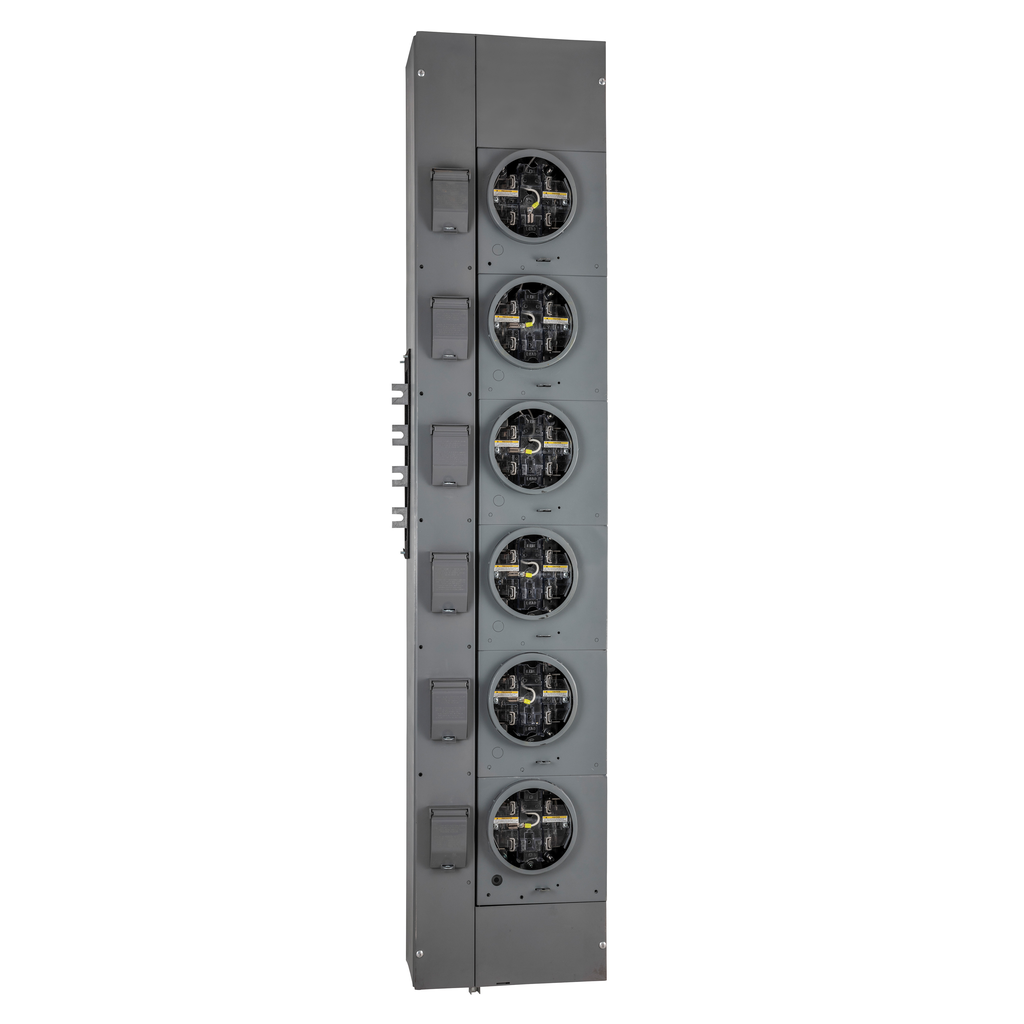

Branch unit, EZ Meter-Pak, 125A, 4 x 5 jaw sockets, 208Y/120VAC, lever bypass, ringless, 800A Al busbar
Square D™ EZ Meter-Pak™ devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM branch units are supplied with meter sockets and provisions for mounting tenant circuit breakers. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. Residential and commercial branches are available in ring or ringless type. This branch unit is ringless and rated 125A. It has 4 five jaw sockets for use. The system voltage is 208Y/120 VAC and has a lever bypass. It includes a 800 A aluminium busbar. It is compliant with UL standards and the steel enclosure has a rating of NEMA 3R.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2005009 |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Country of Origin | United States |
| Width | 15.38 in |
| Height | 55 in |
| Range Of Product | Meter-Pak |
| Bypass Type | lever bypass |
| Number Of Meter Sockets | 4 |
| Bus Rated Current | 800 A |
| Product Or Component Type | Meter Center Branch Unit |
| Meter Socket Type | ringless |
| Line Rated Current | 125 A |
| Number Of Jaws | 5 with jaw release |
| Height | 55 in |
| Phase |
|
| Device Mounting | surface |
| [Ue] Rated Operational Voltage | 208Y/120 V AC |
| Short-Circuit Current | 10 kA |
| Nema Degree Of Protection | NEMA 3R |
| Material | aluminium: busbar |
| Width | 15.38 in |
| Wiring Configuration | 4-wire |
| Depth | 8.95 in |
