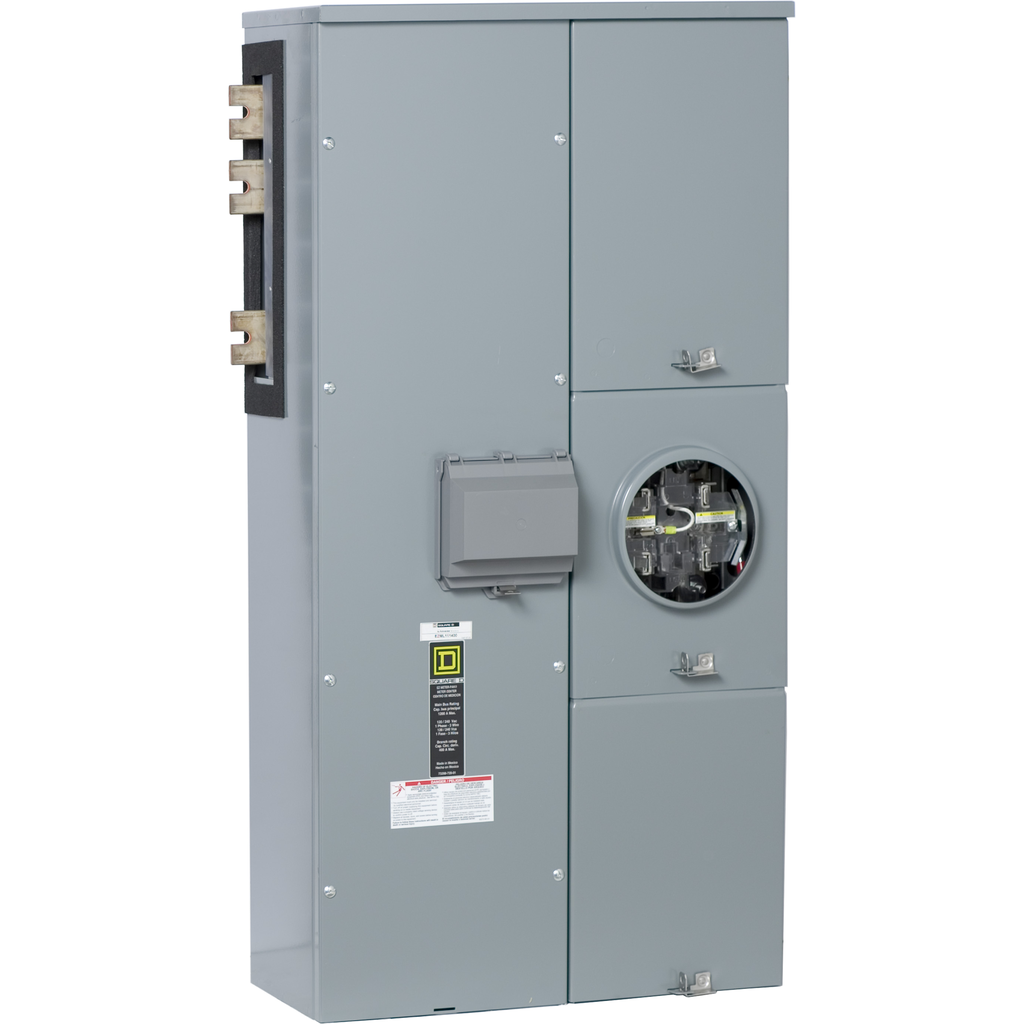

Branch unit, EZ Meter-Pak, 400A, 2 x 5 jaw sockets, 120/240VAC, lever bypass, ringless, 1200A Cu busbar
Square D™ EZ Meter-Pak™ devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM branch units are supplied with meter sockets and provisions for mounting tenant circuit breakers. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. Residential and commercial branches are available in ring or ringless type. This branch unit is ringless and rated 400A. It has 2 five jaw sockets for use. The system voltage is 120/240 VAC and has a lever bypass. It includes a 1200 A copper busbar. It is compliant with UL standards and the steel enclosure has a rating of NEMA 3R.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | UL Listed |
|---|---|
| Height | 1768 mm |
| Phase |
|
| Device Mounting | surface |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Net Weight | 98.600 kg |
| Nema Degree Of Protection | NEMA 3R |
| Material | copper: busbar |
| Enclosure Material | steel |
| Width | 589 mm |
| Wiring Configuration | 3-wire |
| Depth | 240 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
| Country of Origin | Mexico |
| Width | 589 mm |
| Height | 1768 mm |
| Weight | 98.600 kg |
| Range Of Product | Meter-Pak |
| Bypass Type | lever bypass |
| Number Of Meter Sockets | 2 |
| Bus Rated Current | 1200 A |
| Product Or Component Type | Meter Center Branch Unit |
| Meter Socket Type | ringless |
| Line Rated Current | 400 A |
| Number Of Jaws | 5 with jaw release |
| Warranty | 18 months |
