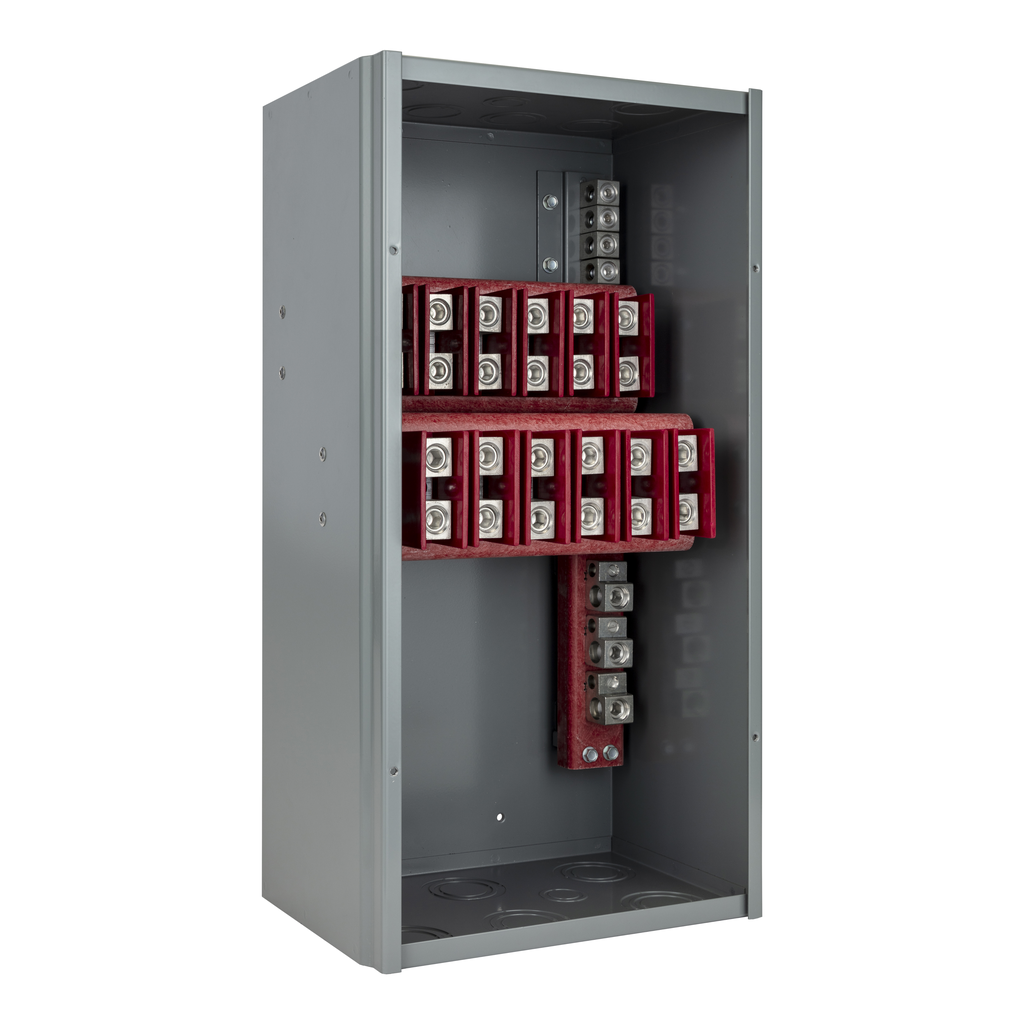

EZM6BTB
Branch terminal box, EZ Meter-Pak, 125A, 6 circuits
Square D™ EZ Meter-Pak™ devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM branch units are supplied with meter sockets and provisions for mounting tenant circuit breakers. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. Residential and commercial branches are available in ring or ringless type. This terminal box is rated 125 A and has 6 circuits.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2005009 |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Product Certifications | UL Listed |
| Height | 584 mm |
| Short-Circuit Current | 100 kA |
| Nema Degree Of Protection | NEMA 1 |
| Width | 308 mm |
| Depth | 203 mm |
| Country of Origin | United States |
| Width | 308 mm |
| Height | 584 mm |
| Number Of Meter Sockets | 6 |
| Product Or Component Type |
|
| Line Rated Current | 125 A |
