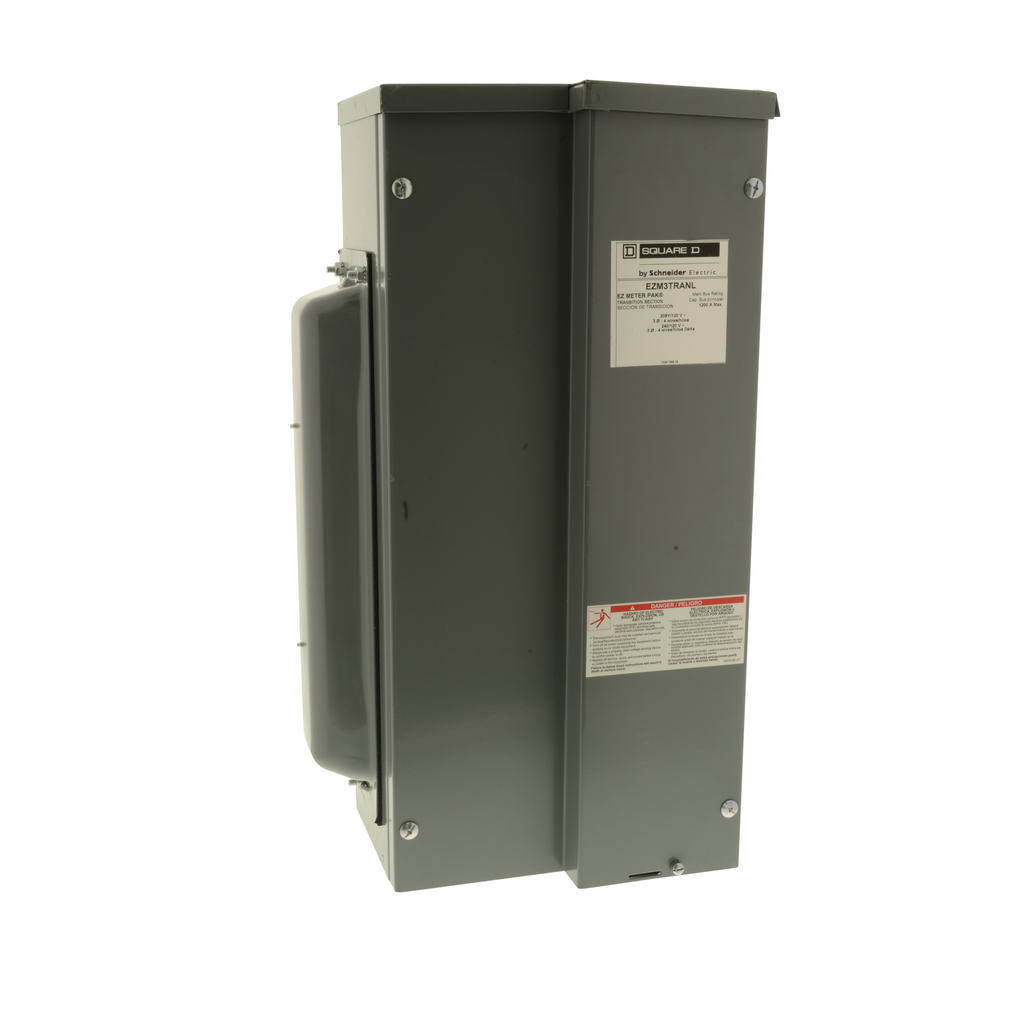

Meter accessory, EZ Meter-Pak, transition section, left, 1200A bus, 3 phase
EZ Meter Pak devices are the industry choice for providing a better solution for multi unit construction needs. EZM main devices are available as main circuit breakers, as main fusible switches or as main lug terminal boxes. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. This EZ Meter Pak transition section allows new sections to the left of an old style 1Ø EZM lineup. This transition section has a 1200 A bus and is for a three phase system. This transition section has a NEMA 3R surface mounting enclosure. The enclosure is 23.25 inches tall, 10.75 inches wide and 8.26 inches deep. The transition section is UL Listed.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Nema Degree Of Protection | NEMA 3R |
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Eu Rohs Directive | Compliant with Exemptions |
| Product Certifications | UL Listed |
| Height | 23.25 in |
| Device Mounting | surface |
| Bus Rated Current | 1200 A |
| Enclosure Material | steel |
| Width | 10.75 in |
| Depth | 8.26 in |
| Line Rated Current | 1200-1200 A |
| Country of Origin | United States |
| Width | 10.75 in |
| Height | 23.25 in |
| Range Of Product | Meter-Pak |
| Device Short Name | EZ |
