EZM3CORNER
Meter accessory, EZ Meter-Pak, bus inside corner section, 1200A bus, 3 phase, 4 wire, Cu, 14.75in W

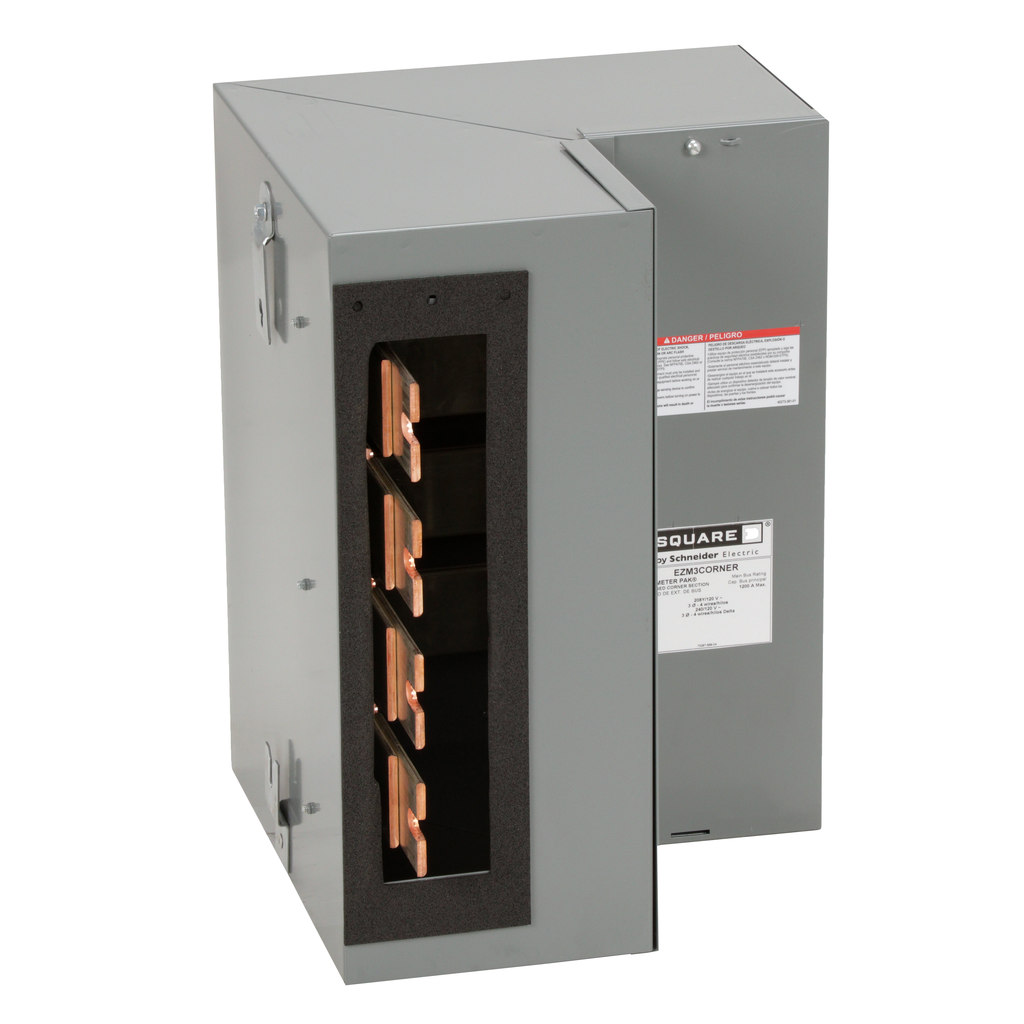

EZ Meter Pak devices are the industry choice for providing a better solution for multi unit construction needs. EZM main devices are available as main circuit breakers, as main fusible switches or as main lug terminal boxes. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. This EZ Meter Pak inside corner section bus has a 1200 A bus. This inside corner section is for a three phase system. This corner section has a NEMA 1 surface mounting enclosure. The enclosure is 19.50 inches tall, 14.40 inches wide and 14.40 inches deep. The inside corner section is UL Listed.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Nema Degree Of Protection | NEMA 3R |
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2011003 |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Product Certifications | UL Listed |
| Height | 19.5 in |
| Device Mounting | surface |
| Bus Rated Current | 1200 A |
| Enclosure Material | steel |
| Width | 14.40 in |
| Depth | 14.40 in |
| Line Rated Current | 1200-1200 A |
| Country of Origin | Mexico |
| Width | 14.40 in |
| Height | 19.5 in |
| Range Of Product | EZ meter-pak |
| Device Short Name | EZ |
Documents
- Square D EZ and MP Meter-Pak Meter Centers Brochure - 4100BR9801 (pdf)
- Spec Sheet
- Metering Equipment: Section 2 - Digest 179 (2024) - Metering-Equipment-Digest-Catalog-0100CT2401-SEC-02 (pdf)
- Square D EZ Meter-Pak Meter Centers Catalog - 4100CT0701 (pdf)
- Digest Catalog 02: Metering Equipment - 0100CT1901_SEC-02 (pdf)
