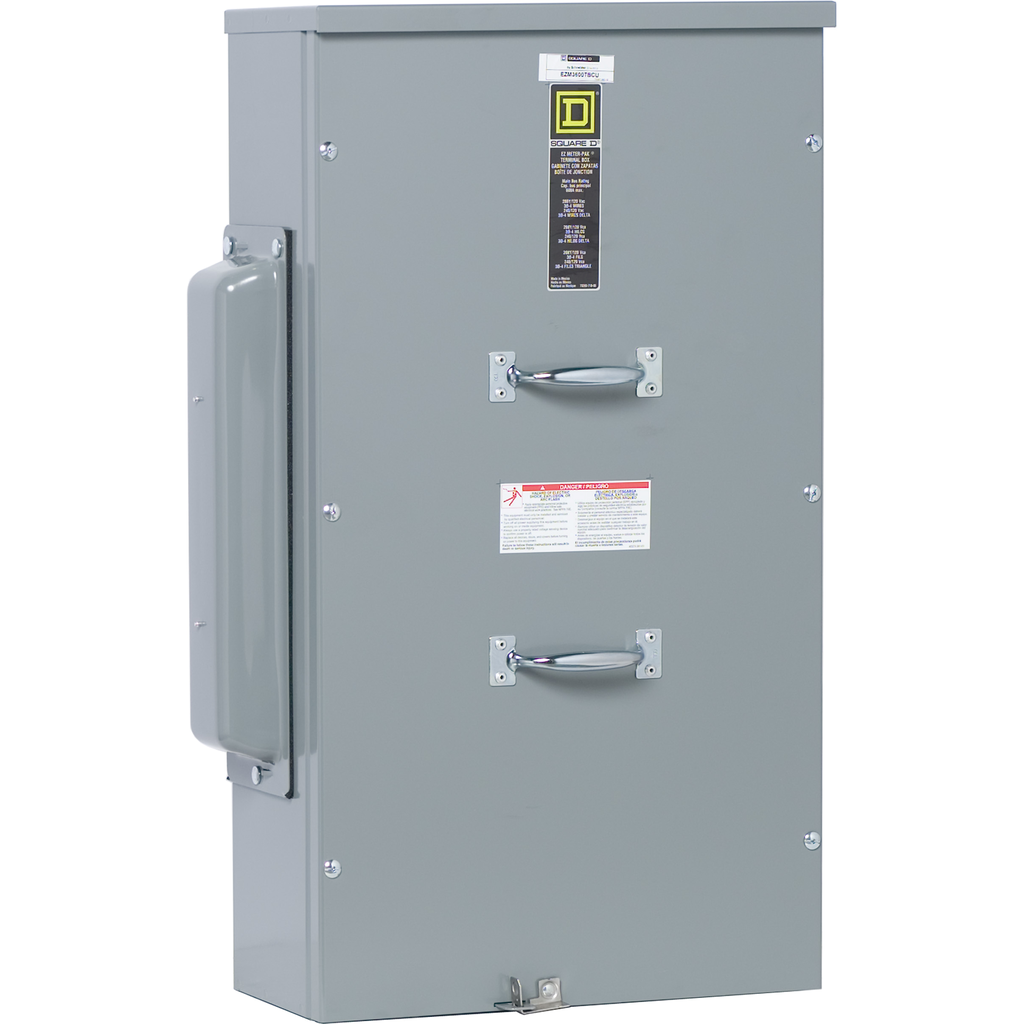

EZM3600TBCU
Main lugs unit, EZ Meter-Pak, 600A, 240VAC max, 3ph/4W, 800A bus, OH/UG, Type 3R, Cu bus
Specifications
| Nema Degree Of Protection | NEMA 3R |
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Eu Rohs Directive | Compliant with Exemptions |
| Product Certifications | UL Listed |
| Height | 17.15 in |
| Device Mounting | surface |
| Bus Rated Current | 600 A |
| Electrical Connection | lugs, line side |
| Material | copper: busbar |
| Enclosure Material | steel |
| Width | 30.46 in |
| Depth | 7.09 in |
| Awg Gauge | AWG 1/0...750 kcmil 2 |
| Country of Origin | Mexico |
| Width | 30.46 in |
| Height | 17.15 in |
| Range Of Product | Meter-Pak |
| Main Type | Main Lugs |
| Product Or Component Type | lug |
| Device Short Name | EZ |
