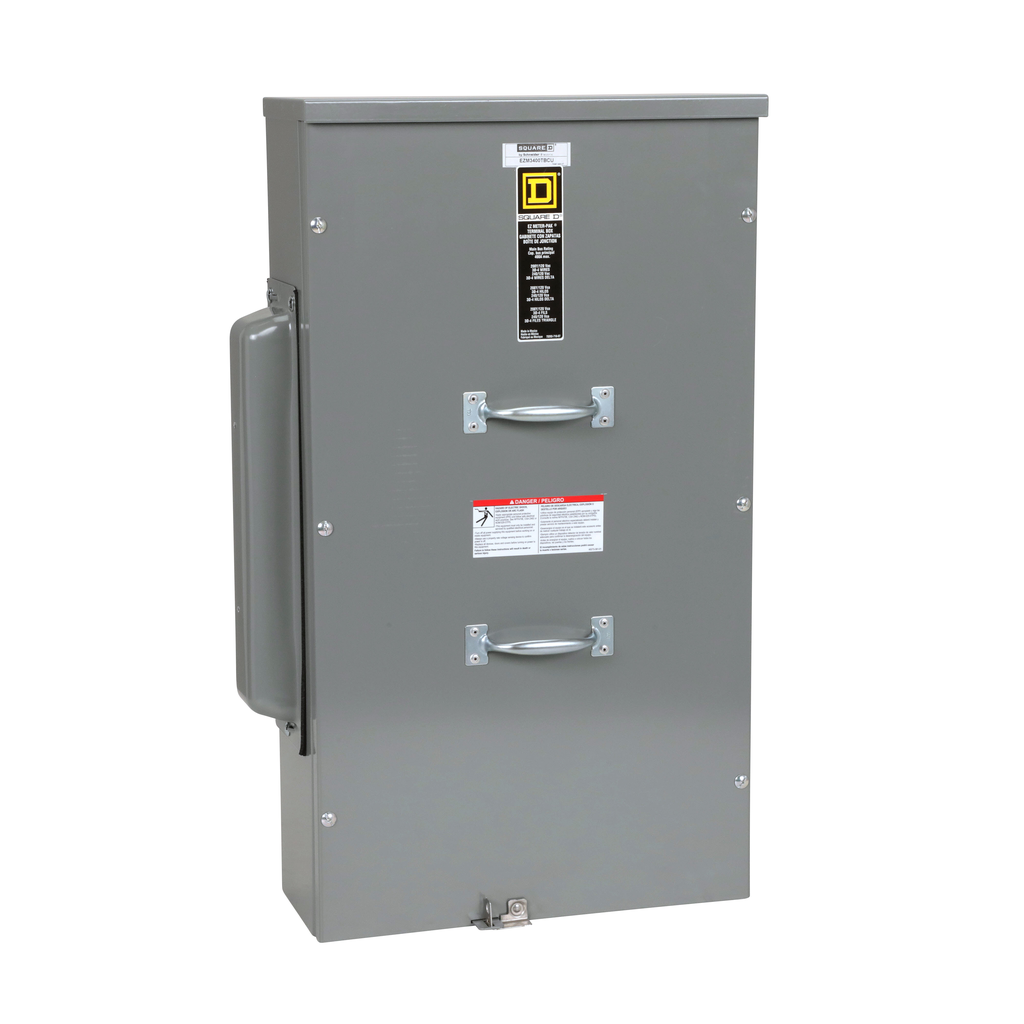

Main lugs unit, EZ Meter-Pak, 400A, 240VAC max, 3ph/4W, 800A bus, OH/UG, Type 3R, Cu bus
Square D™ EZ Meter-Pak™ devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM Busway tap devices have been designed with space savings in mind so that they not only meet challenging job requirements, but the compact footprint also makes them easier to handle and install. This main unit is a main lug terminal box device with underground feed, and has a current rating of 400 A. The horizontal copper bus bar has a rating of 400 A and the unit is available as service equipment for 3 phase, 4 wires applications. Visi-Tite® nut eliminates the need for time-consuming torque readings when connecting devices. External mounting channels permits immediate installation with no disassembly or adjustment required. Meets EUSERC Standards up to 1200A max.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Nema Degree Of Protection | NEMA 3R |
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Eu Rohs Directive | Compliant with Exemptions |
| Product Certifications | UL Listed |
| Height | 30.46 in |
| Device Mounting | surface |
| Bus Rated Current | 400 A |
| Electrical Connection | lugs, line side |
| Material | copper: busbar |
| Enclosure Material | steel |
| Width | 17.15 in |
| Depth | 7.09 in |
| Country of Origin | Mexico |
| Width | 17.15 in |
| Height | 30.46 in |
| Range Of Product | EZ meter-pak |
| Main Type | Main Lugs |
| Device Short Name | EZ |
