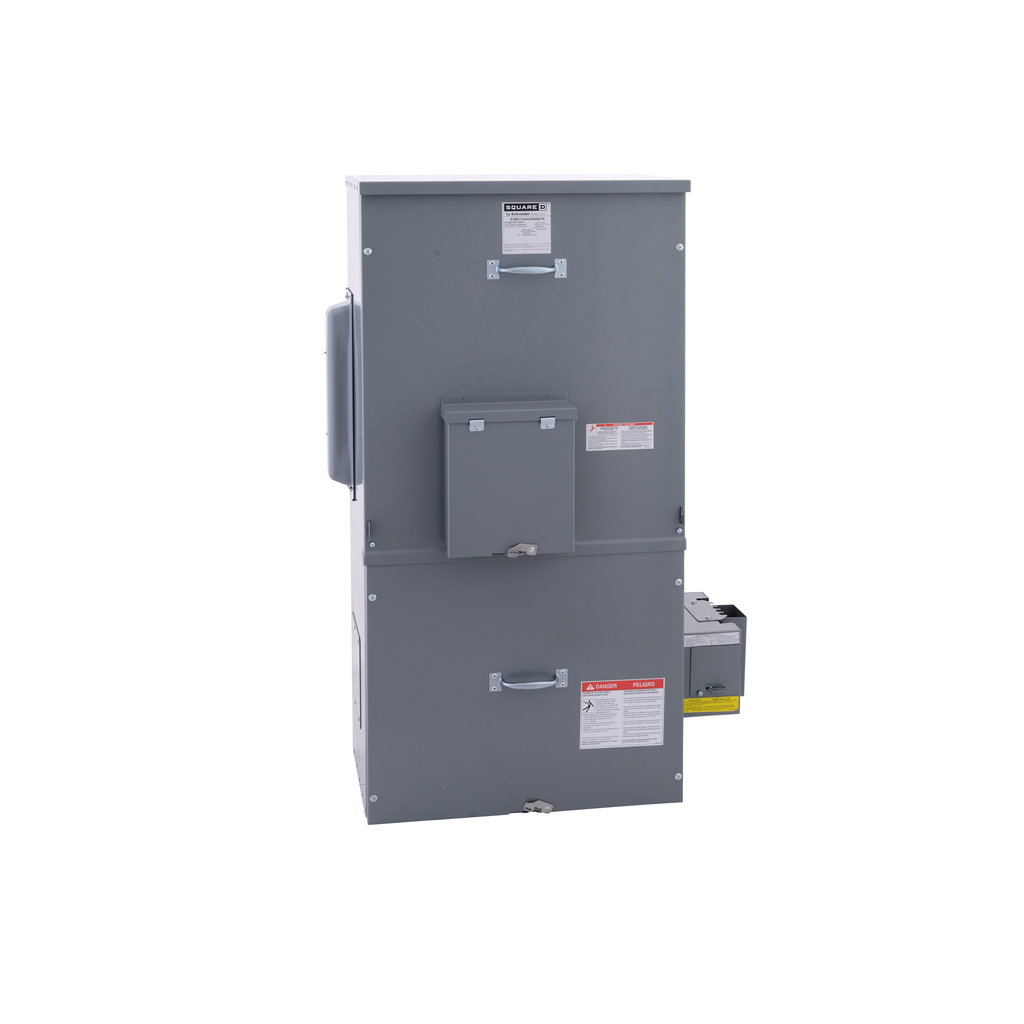

Main circuit breaker busway tap right, EZ Meter-Pak, 1200A, 240VAC max, 3ph/4W, 1200A bus, 65kA, neut front, Type 1
Square D EZ Meter-Pak meter centers provide reliable, versatile, and compact multi metering equipment for multi unit residential and commercial construction. The main devices are available as main circuit breakers, main fusible switches, or main lug terminal boxes. The compact footprint makes them easier to handle and install. Visi-Tite nuts eliminate the need for time-consuming torque readings when connecting devices. External mounting channels permit immediate installation with no disassembly or adjustment required. EZM main devices are suitable for use as service equipment with required grounding and bonding. This busway right tap main circuit breaker provides 3 phases in, 3 phases out for a 4 wire configuration. It accepts 208Y/120VAC and 240/120VAC delta incoming service from busway feeds with front neutral installation. The unit is rated for 1200A with the busbar rated for 1200A. It has a short circuit current rating of 65kA. The enclosure is painted steel Type 3R. This EZ Meter-Pak meter center complies with UL standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | UL Listed |
|---|---|
| Nema Degree Of Protection | NEMA 1 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 50.48 in |
| Phase |
|
| Device Mounting | surface |
| [Ue] Rated Operational Voltage |
|
| Bus Rated Current | 1200 A |
| Type Of Installation | indoor |
| Main Rated Current | 1200 A |
| Electrical Connection |
|
| Enclosure Material | painted steel |
| Width | 22.36 in |
| Wiring Configuration | 4-wire |
| Depth | 13.63 in |
| Country of Origin | Mexico |
| Width | 22.36 in |
| Height | 50.48 in |
| Range Of Product | EZ meter-pak |
| Main Type | Main Circuit Breaker |
| Provided Equipment |
|
| Product Or Component Type | meter center main unit |
