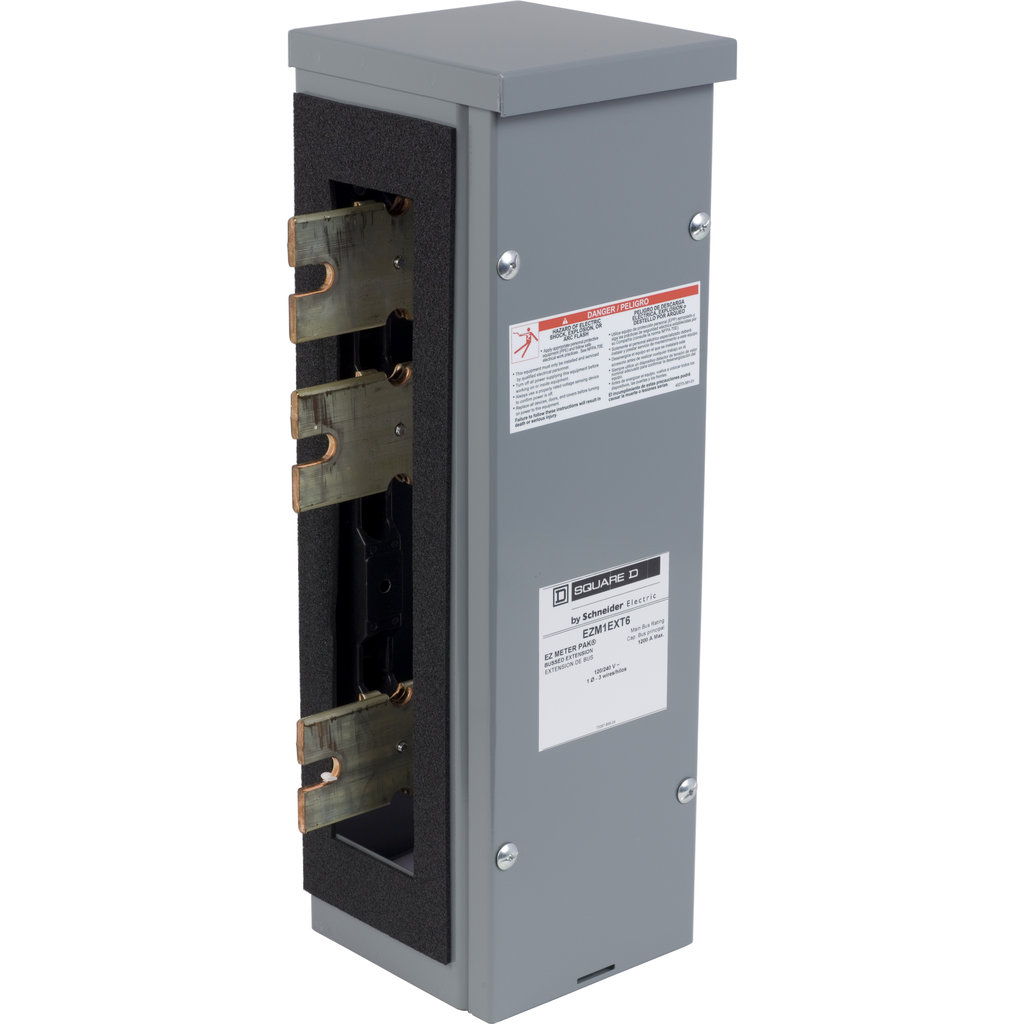

EZM1EXT
Meter accessory, EZ Meter-Pak, bus extension, 1 phase, 1200A bus, 12in W
Square D™ EZ Meter-Pak™ Meter centers bussed extensions provide separation between enclosures. This is used when avoidance of building obstructions is needed. The bussed extension occupies an area 19.25 in (489 mm), H x 12.0 in (304 mm) or 6.0 in (152 mm) W, and is positioned vertically in line with the horizontal cross bus of a main and branch unit enclosures. Extensions provide additional space between the main device and the branch unit where needed to meet local utility requirements. Bus extension is supplied with 1200 A horizontal main cross bus and provisions for padlocking or sealing by the utility.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Nema Degree Of Protection | NEMA 3R |
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Eu Rohs Directive | Compliant with Exemptions |
| Conductor Material | copper |
| Height | 11.66 in |
| Phase | 3 phase indoor/outdoor |
| Bus Rated Current | 1200 A |
| Type Of Installation | indoor/outdoor |
| Width | 19.34 in |
| Depth | 6.37 in |
| Line Rated Current | 1200-1200 A |
| Country of Origin | United States |
| Width | 19.34 in |
| Height | 11.66 in |
| Range Of Product | EZ meter-pak |
| Product Or Component Type | bus extension kit |
| Device Short Name | EZ |
