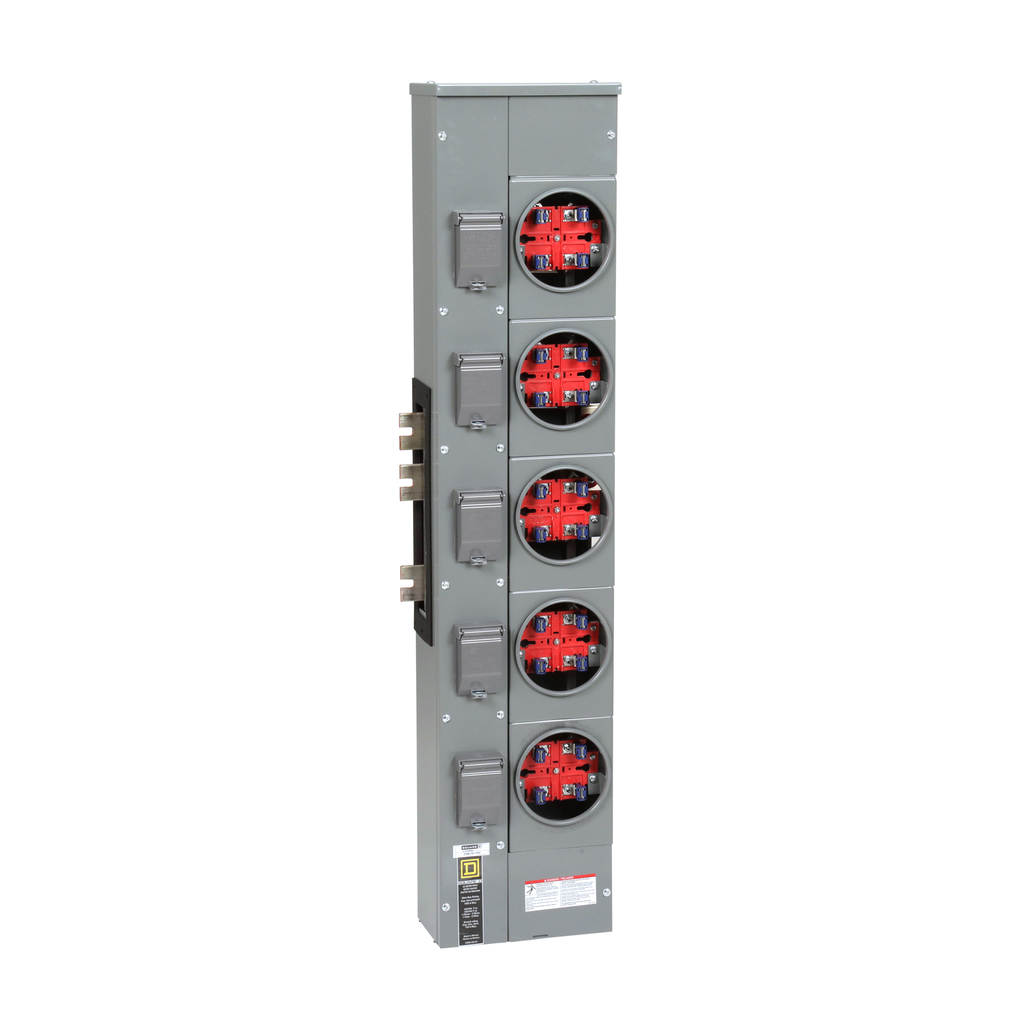

Branch unit, EZ Meter-Pak, 125A, 5 x 4 jaw sockets, 120/240VAC, no bypass, ringed, 1200A Al/Cu busbar
Square D™ EZ Meter-Pak™ devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM branch units are supplied with meter sockets and provisions for mounting tenant circuit breakers. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. Residential and commercial branches are available in ring or ringless type. This branch unit is ringed and rated 125A. It has 5 four jaw sockets for use. The system voltage is 120/240 VAC and has no bypass. It includes a 1200 A aluminium/copper busbar. It is compliant with UL standards and the steel enclosure has a rating of NEMA 3R.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Width | 311 mm |
|---|---|
| Height | 1451 mm |
| Weight | 32.700 kg |
| Range Of Product | Meter-Pak |
| Bypass Type | no bypass |
| Number Of Meter Sockets | 5 |
| Bus Rated Current | 1200 A |
| Product Or Component Type | Meter Center Branch Unit |
| Meter Socket Type | ringed |
| Line Rated Current | 125 A |
| Number Of Jaws | 4 without jaw release |
| Product Certifications | UL Listed |
| Height | 1451 mm |
| Phase |
|
| Device Mounting | surface |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Net Weight | 32.700 kg |
| Nema Degree Of Protection | NEMA 3R |
| Material | aluminium/copper: busbar |
| Enclosure Material | steel |
| Width | 311 mm |
| Wiring Configuration | 3-wire |
| Depth | 180 mm |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
