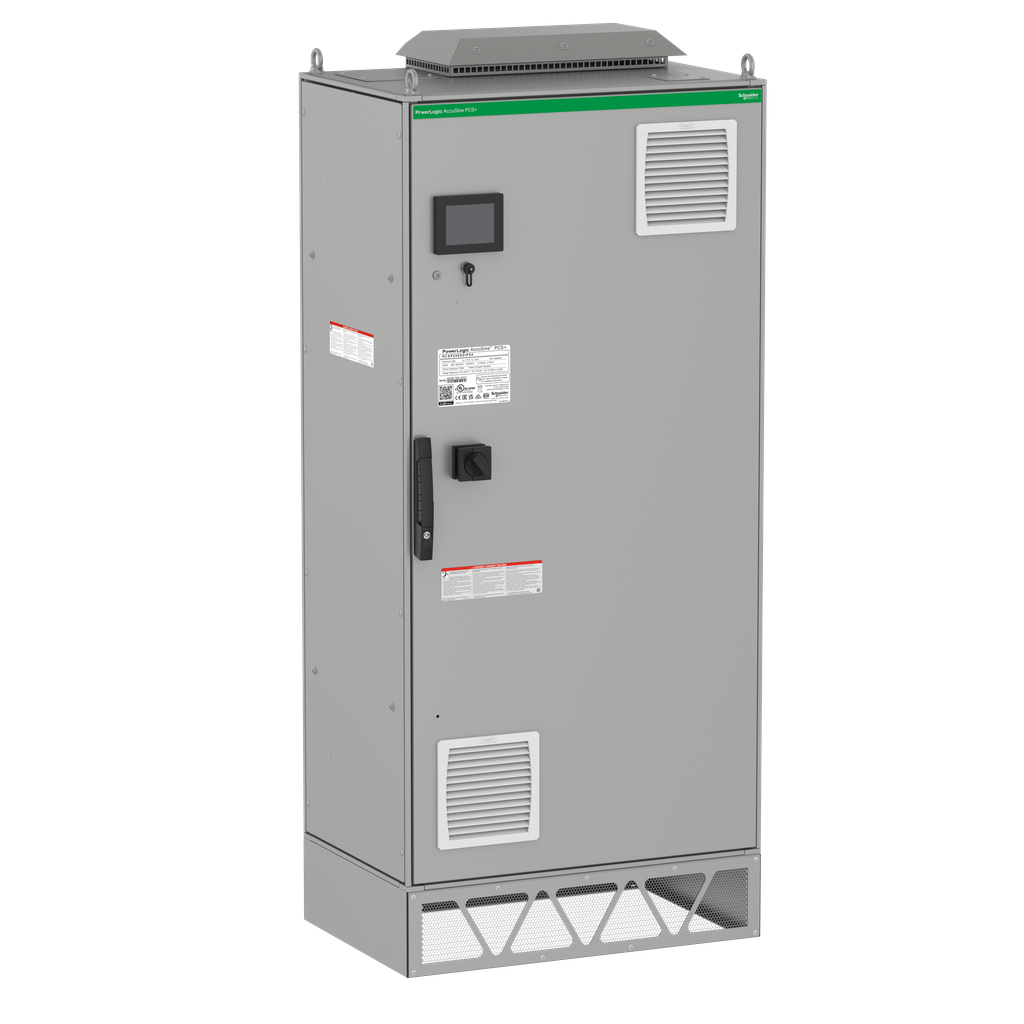

Electronic VAR control - 300 A 380..480 V AC - IP54 enclosure
This hardware is an active power correction solution, from AccuSine familly, to help stabilize electrical networks by providing swift power factor correction and load balancing. It is specifically designed for harsh electrical conditions, for heavy industrial applications including mission critical environments. This version is ingress protection IP54, and can be connected on Low Voltage networks rated 380 Volt to 480 Volt. It is specified for a standard Root Mean Square output current rating of 300 Amps. The enclosure is floor standing, allow cable entry from top or bottom and is delivered in RAL7035 light grey. This active power filter which achieves above standards performance is certified to CE, UL, IBC 2015 AC156, EAC, RCM. And is designed to IEC 62477-1, IEC 61000-6-2, IEC 61000-6-4, IEC 61439-1, UL508 and IEEE 519-2014. Up to 10 units of different ratings can be paralleled, to achieve a maximum VAR injection of 2500 kVar either leading or lagging per current transformer set. Frame exterior dimensions are 900 millimetres in width, 600 millimetres in depth, 2100 millimetres in height and product weight 436 kg.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | AccuSine |
|---|---|
| Product Or Component Type | electronic VAR controller |
| Product Name | AccuSine PFV+ |
| Warranty | 18 months |
| Electromagnetic Compatibility | conducted EMC, class A EN 61000-6-4 |
| Accessibility For Operation | front |
| Function Available | rear plenum with forced ventilation for high heat flow |
| Input Frequency | 50/60 Hz +/- 3 % auto-sensing |
| Reactive Power Rating | 249 kvar 480 V AC 50/60 Hz |
| Breaking Capacity | 200 kA |
| Enclosure Mounting | floor-standing |
| Nominal Output Current | 300 A |
| Poles Description | 3P |
| Network Rated Voltage | 380-480 V AC |
| Protection Type | circuit breaker protection |
| Operating Mode |
|
| Location Of Connection | top or bottom |
| Maximum Permissible Voltage | 1.1 x Un |
| Wiring Mode | 3 or 4 wires |
| Mounting Location | indoor |
| Control Type | door-interlocked with rotary handle |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Product Certifications |
|
| Relative Humidity | 0-95 % |
| Height | 2100 mm |
| Ambient Air Temperature For Storage | -20-60 °C |
| Standards |
|
| Ambient Air Temperature For Operation |
|
| Operating Altitude | <= 3280.84 ft (1000 m) 1 % per 100 m |
| Color | Light gray RAL 7035) |
| Width | 900 mm |
| Environmental Characteristic |
|
| Depth | 600 mm |
| Ip Degree Of Protection | IP54 |
| Impregnation Material | conformal coated |
