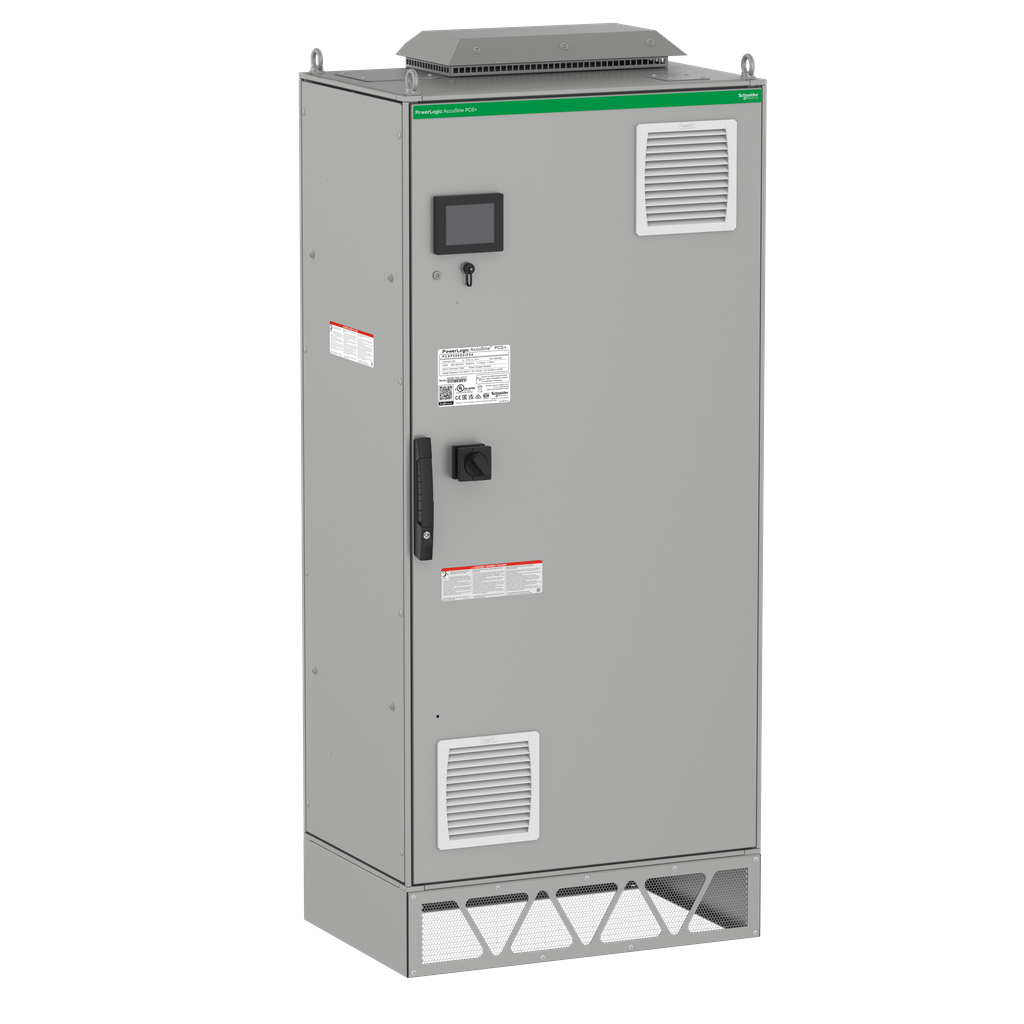

EVCP200D5IP54 – Electronic VAR control – 200 A 380..480 V AC – IP54 enclosure
EVCP200D5IP54
Electronic VAR control - 200 A 380..480 V AC - IP54 enclosure

This hardware is an active power correction solution, from AccuSine familly, to help stabilize electrical networks by providing swift power factor correction and load balancing. It is specifically designed for harsh electrical conditions, for heavy industrial applications including mission critical environments. This version is ingress protection IP54, and can be connected on Low Voltage networks rated 380 Volt to 480 Volt. It is specified for a standard Root Mean Square output current rating of 200 Amps. The enclosure is floor standing, allow cable entry from top or bottom and is delivered in RAL7035 light grey. This active power filter which achieves above standards performance is certified to CE, UL, IBC 2015 AC156, EAC, RCM. And is designed to IEC 62477-1, IEC 61000-6-2, IEC 61000-6-4, IEC 61439-1, UL508 and IEEE 519-2014. Up to 10 units of different ratings can be paralleled, to achieve a maximum VAR injection of 2500 kVar either leading or lagging per current transformer set. Frame exterior dimensions are 900 millimetres in width, 600 millimetres in depth, 2100 millimetres in height and product weight 402 kg.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Range Of Product AccuSine
Product Or Component Type electronic VAR controller
Product Name AccuSine PFV+
Warranty 18 months
Accessibility For Operation front
Reactive Power Rating 166 kvar 480 V AC 50/60 Hz
Breaking Capacity 200 kA
Network Rated Voltage 380-480 V AC
Operating Mode
  • mains current balancing
  • volt-var support
  • power factor correction
Mounting Location indoor
Control Type door-interlocked with rotary handle
Electromagnetic Compatibility conducted EMC, class A EN 61000-6-4
Function Available rear plenum with forced ventilation for high heat flow
Input Frequency 50/60 Hz +/- 3 % auto-sensing
Enclosure Mounting floor-standing
Nominal Output Current 200 A
Poles Description 3P
Protection Type circuit breaker protection
Location Of Connection top or bottom
Maximum Permissible Voltage 1.1 x Un
Wiring Mode 3 or 4 wires
Rohs Exemption Information Yes
Mercury Free Yes
Toxic Heavy Metal Free Yes
Reach Regulation Free of Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive Compliant
Product Certifications
  • CE
  • ABS
  • RCM
  • cULus
Height 2100 mm
Standards
  • CSA C22.2 No 14
  • UL 508
  • EN 60439-1
  • UL 60947-1
  • EN 61000-6-4
  • CSA C22.2 No 60947-1-07
Ambient Air Temperature For Operation
  • 0-40 °C
  • 0-50 °C maximum with current derating of 2 % per °C
Environmental Characteristic
  • operating 3C2 IEC 60721-3-3
  • operating 3S2 IEC 60721-3-3
  • storage 3C3 IEC 60721-3-3
  • storage 3S3 IEC 60721-3-3
Impregnation Material conformal coated
Relative Humidity 0-95 %
Ambient Air Temperature For Storage -20-60 °C
Operating Altitude <= 3280.84 ft (1000 m) 1 % per 100 m
Color Light gray RAL 7035)
Width 900 mm
Depth 600 mm
Ip Degree Of Protection IP54
