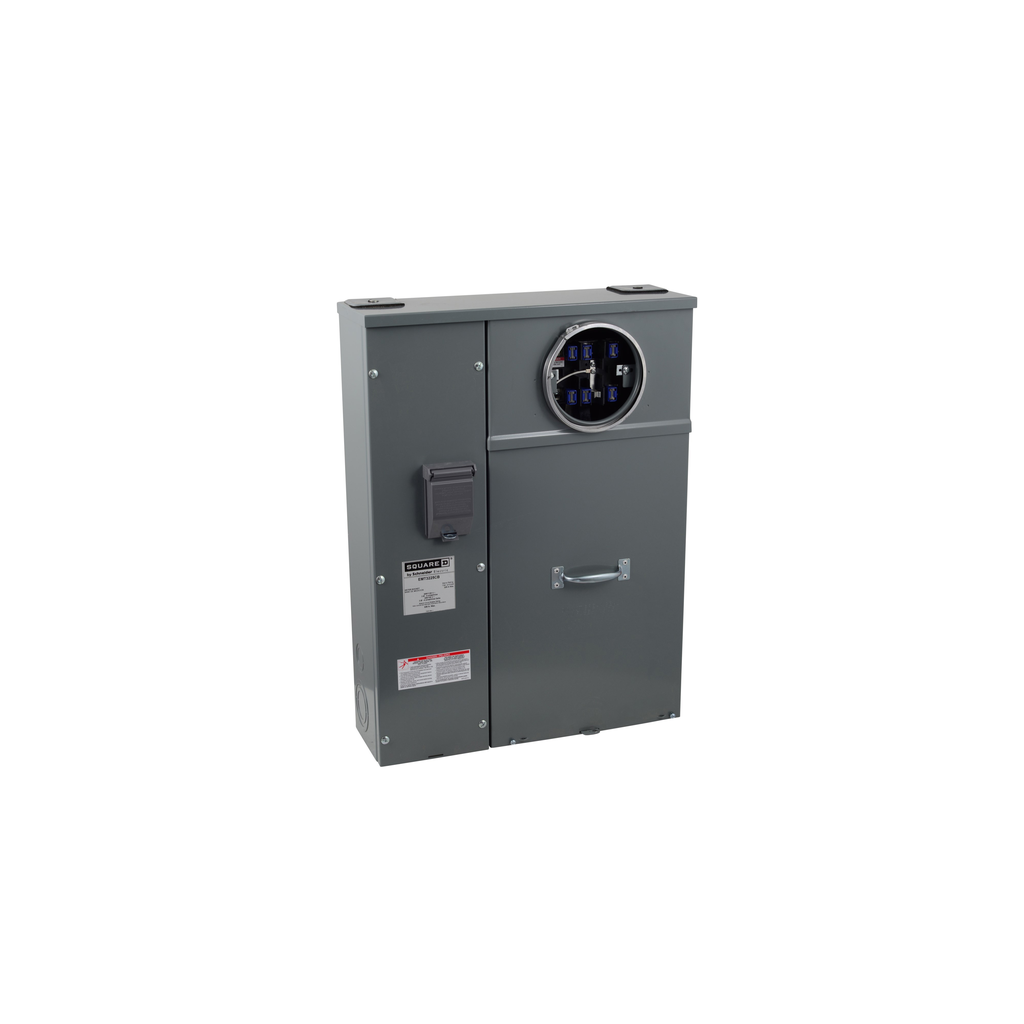

EMT3225CB
Individual meter main, testr block bypass, OH, UG, 200 A, 3 phase 4 wire, 208Y/120 VAC or 240/120 VAC Delta, 7 jaw
Individual meter main with test block bypass meets EUSERC requirements. This individual meter socket is designed for 3 phase 4W incoming system and outgoing service. The rated operational voltage is 208Y/120 VAC or 240/120 VAC Delta. The meter socket can be feed from an overhead or underground service. This individual meter socket has a ringed socket with 7 jaws. The meter socket is rated 200 A. The lugs will accept 6 AWG to 300 kcmil copper or aluminum wire. This unit has a NEMA 3R flush mounting enclosure that is 30.00 inches tall, 22.44 inches wide and 7.50 inches deep. This Individual meter main with test block bypass is UL listed.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Nema Degree Of Protection | NEMA 3R |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Eu Rohs Directive | Compliant with Exemptions |
| Service Feed Location |
|
| Height | 30.00 in |
| Meter Socket Rated Current | 225 A |
| Device Mounting | flush |
| [Ue] Rated Operational Voltage |
|
| Bypass Type | test block bypass |
| Electrical Connection | lugs |
| Phase | 3 phase |
| Enclosure Material | steel |
| Awg Gauge | AWG 6...300 kcmil aluminium/copper) |
| Wiring Configuration | 4-wire |
| Width | 22.44 in |
| Depth | 7.50 in |
| Number Of Jaws | 7 |
| Country of Origin | United States |
| Width | 22.44 in |
| Height | 30.00 in |
| Product Or Component Type | Meter Socket |
| Hub Type | A ACP closing plate |
| Meter Socket Type | ringed |
