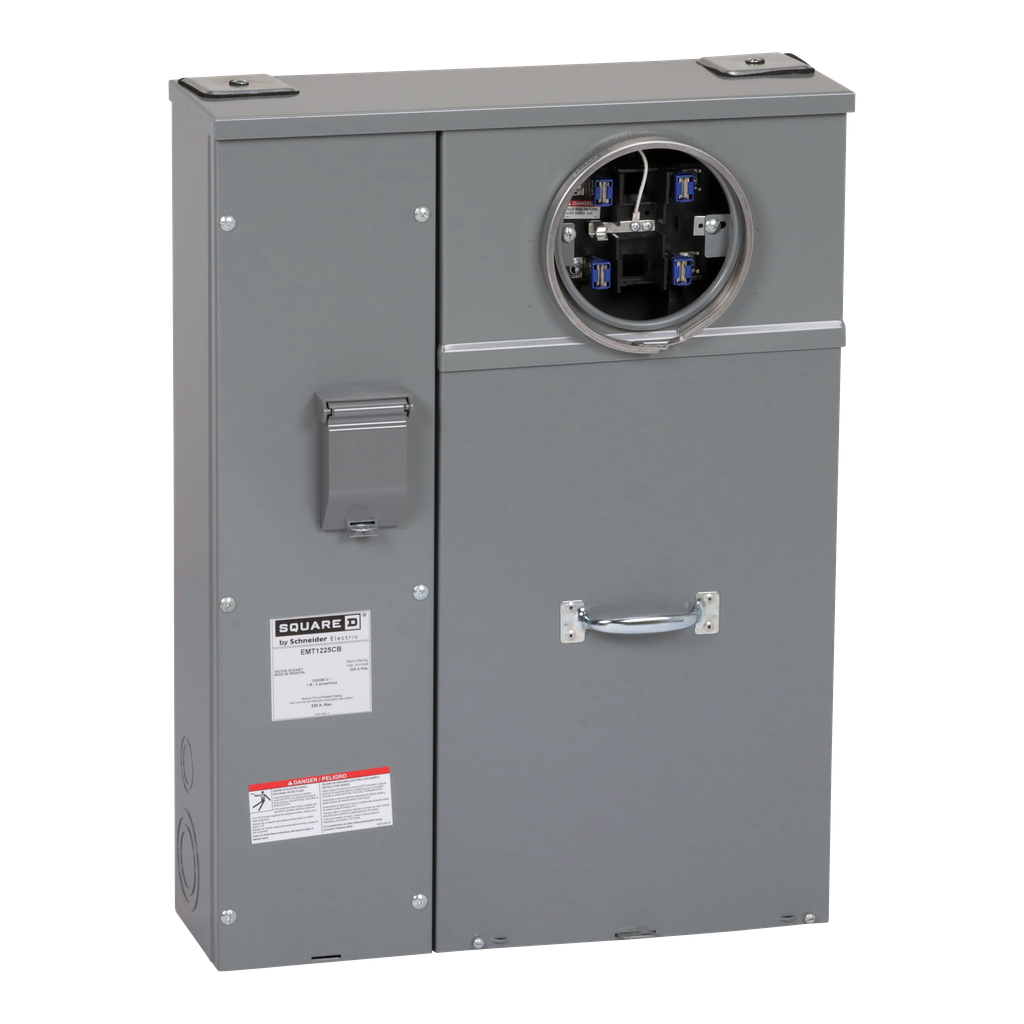

EMT1225CB
Meter socket, ringed, 1 phase, 3 wire, 225A, 5 jaws, 120/240VAC, Series A, test block bypass, EUSERC
Specifications
| Product Certifications |
|
|---|---|
| Nema Degree Of Protection | NEMA 3R |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant with Exemptions |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Service Feed Location |
|
| Height | 30.00 in |
| Meter Socket Rated Current | 225 A |
| Device Mounting | flush |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Bypass Type | test block bypass |
| Enclosure Material | steel |
| Awg Gauge | AWG 6...300 kcmil aluminium/copper) |
| Wiring Configuration | 3-wire |
| Width | 22.44 in |
| Electrical Connection | lugs |
| Depth | 7.50 in |
| Number Of Jaws | 5 |
| Phase | 1 phase |
| Country of Origin | Mexico |
| Width | 22.44 in |
| Height | 30.00 in |
| Hub Type | A ACP closing plate |
| Meter Socket Type | ringed |
| Product Or Component Type | Meter Socket |
