EMS59572 - PowerLogic VTs voltage adapter, from 47 to 240 V, overvoltage cat II

EMS59572

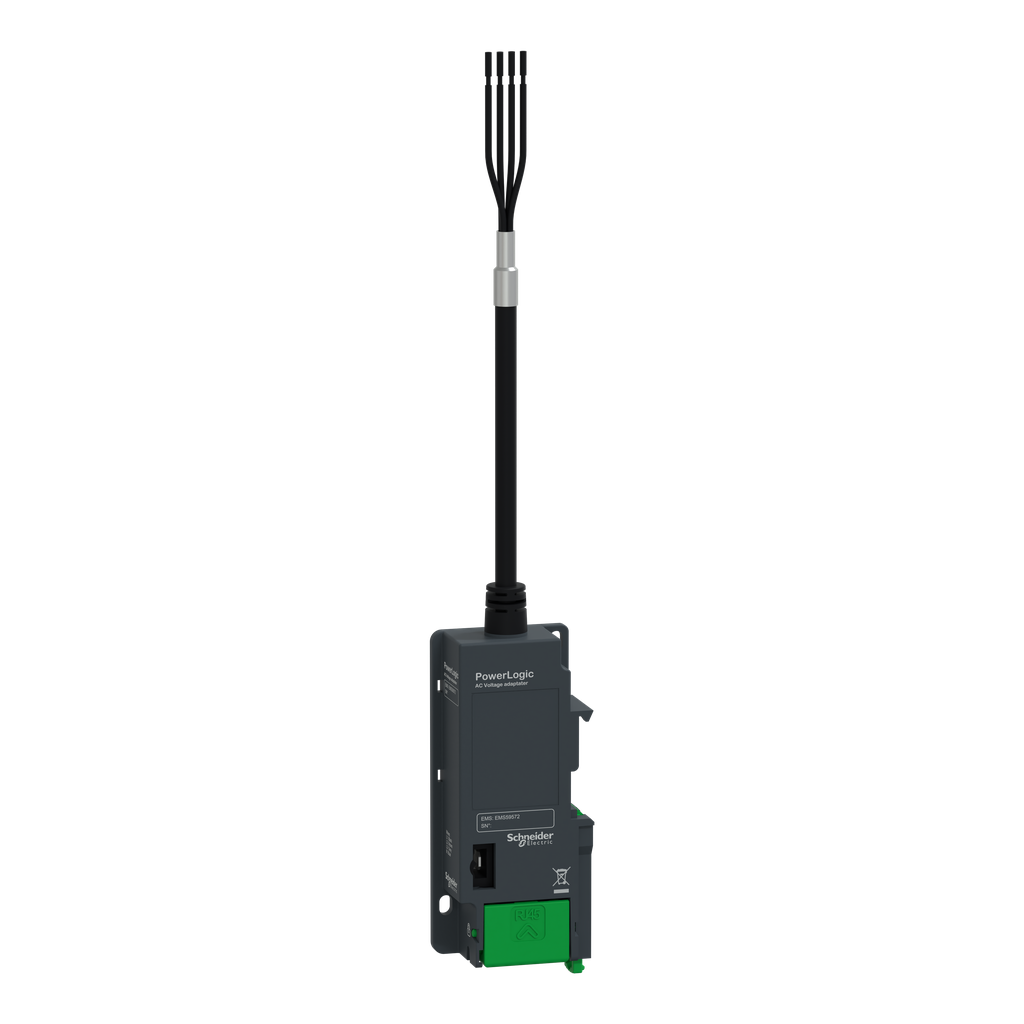

PowerLogic VTs voltage adapter, from 47 to 240 V, overvoltage cat II

This adaptor Easergy T300 is required for voltage sensor used with SC150 module. The Un rated voltage is 11 to 36 Kv. The input voltage Phase-to-phase 38VAC to 400VAC and 22 VAC to 240 VAC for Phase-to-neutral. It include 4 wires inputs, and RJ45 communication port for output. Complient to standards IEC 60044-2, CE certification. The operating and storage temperature is -40°C to + 85°C. Mechanical dimensions are 50 mm in height, 50 mm in width and 100 mm in length.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	CE
Ik Degree Of Protection	IK07 conforming to IEC 62262
Ambient Air Temperature For Operation	-40-85 °C
Height	50 mm
Standards	IEC 60044-2
Mounting Support	DIN rail
Environmental Characteristic	salt mist 200 h IEC 60068-2-11
Length	100 mm
Net Weight	0.043 kg
Ip Degree Of Protection	IP30 conforming to IEC 60529
Ambient Air Temperature For Storage	-40-85 °C
Relative Humidity	95-95 % conforming to IEC 60068-2-30
Fire Resistance	850 °C IEC 60695-2-11
Width	100 mm
Operating Altitude	<= 6561.68 ft (2000 m)
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1411007_V1
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI1411007_V1
Eu Rohs Directive	Compliant with Exemptions
Country of Origin	China
Length	100 mm
Width	100 mm
Height	50 mm
Weight	0.043 kg
Range Of Product	PowerLogic T300
Product Or Component Type	voltage adaptor
Network Frequency	50/60 Hz
Electrical Connection	output: connector RJ45 input: 4 wires 1-1 mm²
Input Voltage Limits	630 V L-L)
Overvoltage Category	III
Input Voltage	38...400 V AC L-L) 22...240 V AC L-N)
Rated Voltage	11-36 kV

PowerLogic VTs voltage adapter, from 47 to 240 V, overvoltage cat II
