EMS59300 - PowerLogic LV150: low voltage power monitoring and transformer thermal monitoring

EMS59300

PowerLogic LV150: low voltage power monitoring and transformer thermal monitoring

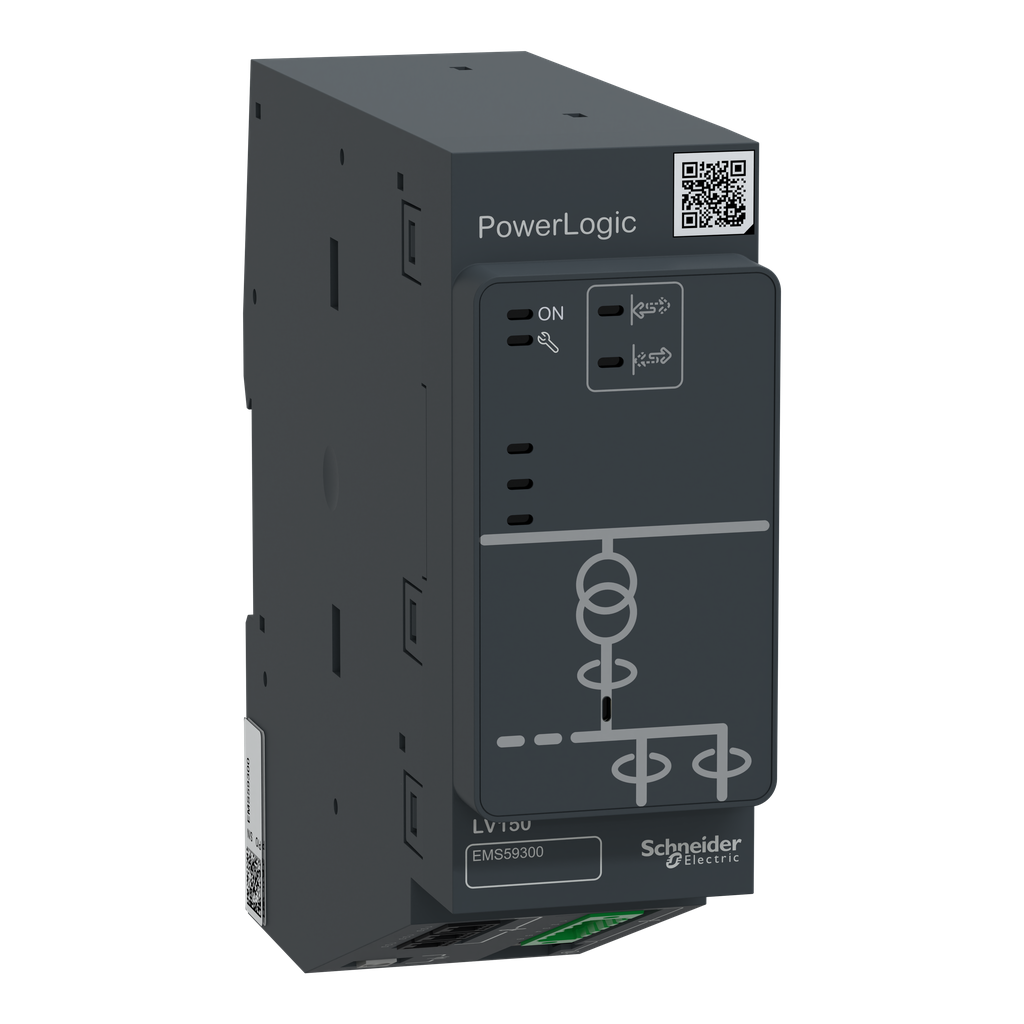

The Easergy LV150 is an unmatched low voltage monitoring module designed for the public MV/LV substation. The main functions of LV150 are: transformer temperature monitoring, LV incomer power and quality monitoring, LV network voltage fault detection. It offers class 0.5 current and voltage, and class 1 energy system accuracy. The degree of protection is IP2x body and IP4x in the front. The degree of protection is IK07. It complies with CE certificat. The operating temperature is -40°C to + 70°C. The storage temperature is -40°C to + 85°C. It include 8 gigital inputs, and communication port ethernet 2 RJ45. The device dimensions are 45mm in width, 140mm in height, 140 in depth, and weight 0.46 kilograms.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Communication Port Support	2 ETHERNET RJ45
Measurement Voltage	: 0-30 V AC at 50/60 Hz (single or three phases)
Memory Capacity	4 MB
Protection Type	ANSI 47 : negative sequence overvoltage ANSI 27 : undervoltage ANSI 59 : overvoltage ANSI 59N : neutral voltage displacement ANSI 37 : phase undercurrent
Product Or Component Type	low voltage and transformer monitoring
Measurement Current	5-5 A 1-1 A
Number Of Inputs	8 digital conforming to IEC 61131-2 type 3
[Us] Rated Supply Voltage	12...48 V DC +/- 20 %
Communication Port Protocol	IEC 60870-5-104
Power Consumption In Va	2 VA
Software Function	assistance in commissioning and operating the installation alarm reports and diagrams security/authority verification Operating/Status report event log
Control Type	illuminated push-button status:
Data Recording	sequence of event recording sag and swell logs counter harmonics logs event logs demand values min/max of instantaneous values current value before fault
Analogue Input Type	current 0.01...35 A (impedance 0.001 Ohm)4 x
Type Of Measurement	current: class 0.5 voltage: class 0.5 energy: class 1 conforming to IEC 61557-12
Synchronisation Time Between Inputs	1 ms
Power Quality Analysis	voltage sag and swell detection voltage unbalance individual harmonics harmonic distortion voltage magnitude
Product Certifications	CE
Ik Degree Of Protection	IK07 conforming to IEC 62262
Ambient Air Temperature For Operation	-40-70 °C
Height	140 mm
Standards	IEC 60255-27 IEC 61557-12 IEC 62586-1 IEC 61000-4-30:class S IEC 61850
Electromagnetic Compatibility	electrical fast transient/burst immunity test - test level: level 4 criteria A conforming to IEC 61000-4-4 conducted RF disturbances - test level: level 3 criteria A conforming to IEC 61000-4-6 conducted disturbance emission - test level: level 4 criteria A conforming to IEC 61000-4-16 100 kHz damped oscillating wave - test level: level 3 criteria A conforming to IEC 61000-4-12 radiated radio-frequency electromagnetic field immunity test - test level: level 4 criteria A conforming to IEC 61000-4-3 immunity to voltage dips criteria A conforming to IEC 61000-4-29 electrostatic discharge - test level: level 4 criteria B conforming to IEC 61000-4-2 surge immunity test - test level: level 3 criteria A conforming to IEC 61000-4-5 magnetic field at power frequency - test level: level 5 criteria B conforming to IEC 61000-4-8 conducted and radiated emissions class A conforming to EN 55022
Net Weight	0.46 kg
Fixing Mode	clip-in (DIN rail)
Ambient Air Temperature For Storage	-40-85 °C
Relative Humidity	5-95 % conforming to IEC 60068-2-30
Ip Degree Of Protection	IP2X body: conforming to IEC 60529 IP4X front: conforming to IEC 60529
Type Of Installation	indoor outdoor in cabinet
Mechanical Robustness	vibrations 10-2000 Hz 1 gn 10 cycles conforming to IEC 60068-2-6 bumps 10 gn 16 ms 1000 bumps non energized conforming to IEC 60068-2-29 shocks 10 gn 11 ms 3 pulses in operation conforming to IEC 60068-2-27
Width	45 mm
Depth	140 mm
Operating Altitude	9842.52 ft (3000 m)
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1605007_V2
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI1605007_V3
Eu Rohs Directive	Compliant with Exemptions
Country of Origin	France
Width	45 mm
Height	140 mm
Weight	0.46 kg
Range Of Product	PowerLogic T300
Device Short Name	LV150
