EMS59201 - PowerLogic SC150 CT-LPVT/VT: Switch controller, 1/5 A, LPVT/VT sensors

EMS59201

PowerLogic SC150 CT-LPVT/VT: Switch controller, 1/5 A, LPVT/VT sensors

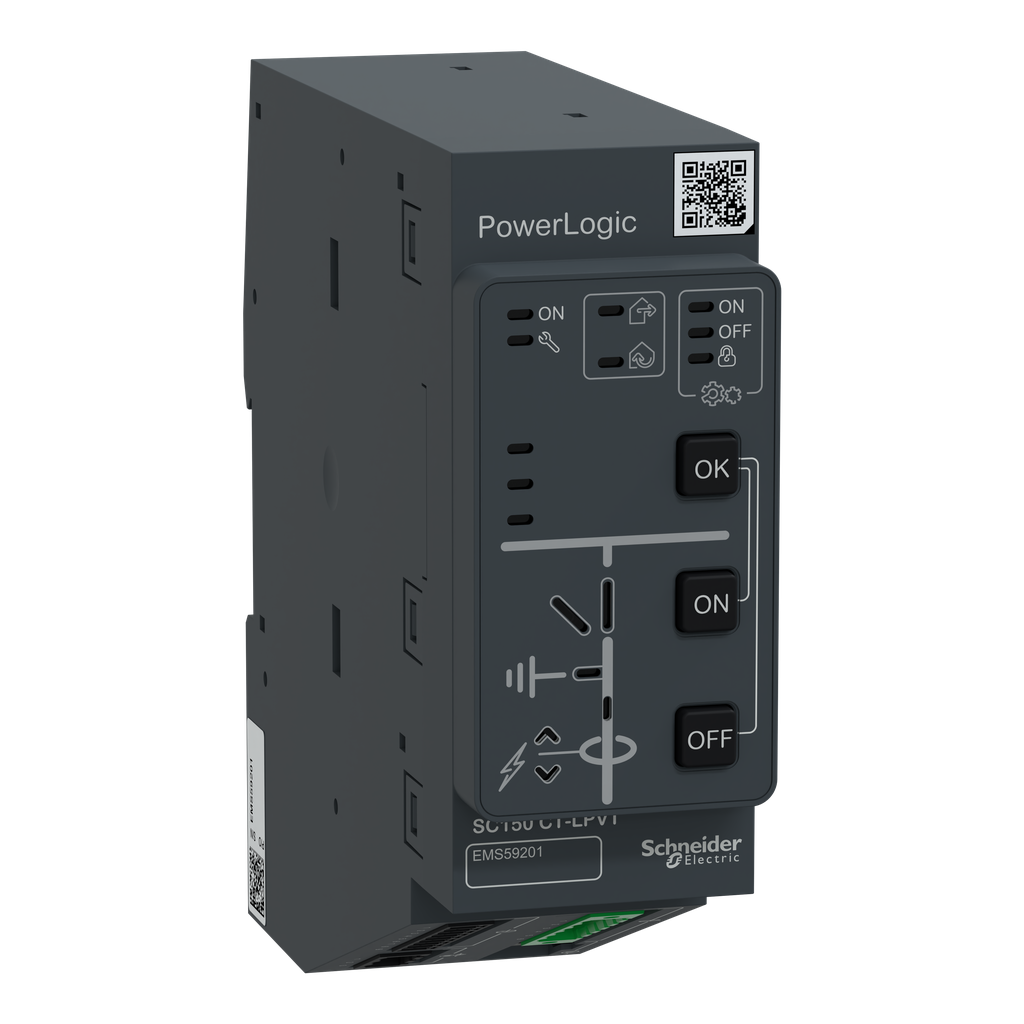

The Easergy SC150 module offers many high-performance features needed to measure and detect a fault current on the MV line. The switch controller are designed for clip in DIN rail. The measurement voltage range from 0…10 VAC LPVT and from 47…240 VAC VTs. It include 8 digital inputs, 2 digital relay switch, and 2 RJ45 communication port. The operating temperature is -40°C to + 70°C. The storage temperature is -40°C to + 85°C. Mechanical dimensions are 140 mm in height, 45 mm in width and 140 mm in depth.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1605007_V2
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI1605007_V3
Eu Rohs Directive	Compliant with Exemptions
Communication Port Support	2 ETHERNET RJ45
Measurement Voltage	: 0-10 V LPVT AC at 50/60 Hz (single or three phases) : 47-240 V VTs AC at 50/60 Hz (single or three phases)
Number Of Outputs	2 digital (relay) switch:
Continuous Output Current	8 A
Memory Capacity	4 MB
Output Voltage	12...127 V DC motor: 90...220 V AC motor:
Protection Type	ANSI 50/51 : overcurrent ANSI 50N/51N : earth fault ANSI 67 : directional phase overcurrent ANSI 67N : directional earth fault ANSI 47 : negative sequence overvoltage ANSI 27 : undervoltage ANSI 59 : overvoltage ANSI 59N : neutral voltage displacement ANSI 37 : phase undercurrent
Product Or Component Type	MV switch controller
Irms Rated Making Capacity	15 A during 4 s
Measurement Current	5-5 A 1-1 A
Maximum Switching Voltage	440 V AC
Number Of Inputs	8 digital conforming to IEC 61131-2 type 3
[Us] Rated Supply Voltage	12...48 V DC +/- 20 %
Communication Port Protocol	IEC 60870-5-104
Power Consumption In Va	2 VA
Software Function	assistance in commissioning and operating the installation security/authority verification alarm event log Operating/Status report reports and diagrams
Control Type	illuminated push-button status:
Data Recording	sag and swell logs harmonics logs min/max of instantaneous values demand values event logs sequence of event recording counter current value before fault
Breaking Capacity	2000 VA
Analogue Input Type	current 0.01...35 A (impedance 0.001 Ohm)4 x
Type Of Measurement	current: class 0.5 voltage: class 0.5 energy: class 1 conforming to IEC 61557-12
Synchronisation Time Between Inputs	1 ms
Power Quality Analysis	voltage unbalance individual harmonics voltage sag and swell detection harmonic distortion voltage magnitude
Country of Origin	France
Width	45 mm
Height	140 mm
Weight	0.515 kg
Range Of Product	PowerLogic T300
Device Short Name	SC150
Product Certifications	CE
Ik Degree Of Protection	IK07 conforming to IEC 62262
Ambient Air Temperature For Operation	-40-70 °C
Height	140 mm
Standards	IEC 60255-27 IEC 61557-12 IEC 62586-1 IEC 61000-4-30:class S IEC 61850
Electromagnetic Compatibility	electrical fast transient/burst immunity test - test level: level 4 criteria A conforming to IEC 61000-4-4 conducted RF disturbances - test level: level 3 criteria A conforming to IEC 61000-4-6 conducted disturbance emission - test level: level 4 criteria A conforming to IEC 61000-4-16 100 kHz damped oscillating wave - test level: level 3 criteria A conforming to IEC 61000-4-12 radiated radio-frequency electromagnetic field immunity test - test level: level 4 criteria A conforming to IEC 61000-4-3 immunity to voltage dips criteria A conforming to IEC 61000-4-29 electrostatic discharge - test level: level 4 criteria B conforming to IEC 61000-4-2 surge immunity test - test level: level 3 criteria A conforming to IEC 61000-4-5 magnetic field at power frequency - test level: level 5 criteria B conforming to IEC 61000-4-8 conducted and radiated emissions class A conforming to EN 55022
Net Weight	0.515 kg
Fixing Mode	clip-in (DIN rail)
Ambient Air Temperature For Storage	-40-85 °C
Relative Humidity	5-95 % conforming to IEC 60068-2-30
Ip Degree Of Protection	IP2X body: conforming to IEC 60529 IP4X front: conforming to IEC 60529
Type Of Installation	indoor outdoor in cabinet
Mechanical Robustness	vibrations 10-2000 Hz 1 gn 10 cycles conforming to IEC 60068-2-6 bumps 10 gn 16 ms 1000 bumps non energized conforming to IEC 60068-2-29 shocks 10 gn 11 ms 3 pulses in operation conforming to IEC 60068-2-27
Width	45 mm
Depth	140 mm
Operating Altitude	6561.68 ft (2000 m)
