EMS59150

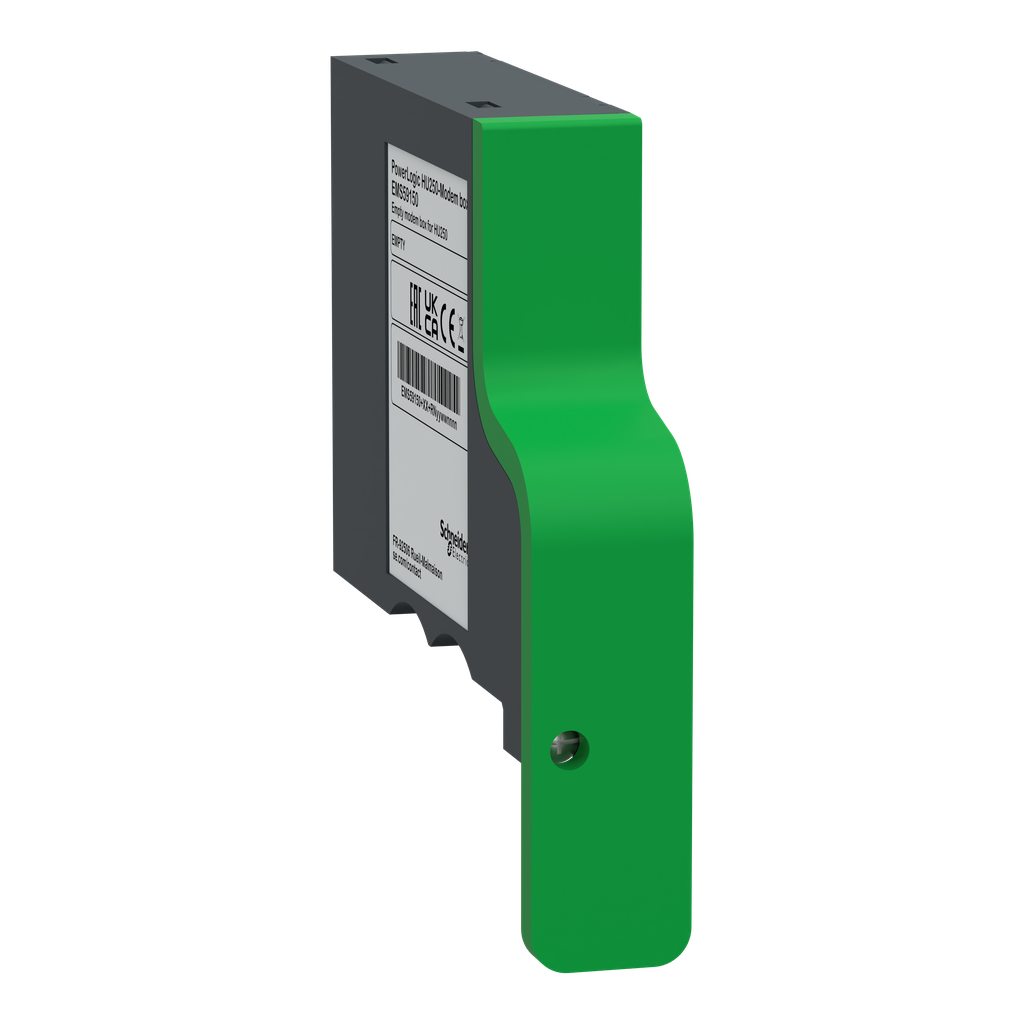

PowerLogic HU250 empty box for modem connector protection
This empty modem box is dedicated for the communication module Head Unit HU250 of the Easergy T300. The degree of protection is IK07. It complies with CE. The operating temperature is -40°C to + 85°C. The storage temperature is -40°C to + 85°C. Mechanical dimensions are 30 mm in height, 115 mm in width and 133 mm in depth.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | CE |
|---|---|
| Ik Degree Of Protection | IK07 conforming to IEC 62262 |
| Ambient Air Temperature For Operation | -40-85 °C |
| Height | 30 mm |
| Net Weight | 0.105 kg |
| Fire Resistance | 850 °C |
| Ambient Air Temperature For Storage | -40-85 °C |
| Relative Humidity | 95-95 % conforming to IEC 60068-2-30 |
| Width | 115 mm |
| Depth | 133 mm |
| Operating Altitude | 6561.68 ft (2000 m) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1605007_V2 |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1605007_V3 |
| Eu Rohs Directive | Compliant with Exemptions |
| Country of Origin | Estonia |
| Width | 115 mm |
| Height | 30 mm |
| Weight | 0.105 kg |
| Range Of Product | PowerLogic T300 |
| Product Or Component Type | empty modem box |
| Device Short Name | HU250-EB |
