EMS58588

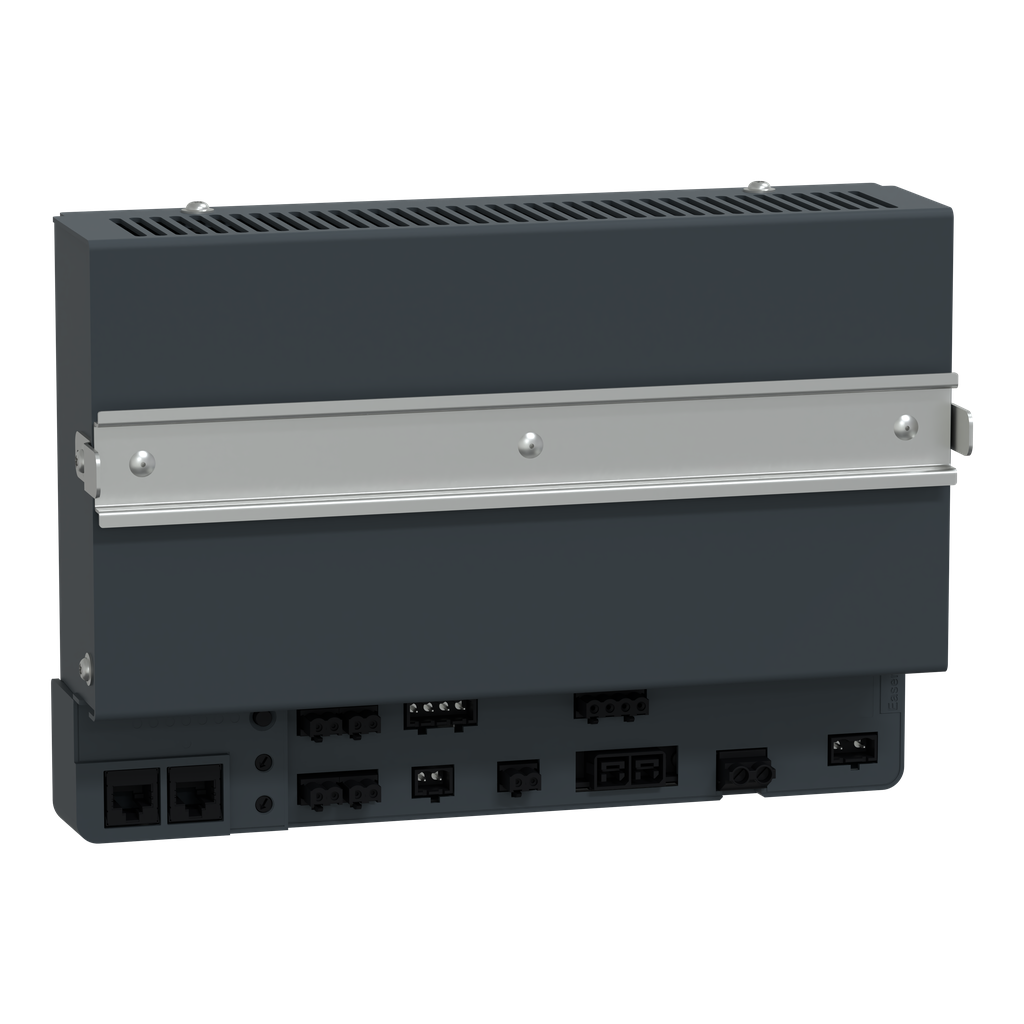

Easergy PS50-48V: Power supply and battery charger 12V and 48V outputs
The Easergy T300 backup power supplies are designed for long power supply interruption and to maintain control and monitoring of the entire MV substation during outages. Designed for 50Hz or 60Hz networks, supply voltage can range from 110 to 220VDAC or 90 to 264VAC. This product can be installed on DIN rail. The operating temperature is -40°C to + 70°C. The storage temperature is -40°C to + 70°C. This device has 1 digital relay output for battery fault signalling, and 1 digital relay output for main presence. Complient to standards IEC 60255-27, CE certification. Communication enabled with a RS485 serial port and the Modbus port protocol. Mechanical dimensions are 190 mm in height, 270 mm in width and 71 mm in depth.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Output Voltage |
|
|---|---|
| Number Of Outputs |
|
| Product Or Component Type | power supply |
| Autonomy | 16 h |
| Charging Time | 24 h |
| Communication Port Support | RS485 |
| Rated Short-Duration Power Frequency Withstand Voltage | 10 kV 50 Hz 1 min |
| [Us] Rated Supply Voltage |
|
| Communication Port Protocol | Modbus |
| Input Voltage Limits | 440 V AC/DC L-N) |
| Surge Withstand | 20 kV 1.2/50 µs |
| Protection Type |
|
| Battery Capacity |
|
| Product Compatibility |
|
| Country of Origin | Czechia |
| Width | 270 mm |
| Height | 190 mm |
| Weight | 2.75 kg |
| Range Of Product | Easergy T300 |
| Device Short Name | PS50 |
| Product Certifications | CE |
| Ik Degree Of Protection | IK07 conforming to IEC 62262 |
| Height | 190 mm |
| Standards | IEC 60255-27 |
| Mounting Support | DIN rail |
| Electromagnetic Compatibility |
|
| Ambient Air Temperature For Operation | -40-70 °C |
| Net Weight | 2.75 kg |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Relative Humidity | 5-95 % conforming to IEC 60068-2-30 |
| Mechanical Robustness |
|
| Operating Position | vertical |
| Width | 270 mm |
| Overvoltage Category | IV |
| Depth | 71 mm |
| Operating Altitude | 6561.68 ft (2000 m) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1605007_V2 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1605007_V3 |
| Eu Rohs Directive | Compliant |
