EMS58183

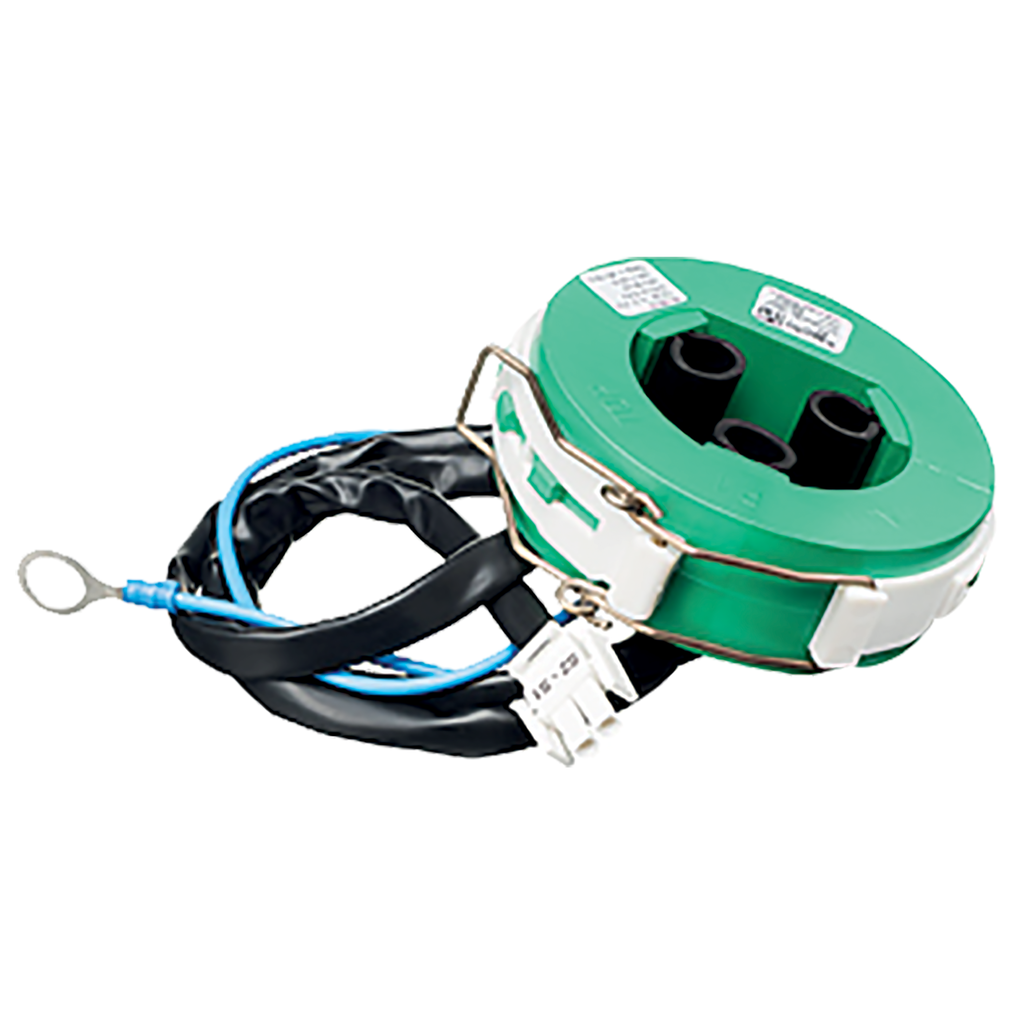

Kit 3 PowerLogic SCTR500-1 500/1 class 1 Current Transformers (KSCTR500-1)
This current transformer, has a line rated current of 500 A and a secondary current rating of 1 A. This current transformer allow a maximum cable outer diameter of 110 mm. rated power and accuracy class as follows: class 1 rated power: 1.5 VA.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Primary Voltage Limit | < 720 V |
|---|---|
| Height | 35 mm |
| [Uimp] Rated Impulse Withstand Voltage | 5 kV |
| Mounting Support | cables |
| [Ithe] Conventional Enclosed Thermal Current | 600 A |
| [Ith] Conventional Free Air Thermal Current | 50 kA 1 s |
| Safety Factor | 9 |
| Rated Power In Va | 1.5 VA |
| Load Impedance Ohmic | 1.5 Ohm |
| Connector Type | AMP connector |
| Dynamic Withstand Current | 2.5 x Ith |
| [Ui] Rated Insulation Voltage | 5 kV 1 min |
| [Uoc] Open Circuit Voltage |
|
| Protection Type | surge arrester |
| Product Compatibility |
|
| Cable Outer Diameter | 30-40 mm |
| Diameter | outer 110 mm |
| Country of Origin | Tunisia |
| Height | 35 mm |
| Network Frequency | 50/60 Hz |
| Secondary Current | 1 A |
| Range Of Product |
|
| Standards | IEC 61869 |
| Primary Operational Current | 500 A |
| Product Or Component Type | current transformer |
| Current Transformer Ratio | 500/1 |
| Accuracy Class | class 1 |
| Current Transformer Type | split core |
| Device Short Name | SCTR500-1 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1605007_V2 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1605007_V3 |
| Eu Rohs Directive | Compliant |
| Ik Degree Of Protection | IK07 conforming to IEC 62262 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Environmental Characteristic | 3C1 IEC 60721-3-3 |
| Ip Degree Of Protection | IP30 conforming to IEC 60529 |
| Relative Humidity |
|
