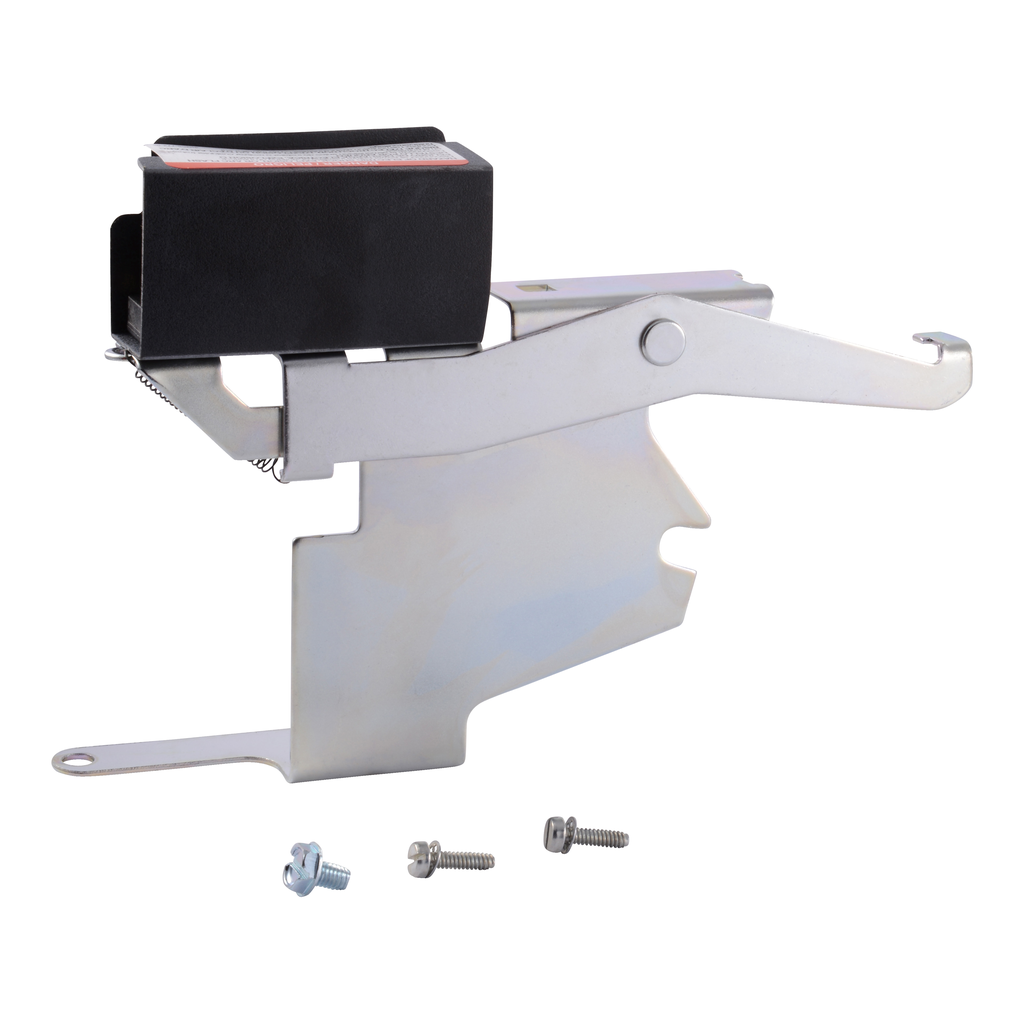

Interlock, safety switch, 2 x NO, 2 x NC contact, general duty series F 100A to 200A rated or heavy duty series F5/F6/F7
Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. They also come with many field installable or factory installed accessories. This electrical interlock for switches rated 100A to 200A comes in kit form for field installation. A pivot arm operates from switch mechanism, breaking the control circuit before the main switch blades break. Each kit contains instructions for proper field mounting. It is UL listed.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Or Component Type | interlock |
|---|---|
| Product Destination | safety switch |
| Warranty | 18 months |
| Product Certifications | UL Listed |
| Height | 4.346 in |
| Switch Function | DPDT |
| Width | 7.263 in |
| Depth | 1.48 in |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1304031 |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
