Interlock, safety switch, 2 x NO, 2 x NC contact, general duty fusible series F 60A or heavy duty series F5/F6

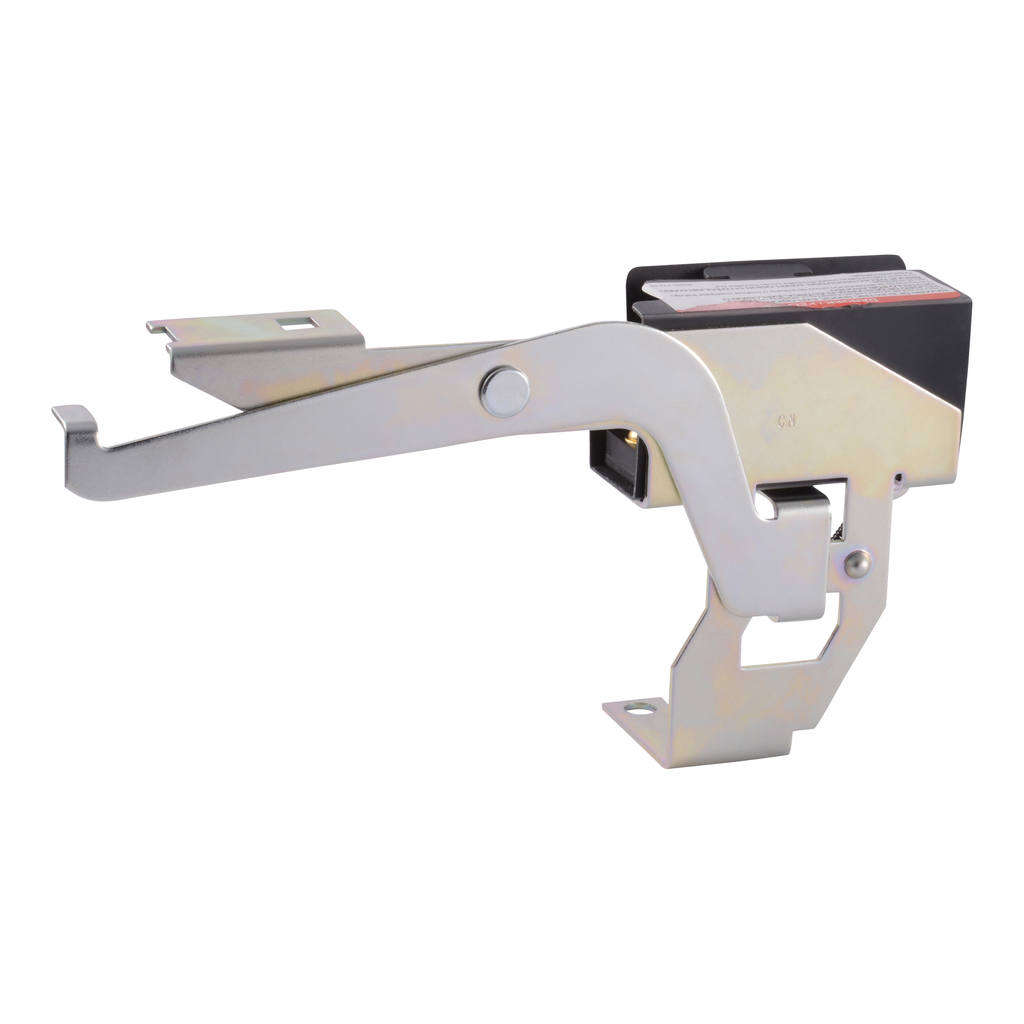

Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. They also come with many field installable or factory installed accessories. This electrical interlock for switches rated 30A to 60A comes in kit form for field installation. A pivot arm operates from switch mechanism, breaking the control circuit before the main switch blades break. Each kit contains instructions for proper field mounting. It is UL listed.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Or Component Type | interlock |
|---|---|
| Product Destination | safety switch |
| Warranty | 18 months |
| Product Certifications | UL Listed |
| Switch Function | DPDT |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1304031 |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Documents
- Spec Sheet
- Digest Catalog 03: Safety Switches - 0100CT1901_SEC-03 (pdf)
- Square D Enclosed Safety Switches Catalog - 3100CT1602 (pdf)
- Supplemental Digest 02: Safety Switches (MAY 2023) - SD_0100CT1902_SEC-02 (pdf)
- Square D Safety Switches Brochure - 3100BR9801 (pdf)
- F Series Safety Switches—Neutral Assembly Replacement Instructions - files (pdf)
- Electrical Interlock Kit EIK031 and EIK032 Installation Instructions - 40272-262-03 (pdf)
