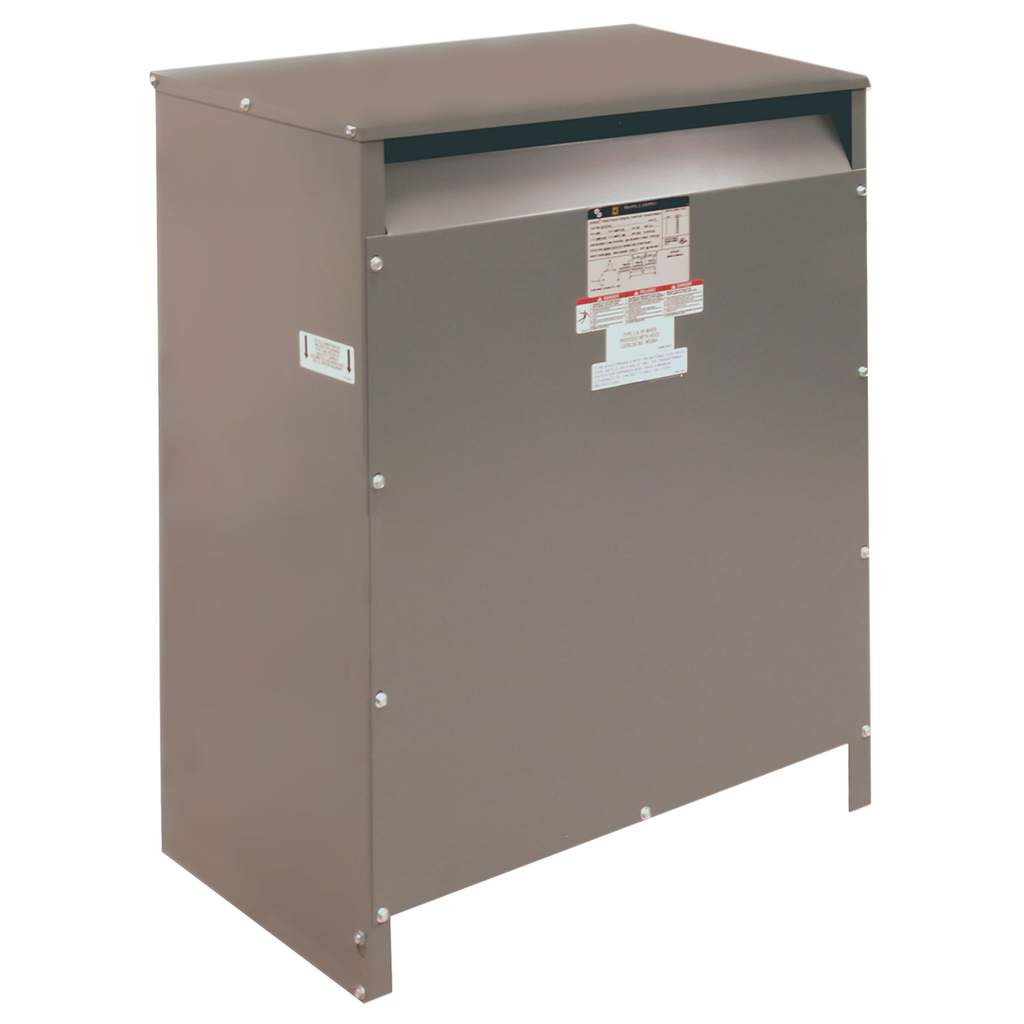

EE100S60H
Transformer, dry type, DOE 2016, 100kVA, 1 phase, 208V primary, 120/240V secondary, 22D, 150C rise
Specifications
| Country of Origin | United States |
|---|---|
| Primary Voltage | 208 V |
| Nema Degree Of Protection | NEMA 2 |
| Secondary Voltage | 120/240 V |
| Temperature Rise | 150 °C |
| Number Of Tap-Offs | 2 5 % FCBN |
| Product Or Component Type | Energy Efficient Transformer |
| Phase | 1 phase |
| Material | aluminium |
| Rated Power In Va | 100 kVA |
| Box Number | 22D |
| Insulation Temperature | 220 °C |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1311012EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Warranty | 18 months |
