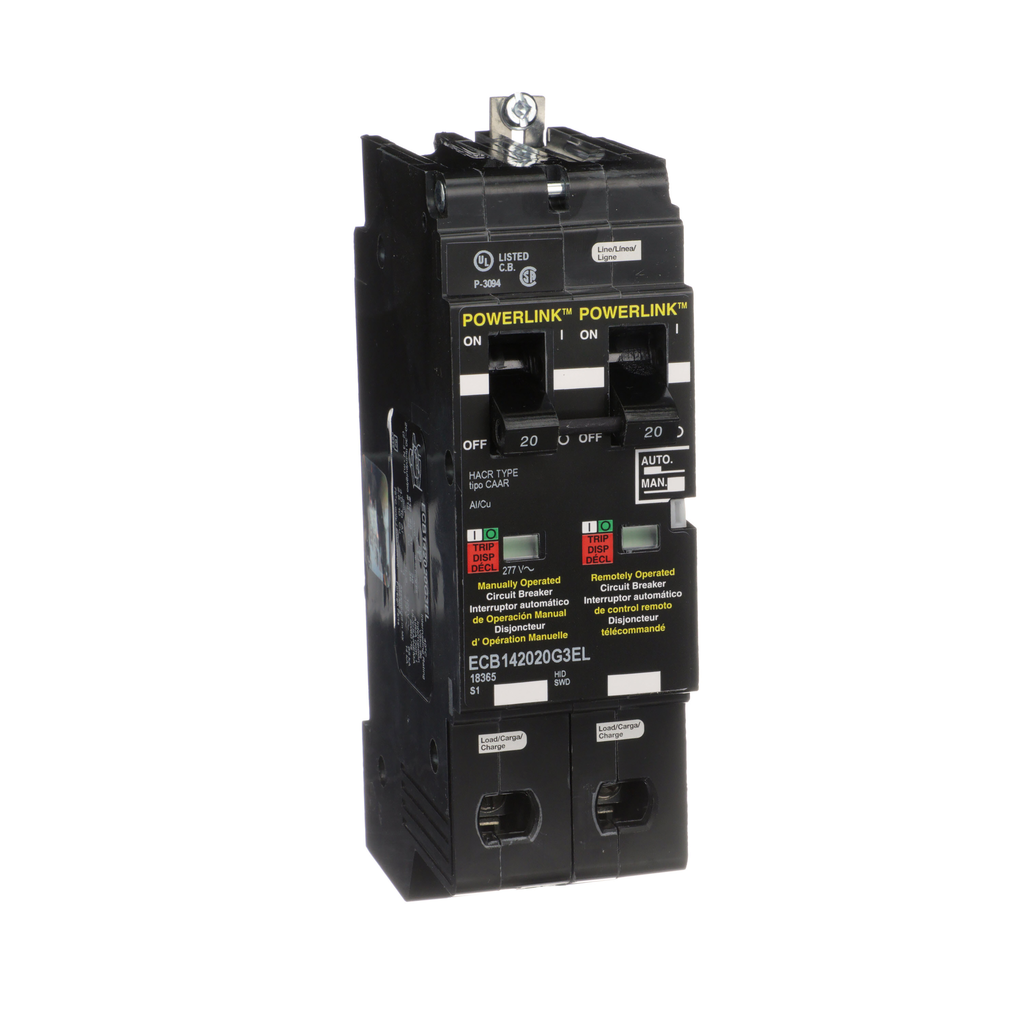

ECB142020G3EL - Circuit Breaker, PowerLink™, 20A, 2 pole, 480Y/277VAC, 14kA, remotely operated, bolt on mount, emergency lighting

ECB142020G3EL

Circuit Breaker, PowerLink™, 20A, 2 pole, 480Y/277VAC, 14kA, remotely operated, bolt on mount, emergency lighting

This Schneider Electric OsiSense electronic pressure switch has a 4 digit 7-segment display, hysteresis switching mode. It has a pressure rating of -1 bar. It has a supply voltage of 24Vdc and 2 x solid state outputs (pnp). 0High accuracy for more stable control on your critical processes. With the clear LED display, reading the current value and threshold.is simple.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Ambient Air Temperature For Operation	40 °C
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive	Compliant with Exemptions
Product Certifications	CSA UL Listed
Number Of Spaces Required	2
Mounting Mode	bolt-on
Poles Description	1P
Electrical Connection	bolted connection
Line Rated Current	20 A
Awg Gauge	AWG 10...AWG 8 aluminium AWG 12...AWG 8 copper
Breaking Capacity	14 kA 480Y/277 V AC 65 kA 240 V AC
[Ue] Rated Operational Voltage	480Y/277 V AC
Country of Origin	Mexico
Trip Unit Technology	thermal-magnetic, standard, LI
Range Of Product	Powerlink
Circuit Breaker Type	ECB-G3
Accessory / Separate Part Type	motor for circuit-breaker 24 V DC
Product Or Component Type	circuit breaker
Circuit Breaker Application	HID rated HACR rated Switching Duty rated

Circuit Breaker, PowerLink™, 20A, 2 pole, 480Y/277VAC, 14kA, remotely operated, bolt on mount, emergency lighting
