E3SUPS20KFBS

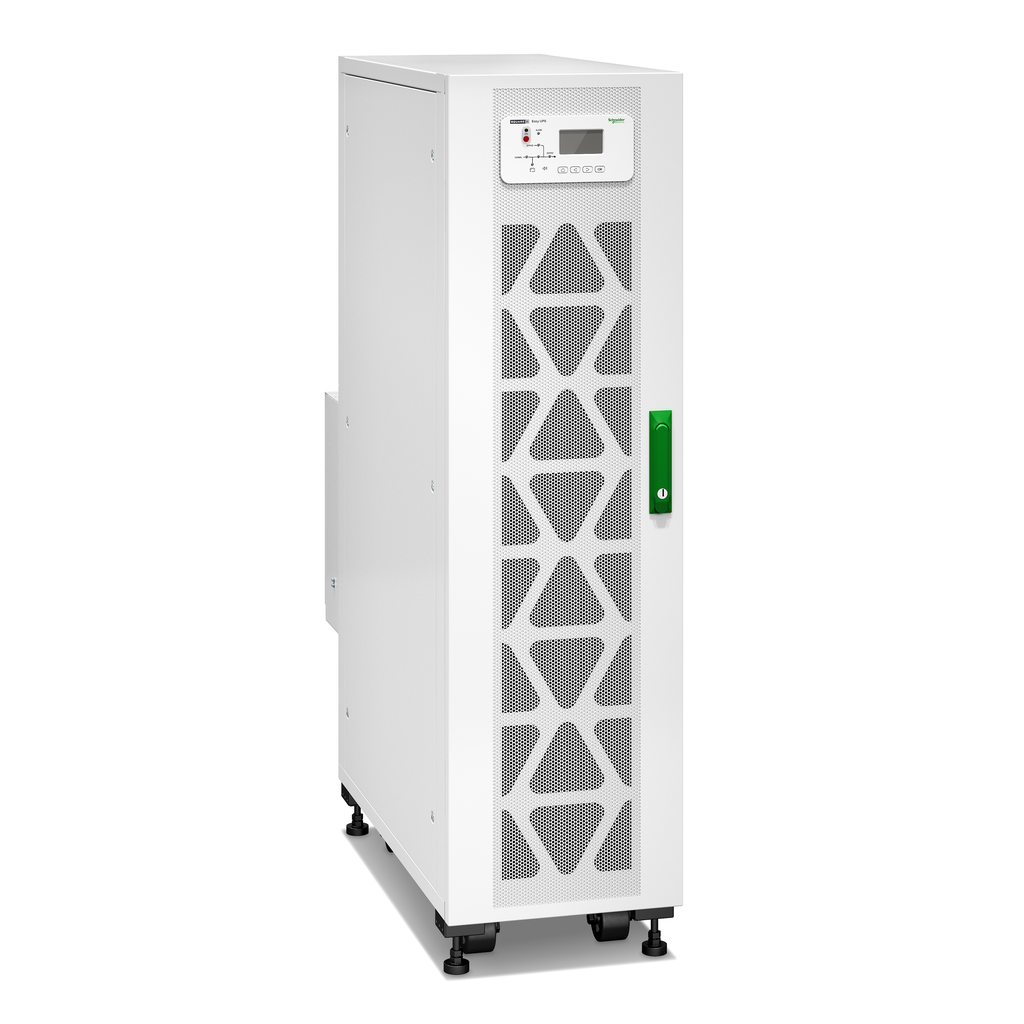

Easy UPS 3S 20 kVA 208V 3:3 UPS for internal batteries, Start-up 5x8
High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 20 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. Includes 5x8 start-up service.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 1 year on-site repair or replace with factory authorized Start-Up |
| Control Panel | Touch Screen LCD User Interface |
| Rohs Exemption Information | Yes |
| Environmental Disclosure | ENVPEP2111020 |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI2111020 |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 140 cm |
| Net Weight | 132 kg |
| Color | White RAL 9003) |
| Width | 38 cm |
| Depth | 96 cm |
| Input Frequency | 40 - 70 Hz |
| Maximum Short Circuit Withstand (Icw) | 10 kA |
| Bypass Type | Built-in Static Bypass |
| Maximum Short-Circuit Current | 10 kA |
| Battery Voltage | +/- 120 V |
| Battery Type | internal modular battery |
| Storage Relative Humidity | 0-95 % non-condensing |
| Ambient Air Temperature For Operation | 0-40 °C |
| Storage Altitude | 0-15000 m |
| Ip Degree Of Protection | IP20 |
| Ambient Air Temperature For Storage | -15-40 °C |
| Online Thermal Dissipation | 1400 W |
| Relative Humidity | 0-95 % non-condensing |
| Acoustic Level | 68 dBA |
| Operating Altitude | 0...4921 ft |
| Lead Time | Usually Ships within 2 Weeks |
| Presentation | High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 20 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. Includes 5x8 start-up service. |
| Width | 38 cm |
| Height | 140 cm |
| Weight | 132 kg |
| Other Input Voltages | 220 V |
| Range Of Product | Easy UPS 3S |
| Product Or Component Type | uninterruptible power supply (UPS) |
| Rated Power In Va | 20 kVA |
| Provided Equipment |
|
| Main Input Voltage | 208 V 3 phase |
| Kw Rating | 20 kW |
| Other Output Voltages | 220 V |
